Product Details:
Payment & Shipping Terms:
|
| Material: | Alloy Steel | Shank: | H22x108mm, H25x159mm |
|---|---|---|---|
| Type: | Tapered Drilling Tools | Length: | 600mm-8000mm |
| Usage: | Small Hole Drilling | Color: | Black Or Customised |
| Bit Dia.: | 22mm (7/8"), 25mm (4 1/4") | Advantage: | OEM |
| Processing Type: | Forging | Tapered Degree: | 7, 11, 12 Degree |
| High Light: | h25 tapered drill rod,h22 tapered drill rod,600mm tapered drill rod |
||
Description

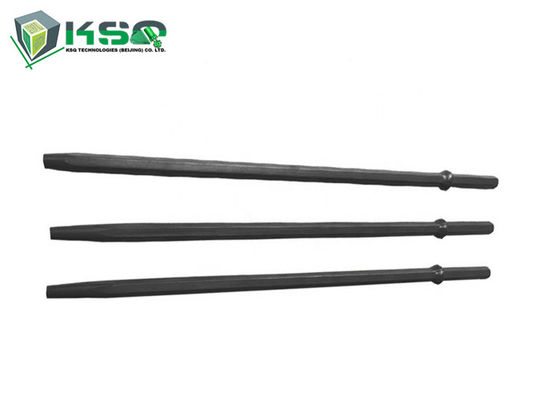

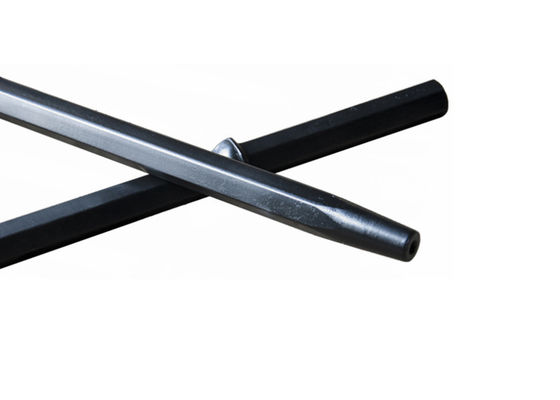

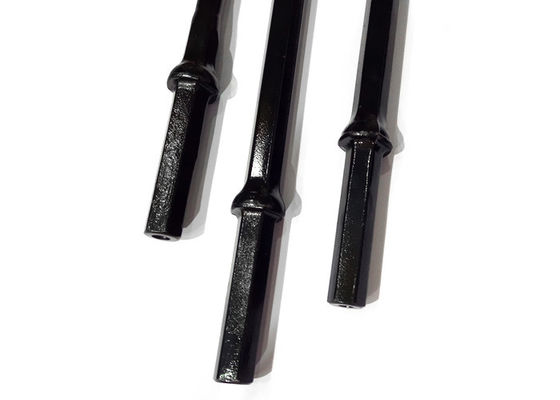

Tapered drill rod,another name called taper rod, tapered drill steels, This provides a hexagonal chuck section to provide leverage for the rotation chuck bushing. It usually has a forged collar to maintain the proper shank striking face position in the rock drill, and a tapered bit end.
Applications
• Dimensional Stone Quarrying Industry
• Underground Mining
• Tunneling
Specification
| Hex Tapered Rod | Length | Weight | Product Code | |
| mm | ft | kg | ||
| 7° Hex Tapered Rod Shank 22x108mm (7/8"x4 1/4") | 600 | 2 | 1.93 | H22-7D-600 |
| 800 | 2 5/8 | 2.54 | H22-7D-800 | |
| 1000 | 3 2/7 | 3.15 | H22-7D-1000 | |
| 1200 | 3 8/9 | 3.76 | H22-7D-1200 | |
| 1500 | 4 8/9 | 4.68 | H22-7D-1500 | |
| 1600 | 5 1/4 | 4.98 | H22-7D-1600 | |
| 1800 | 5 8/9 | 5.59 | H22-7D-1800 | |
| 2000 | 6 5/9 | 6.2 | H22-7D-2000 | |
| 2200 | 7 2/9 | 6.81 | H22-7D-2200 | |
| 2300 | 7 5/9 | 7.12 | H22-7D-2300 | |
| 2400 | 7 7/8 | 7.42 | H22-7D-2400 | |
| 2500 | 8 1/5 | 7.73 | H22-7D-2500 | |
| 2600 | 8 5/9 | 8.03 | H22-7D-2600 | |
| 3000 | 9 5/6 | 9.25 | H22-7D-3000 | |
| 3500 | 11 1/2 | 10.78 | H22-7D-3500 | |
| 4000 | 13 1/8 | 12.3 | H22-7D-4000 | |
| 4500 | 14 3/4 | 13.83 | H22-7D-4500 | |
| 5000 | 16 2/5 | 15.35 | H22-7D-5000 | |
| 5500 | 18 | 16.88 | H22-7D-5500 | |
| 6000 | 19 2/3 | 18.3 | H22-7D-6000 | |
| 7° Hex Tapered Rod Shank 25x159mm (1"x6 1/4") | 4000 | 13 1/8 | 16.1 | H25-7D-4000 |
| 4700 | 15 3/7 | 18.9 | H25-7D-4700 | |
| 5000 | 16 2/5 | 22.1 | H25-7D-5000 | |
| 5500 | 18 | 22.1 | H25-7D-5500 | |
| 6000 | 19 2/3 | 24.1 | H25-7D-6000 | |
| Hex Tapered Rod | Length | Weight | Product Code | |
| mm | ft | kg | ||
| 11° Hex Tapered Rod Shank 22x108mm (7/8"x4 1/4") | 610 | 2 | 2.2 | H22-11D-610 |
| 1220 | 4 | 4.1 | H22-11D-1220 | |
| 1830 | 6 | 5.9 | H22-11D-1830 | |
| 2000 | 6 5/9 | 6.4 | H22-11D-2000 | |
| 2435 | 8 | 7.8 | H22-11D-2435 | |
| 2600 | 8 5/9 | 8.3 | H22-11D-2600 | |
| 3200 | 10 1/2 | 10.1 | H22-11D-3200 | |
| 3655 | 12 | 11.5 | H22-11D-3655 | |
| 4000 | 13 1/8 | 12.6 | H22-11D-4000 | |
| 4800 | 15 3/4 | 14.9 | H22-11D-4800 | |
| 5600 | 18 3/8 | 17.4 | H22-11D-5600 | |
| 6400 | 21 | 19.8 | H22-11D-6400 | |
| 7200 | 23 5/8 | 22.2 | H22-11D-7200 | |
| 8000 | 26 1/4 | 24.6 | H22-11D-8000 | |
| Hex Tapered Rod | Length | Weight | Product Code | |
| mm | ft | kg | ||
| 12° Hex Tapered Rod Shank 22x108mm (7/8"x4 1/4") | 610 | 2 | 2.2 | H22-12D-610 |
| 1220 | 4 | 4.1 | H22-12D-1220 | |
| 1830 | 6 | 5.9 | H22-12D-1830 | |
| 2000 | 6 5/9 | 6.4 | H22-12D-2000 | |
| 2435 | 8 | 7.8 | H22-12D-2435 | |
| 2600 | 8 5/9 | 8.3 | H22-12D-2600 | |
| 3200 | 10 1/2 | 10.1 | H22-12D-3200 | |
| 3655 | 12 | 11.5 | H22-12D-3655 | |
| 4000 | 13 1/8 | 12.6 | H22-12D-4000 | |
| 4800 | 15 3/4 | 14.9 | H22-12D-4800 | |
| 5600 | 18 3/8 | 17.4 | H22-12D-5600 | |
| 6400 | 21 | 19.8 | H22-12D-6400 | |
| 7200 | 23 5/8 | 22.2 | H22-12D-7200 | |
| 8000 | 26 1/4 | 24.6 | H22-12D-8000 | |
| 12° Hex Tapered Rod Shank 25x159mm (1"x6 1/4") | 1830 | 6 | 7.96 | H25-12D-1830 |
| 2435 | 8 | 10.38 | H25-12D-2435 | |
| 3050 | 10 | 12.84 | H25-12D-3050 | |
| 3655 | 12 | 15.26 | H25-12D-3655 | |
| 3965 | 13 | 16.5 | H25-12D-3965 | |
| 4270 | 14 | 17.72 | H25-12D-4270 | |
| 4880 | 16 | 20.16 | H25-12D-4880 | |
| 5530 | 18 1/7 | 22.76 | H25-12D-5530 | |
| 6095 | 20 | 25.02 | H25-12D-6095 | |
