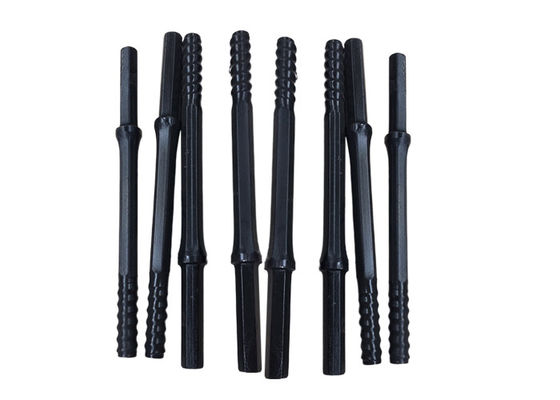

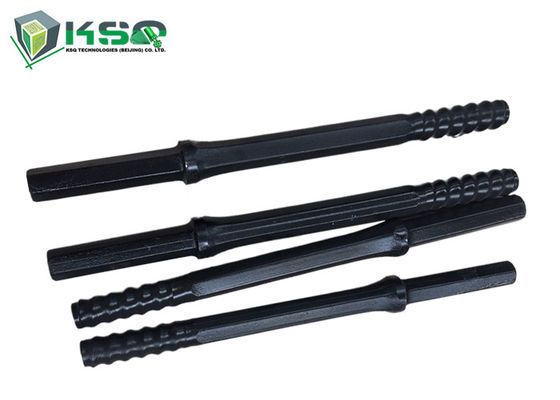

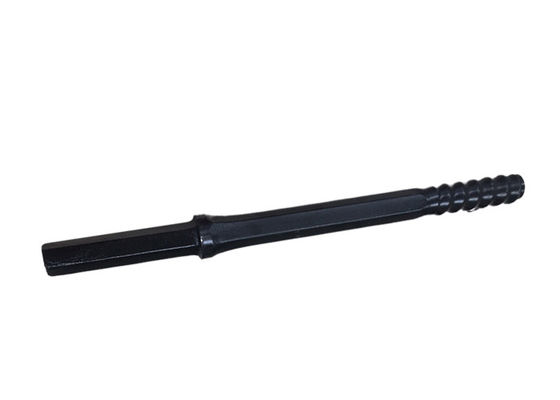

Shank H22x108mm Or H25x159mm R25 Threaded Shank End Rod

Large Image : Shank H22x108mm Or H25x159mm R25 Threaded Shank End Rod

Product Details:

Place of Origin:	China
Brand Name:	MIROC
Certification:	ISO
Model Number:	R25 Shank End Rod

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	Standrad export packaging or customized
Delivery Time:	15-20 days
Supply Ability:	20000pcs per month

Contact Now

Detailed Product Description

Material:	Alloy Steel	Shank:	H22x108mm, H25x159mm
Type:	Threaded Drilling Tools	Length:	610mm-3600mm
Usage:	Small Hole Drilling	Color:	Black Or Customised
Bit Dia.:	22mm (7/8"), 25mm (4 1/4")	Advantage:	OEM
Processing Type:	Forging	Thread Connection:	R25
Highlight:	h22x108mm threaded drill rod , h25x159mm threaded drill rod , r25 threaded drill rod

Description

Shank end rod with R25 thread system, are connced to R25 couple, extention rod or speed rod.

Features:
1. High-grade raw material
2. Manufactured from high-grade steel and processed using state-of-the-art CNC machinery
and heat treatment
3. High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance.

Application:
• Underground Mining
• Drifting and Tunneling
• Benching and long hole drilling
• Quarrying
• On drilling machines equipped with automatic rod changer

Specifications:

Shank End Rod	Length		Diameter		Weight	Product Code
Shank End Rod	mm	ft	mm	inch	kg	Product Code
R25 Shank End Rod Hex 22 Shank 22mm x 108mm (7/8" x 4 1/4")	610	2	22	7/8	2.6	DRH22-R25-610
	760	2 1/2	22	7/8	2.9	DRH22-R25-760
	1000	3 2/7	22	7/8	3.7	DRH22-R25-1000
	1220	4	22	7/8	4.4	DRH22-R25-1220
	1830	6	22	7/8	6.3	DRH22-R25-1830
	2435	8	22	7/8	8.1	DRH22-R25-2435
	3200	10 1/2	22	7/8	10.6	DRH22-R25-3200
	3600	11 4/5	22	7/8	12	DRH22-R25-3600
R25 Shank End Rod Hex 25 Shank 25mm x 159mm (1" x 6 1/4")	2700	8 6/7	25	1	11.3	DRH25-R25-2700
R25 Shank End Rod Hex 25 Shank 25mm x 159mm (1" x 6 1/4")	3200	10 1/2	25	1	13.7	DRH22-R25-3200
