3 Inch High Pressure Cop32 85mm To 105mm Dth Drill Bit

3 Inch High Pressure Cop32 85mm To 105mm Dth Drill Bit
3 Inch High Pressure Cop32 85mm To 105mm Dth Drill Bit 3 Inch High Pressure Cop32 85mm To 105mm Dth Drill Bit 3 Inch High Pressure Cop32 85mm To 105mm Dth Drill Bit

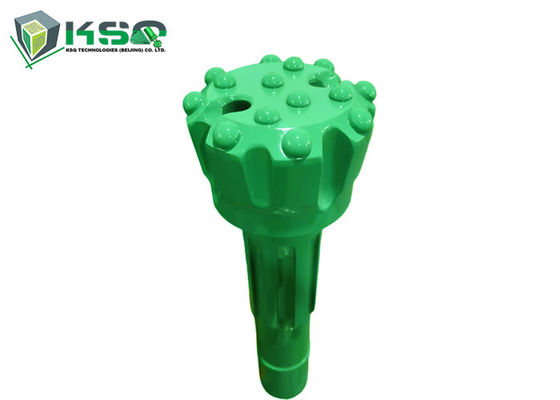

Large Image :  3 Inch High Pressure Cop32 85mm To 105mm Dth Drill Bit

Product Details:

Place of Origin: China
Brand Name: MIROC
Certification: ISO
Model Number: COP32-95mm DTH Drill Bit

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Standrad export packaging or customized
Delivery Time: 15-20 days
Supply Ability: 2000pcs per month
Detailed Product Description
Material: Hign Manganese Steel Use: Well Drilling
Model Type: COP Face Design: Concave, Convex, Flat
Carbide Design: Dome, Parabolic, Ballistic Processing Type: Forging
Diameter: 85mm To 105mm Shank Type: COP32
High Light:

105mm dth drill bit

,

85mm dth drill bit

,

cop32 dth drill bit

Description

DTH bit is the tool cutting rocks, and subject to severe stress from the striking piston as well as from the abrasive cuttings passing the bit at high velocity. When selecting the right bit for optimum performance you have to balance penetration against bit life. On occasion you can successfully sacrifice bit life for penetration, remember the rule of thumb that states that a 10% increase in penetration covers at least a 20% loss in bit life.



Specification



Drill Bit Bit Dia. Spline Key Number Buttons (mm) NO. Air Holes Weight
mm inch Front Gauge (kg)
COP32 85 3 1/3 8 4x12 6x13 2 4.2
90 3 5/9 8 4x12 6x14 2 4.5
95 3 3/4 8 5x12 6x14 2 4.7
100 3 8/9 8 6x12 8x12 2 5.0
105 4 1/8 8 6x12 8x13 2 5.3



3 Inch High Pressure Cop32 85mm To 105mm Dth Drill Bit 0

3 Inch High Pressure Cop32 85mm To 105mm Dth Drill Bit 1
