Fully Carburized Dia 85mm / 87mm 14 Feet T60 Round Speed Rod For Bench Drilling

Fully Carburized Dia 85mm / 87mm 14 Feet T60 Round Speed Rod For Bench Drilling
Fully Carburized Dia 85mm / 87mm 14 Feet T60 Round Speed Rod For Bench Drilling Fully Carburized Dia 85mm / 87mm 14 Feet T60 Round Speed Rod For Bench Drilling Fully Carburized Dia 85mm / 87mm 14 Feet T60 Round Speed Rod For Bench Drilling Fully Carburized Dia 85mm / 87mm 14 Feet T60 Round Speed Rod For Bench Drilling

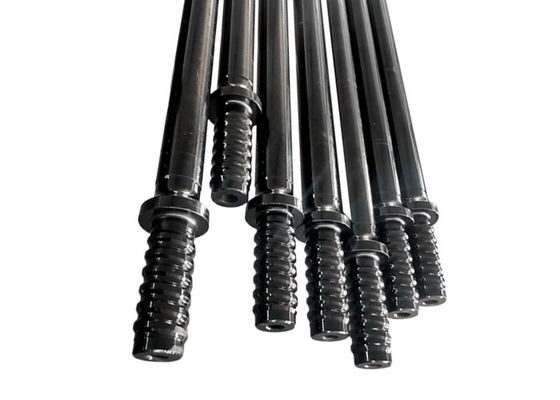

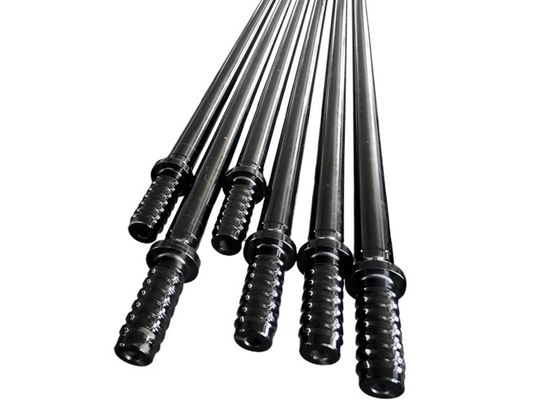

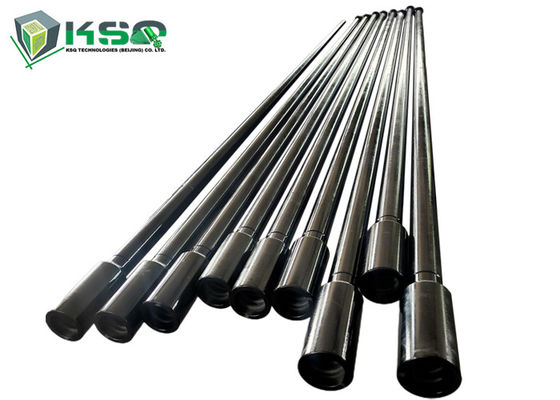

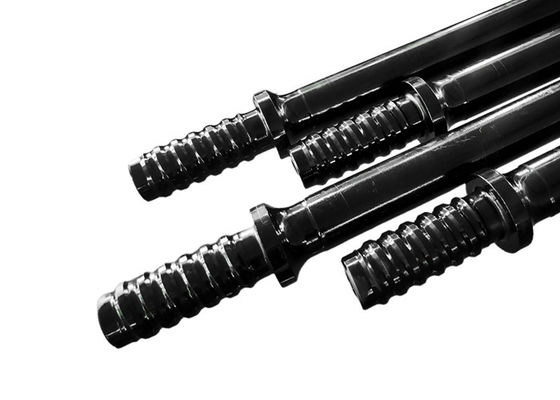

Large Image :  Fully Carburized Dia 85mm / 87mm 14 Feet T60 Round Speed Rod For Bench Drilling

Product Details:

Place of Origin: CHINA
Brand Name: MIROC
Certification: ISO
Model Number: T60 MF Threaded Drill Rod

Payment & Shipping Terms:

Minimum Order Quantity: 2 Pieces
Packaging Details: wooden box or steel box
Delivery Time: 10-20 days
Supply Ability: 1000000 Piece/Pieces per Month
Detailed Product Description
Thread: T60 Male-female Rod Type: MF
Shape: Round Application: Coal Mining,Quarry Drilling, Construction,Stone Drilling
Advantage: High Performance Color: Request
Usage: Drilling And Construction Transfer: Air/Sea/Express
High Light:

fully carburized speed rod

,

dia 85mm speed rod

,

14ft bench drilling speed rod

Fully Carburized Dia 85/87mm 14 Feet T60 Round Speedrod For Bench Drilling



Male/Male rod,Male/Female(M/F)Rod-Speed rod M/F drill steel is an alternative to couplings sleeves to include the female part of the threaded connection as an integral part of the drill steel. M/Fdrill steel provides more rigid connection sandiseasier toun couple and handle. The service life also tends to be better than with separate couplings.



Our drill rods are manufactured from premium, high-strength, alloy steel and are available in either hexagonal and round configurations. KSQ rods are developed and designed to give you straighter holes with less deviation and longer service life.



Fully Carburized Dia 85mm / 87mm 14 Feet T60 Round Speed Rod For Bench Drilling 0

T60 MF- Rod

Length Diameter Weight Part Number
mm foot mm inch kg
1525 5 85/87 3 3/7 35.5 4148301040
1830 6 85/87 3 3/7 43.8 4148301041
3050 10 85/87 3 3/7 68.3 4148301042
3660 12 85/87 3 3/7 80.0 4148301043
4270 14 85/87 3 3/7 83.5 4148301044
4880 16 85/87 3 3/7 94.5 4148301045
5530 18 1/7 85/87 3 3/7 108.5 4148301046
6095 20 85/87 3 3/7 120.0 4148301047



Competitive Advantage

• High-grade raw material
• Manufactured from high-grade steel and processed using state-of-the-art CNC machinery and heat treatment



Product name Tunnel drilling tools T60 MF rod for mining
Material Carbon steel
Process Forging
Application Ore mining and rock drilling
MOQ 2 piece
Length 4270mm,14feet.
Packaging Standard exporting packaging



Product Name: MF rods
Description:

MF rods

Thread drill rod made with best quality carbon steel bar,through heat treatment like Atlas.

Material: carbon steel bar
MOQ: No MOQ required for testing and trial order
Body Type Round shape and hexagonal type
Thread type R25,R28,R32,R38,T38,T45,T51
Diameter Hex25,Hex28,Rd32,Rd38,Rd45,Rd51
Type Thread extention Rod and MF rod
Length 600mm-6400mm



Fully Carburized Dia 85mm / 87mm 14 Feet T60 Round Speed Rod For Bench Drilling 1Fully Carburized Dia 85mm / 87mm 14 Feet T60 Round Speed Rod For Bench Drilling 2Fully Carburized Dia 85mm / 87mm 14 Feet T60 Round Speed Rod For Bench Drilling 3

KSQ Related Rock Drilling Tools

(1) Integral Drill Rod– chisel bit integral rod and plug hole integral drill steel,

Shank H19 x 108mm and H22 108mm.
(2) Tapered Rock Drill Tools - chisel bit, cross bit, button bit, drill rod of taper 7, 11, 12 degree
(3) Threaded Rock Drill Tools - button bit, retrac button bit, drop center button bit, dome bit, reaming bit,extension rod, MF-Rod, Hex rod, coupling sleeve, crossover coupling of thread R25, R28, R32, R38, T38, T45, T51, ST58, ST68,T60.
(4) Shank Adapters (Striking Bars) - equivalent to Atlas Copco, , Furukawa, Gardner Genver, Ingersoll Rand etc.
(5) Down-the-hole (DTH) Bits& Hammers - 3'', 4'', 5'', 6'', 8'' hammer and DTH button bit (diameter 80mm - 305mm)

Other products: Tricone bits, PDC bits, self- drilling hollow anchor bar etc.
