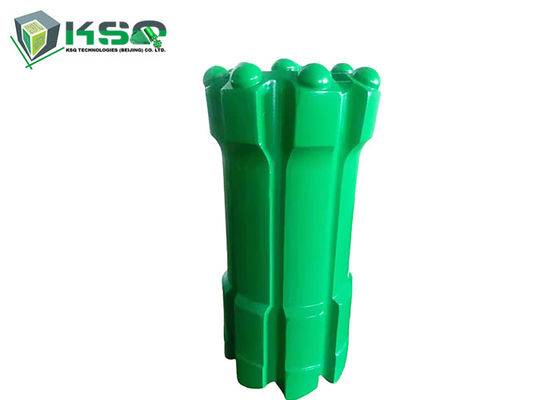

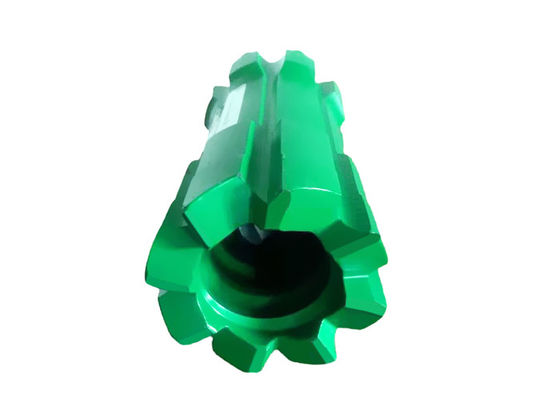

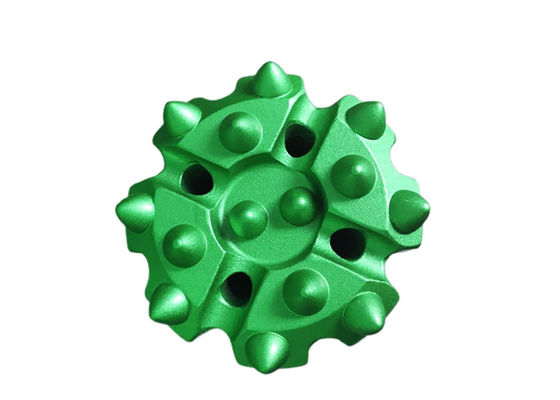

Retractable T51 89mm Tungsten Carbide Button Bit For Top Hammer Drilling

Retractable T51 89mm Tungsten Carbide Button Bit For Top Hammer Drilling
Retractable T51 89mm Tungsten Carbide Button Bit For Top Hammer Drilling Retractable T51 89mm Tungsten Carbide Button Bit For Top Hammer Drilling Retractable T51 89mm Tungsten Carbide Button Bit For Top Hammer Drilling

Large Image :  Retractable T51 89mm Tungsten Carbide Button Bit For Top Hammer Drilling

Product Details:

Place of Origin: China
Brand Name: MIROC
Certification: ISO
Model Number: T51 Thread Retrac Button Bit

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: customised
Delivery Time: 15-20 days
Supply Ability: 20000pcs per month
Detailed Product Description
Place Of Origin: China Type: Drill Bit
Processing Type: Forging Diameter: 70-102mm
Brand Name: MIROC Button Shape: Spherical, Ballistic, Conical
Material: Tungsten Carbide Color: Customised
High Light:

t51 retractable drill bit

,

89mm retractable drill bit

,

top hammer drilling retractabit

Retractable T51 89mm Tungsten Carbide Button Bit for Top Hammer Drilling



Application:

  • This type of bit is well known for its wear resistance on medium-hard to hard rock formations
  • Featuring spherical tungsten carbide inserts that is known to have strong configuration against carbide fracture
  • Widely used drifting and tunneling
  • Bit face design is ideal for medium-hard to hard rock formations



Specification as below:



T51 Retrac Button Bit Bit Dia. Buttons and Size (mm) Flushing Hole Weight Product Code
mm inch Front Gauge Front Side kg
Retrat Button Bit, Drop Center
Spherical Buttons, R11XX
89 3 1/2 3x11, 2x11 6x13 3 0 5.3 R1189-T51-S
Retrat Button Bit
Spherical Buttons, R12XX
89 3 1/2 4x13 8x13 2 0 5.3 R1289-T51-S
102 4 4x14 8x14 2 0 7.3 R12102-T51-S
Retrat Button Bit, Drop Center
Spherical Buttons, R13XX
89 3 1/2 4x11,1x11 8x13 4 0 5.3 R1389-T51-S-1
89 3 1/2 4x13,1x13 8x13 4 0 5.3 R1389-T51-S-2
102 4 4x13,1x13 8x14 4 0 7.3 R13102-T51-S-1
102 4 4x13,1x13 8x14 4 1 7.3 R13102-T51-S-2



Carbide Button Shape Selection:

1. Semi-Ballistic Buttons

2. Ballistic Button

3. Spherical Button

4. Two-step Button



Raw material:

Steel:

First class special alloy steel with high strength, heat resistance and wearable

Carbide
The best tungsten carbides from China are commonly applied.
Tungsten carbide from European is also available.

drill rock bit drop center face 76mm 89mm T38 T45 T51 GT60 T60 Thread Drill Bits 0
