Product Details:
Payment & Shipping Terms:
|
| Color:: | Blue, Green | Weight:: | 6-27kg |
|---|---|---|---|
| Model:: | YT27 Hand-operated Rock Drill | Usage:: | Ore, Mining, Quarrying, Drilling, |
| Drill Depth:: | 0.5-5m | Shank Size:: | Hex22x108mm |
| Type:: | With Airleg | Certification:: | SGS, SONCAP |
| Drilling Diameter:: | 34-42mm | ||
| High Light: | YT27 Hand Held Jack Hammer,Hand Held Jack Hammer YT27 |
||

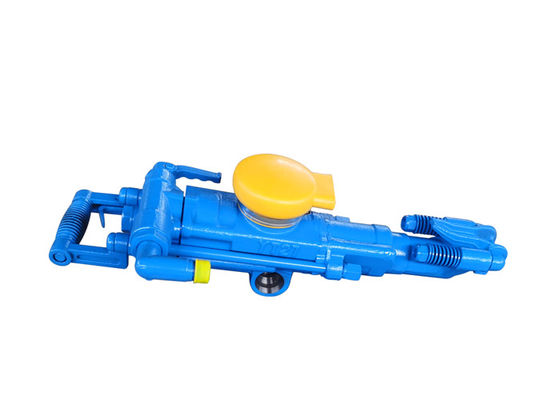

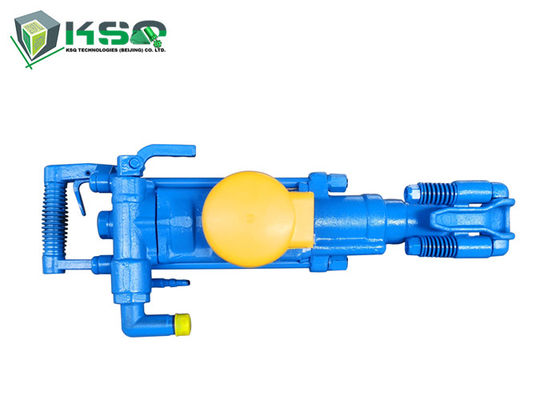

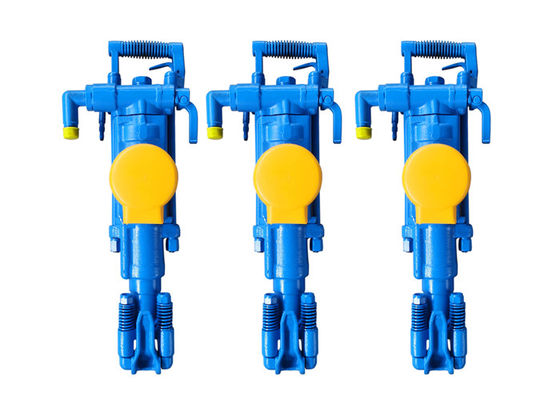

Jack Hammer Hand Held Pusher Leg Rock Drill YT27 For Construction Sites
Apoplication
The Products are mainly used in construction sites, various types of mines, railways, water conservancy construction and national defense construction areas for drilling operations.
YT27 Jack leg drill:
The YT27 rock drill machine is a kind of high efficiency air leg rock drill machinery.It is mainly used for blasting holes and other drilling works in a quarries, railway construction, water conservancy construction and defence project facility. It is suitable for drilling and blasting under various of rocks at any direction angles.Blast hole dia is 3-42mm,drill hole depth is 5 m.
This machine may match with Model FT160BD short air leg or Model FT160A long air leg.
This machine has transparent surface of FY200B oil reservoir to regulate oil.
YT27 pusher leg rock drill apply in hard rock on the rock drill operation,it has strong adaptability to the working conditions.The product is energy efficiency, Its components has long life and durable. The machice can be generally used with the same type,it can greatly reduce the customer loss for spare part replacement.
Description & Specification
| Product Name | YT27 Rock drill pneumatic rock drill |
| Description | The Series of pneumatic rock drills are mainly used in mines,railway,water irrigation works and quarrying works and quarrying works to drill hole or plug holes.It is suitable for wet or dry drilling in all kinds of rocks. |
| Drilling Direction | Hand-held type for Perpendicular;Air-leg type for titling direction |
| Advantage | Light weight;high efficiency,fast drilling velocity, low comsumption,convenient operation,long life part |
| MOQ | No requriement for testing and trial order |
| Spare Parts | Internal drill rod,plug hole rod,taper drill rod,thread drill rod,taper/thread drill bit |
Specification of pneumatic rock drill/ jack hammer / Hand-operated rock drill
| Hand Held Rock Drill | Y6 | Y8 | Y20 | Y24 | Y26 | YH24 |
| Weight (kg) | 6 | 8 | 18 | 24 | 26 | 24 |
| Air consumption (L/s) | ≤9.5 | 9.5 | 25 | 55 | ≤47 | 55 |
| Drill hole diameter (mm) | 20 | 20-24 | 34-42 | 34-42 | 34-42 | 34-42 |
| Max.drilling depth (mm) | 0.5 | 0.5 | 3 | 3 | 5 | 5 |
| Shank (mm) | 15X88 | 22x108 | 22x108 | 22x108 | 22x108 | 22x108 |
| Air-leg Rock Drill | YT19A | Y20LY | YT24 | YT27 | YT28 | YT29A |
| Weight (kg) | 18 | 18 | 24 | 24 | 26 | 26.5 |
| Air consumption (L/s) | 28 | ≤25 | ≤67 | ≤85 | ≤81 | ≤65 |
| Drill hole diameter (mm) | 34-42 | 34-42 | 34-42 | 34-42 | 34-42 | 34-45 |
| Max.drilling depth (mm) | 3 | 3 | 5 | 5 | 5 | 5 |
| Shank (mm) | 22x108 | 22x108 | 22x108 | 22x108 | 22x108 | 22x108 |
jack hammer | jack hammer | jack martelo | Jack Hammer | Presslufthammer | jack çekiç | Jack Hammer
