Product Details:
Payment & Shipping Terms:
|
| Applicable Industries: | Construction Works , Energy & Mining, Slope Protection | Material: | High Quality Carbide And Steel |
|---|---|---|---|
| Bit Diameter: | 26-42mm | Shank: | Hex22x108mm, Hex19mmx108mm, Hex25mmx159mm |
| Length: | 400mm - 8000mm | Name: | Chisel Bit Steel Integral Drill Rods |
| High Light: | shank h22x108mm integral drill rods,jack hammer integral drill rods,chisel integral drill rods |
||

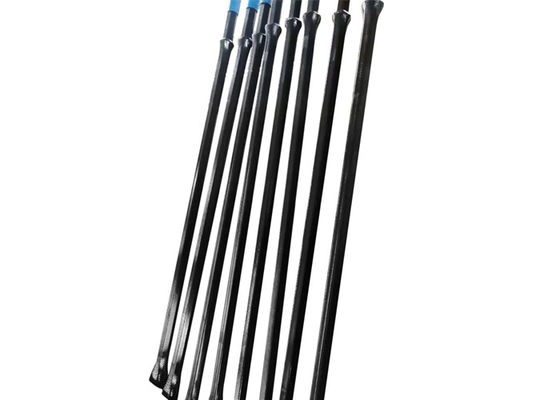

Shank H22*108mm Jack Hammer Drill Steel Chisel Integral Drill Rods

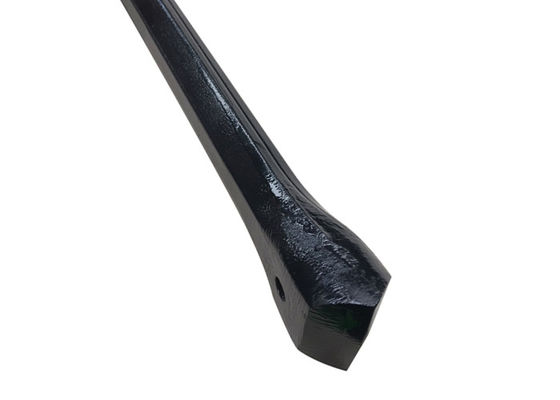

Introduction of Chisel Integral Drill Rod
Chisel Integral Drill Rod can be used with electric hammer and it is a widely applicable and high efficient chiseling hole, cutting, chiseling groove tool for concrete and brick wall.

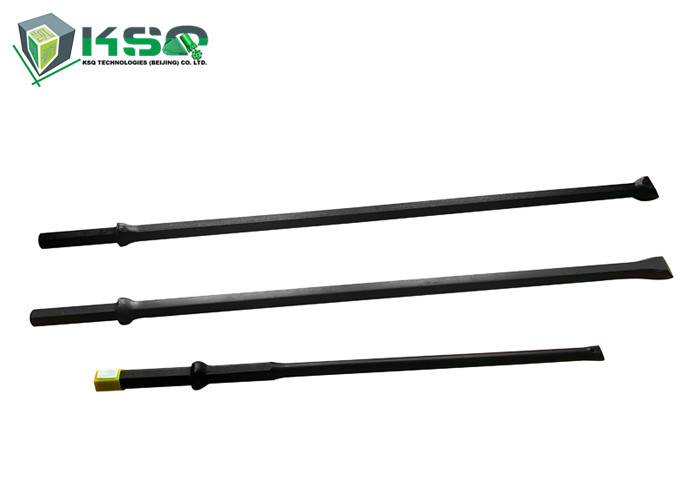

Our products include point chisel, small flat chisel, big flat chisel, gouge and groove chisel. The length of chisel according to the requirements of customers.
The shank types can be selected according to the demand of customers.Chisel Integral Drill Rod is a kind of drilling tool with the tapered drill bits, tapered drill rods and shank merged together.
Chisel Integral Drill Rod are designed to transmit the maximum impact energy to the rock with the least possible loss of energy in the drilling chain.
Advantages of Chisel Integral Drill Rod
Chisel Integral Drill Rod has the advantages of eliminating the energy loss at the junctions of the taper drilling tools, resulting in a higher efficiency and avoiding the lose of taper drilling bits.
All the advantages make this drilling steels not only apply to the excavate project, but also the outdoor drilling downwards, furthermore, integral drill rod extends its application range from that of the taper drill rods to the scope of secondary rock breaking of pick rods.
| Length | Bit Diameter | Weight | Part Number | |
| mm | foot | mm | kg | |
| 800 | 2 5/8 | 34 | 3 | 4148300035 |
| 1600 | 5 1/4 | 33 | 5.2 | 4148300036 |
| 2400 | 7 7/8 | 32 | 8 | 4148300037 |
| 3200 | 10 1/2 | 31 | 10.2 | 4148300038 |
| 4000 | 13 1/8 | 30 | 12.9 | 4148300039 |
| 4800 | 15 3/4 | 29 | 15.1 | 4148300040 |
| 5600 | 18 3/8 | 28 | 17.6 | 4148300041 |
| 6400 | 21 | 27 | 20.1 | 4148300042 |
| 7200 | 23 5/8 | 26 | 22.5 | 4148300043 |
| 800 | 2 5/8 | 40 | 3 | 4148300044 |
| 1600 | 5 1/4 | 39 | 5.2 | 4148300045 |
| 2400 | 7 7/8 | 38 | 8 | 4148300046 |
| 3200 | 10 1/2 | 37 | 10.2 | 4148300047 |
| 4000 | 13 1/8 | 36 | 12.9 | 4148300048 |
| 4800 | 15 3/4 | 35 | 15.1 | 4148300049 |
| 5600 | 18 3/8 | 34 | 17.6 | 4148300050 |
| 6400 | 21 | 33 | 20.1 | 4148300051 |
| 7200 | 23 5/8 | 32 | 22.5 | 4148300052 |
| 8000 | 26 1/4 | 31 | 25 | 4148300053 |
| 400 | 1 1/3 | 34 | 1.7 | 4148300054 |
| 800 | 2 5/8 | 33 | 3 | 4148300055 |
| 1200 | 4 | 32 | 4.1 | 4148300056 |
| 1600 | 5 1/4 | 31 | 5.2 | 4148300057 |
| 2000 | 6 5/9 | 30 | 6.7 | 4148300058 |
| 600 | 2 | 41 | 2.4 | 4148300059 |
| 1200 | 4 | 40 | 4.3 | 4148300060 |
| 1800 | 6 | 39 | 6.2 | 4148300061 |
| 2400 | 7 7/8 | 38 | 8 | 4148300062 |
| 400 | 1 1/3 | 41 | 1.7 | 4148300063 |
| 800 | 2 5/8 | 29 | 3 | 4148300064 |
| 800 | 2 5/8 | 38 | 3.1 | 4148300065 |
| 1200 | 4 | 39 | 4.3 | 4148300066 |
| 1600 | 5 1/4 | 36 | 5.2 | 4148300067 |
| 1800 | 6 | 36 | 6 | 4148300068 |
| 2000 | 6 5/9 | 32 | 6.7 | 4148300069 |
| 2400 | 7 7/8 | 27 | 8 | 4148300070 |
| 3200 | 10 1/2 | 27 | 10.2 | 4148300071 |
| 3200 | 10 1/2 | 32 | 10.3 | 4148300072 |
| 6400 | 21 | 30 | 20.1 | 4148300073 |
| 8000 | 26 1/4 | 26 | 25 | 4148300074 |
The process procedure is listed below:
1. sawing the steel rod and steel pipe
2. drilling the steel rod
3. CNC lathing the hollow steel rod to make screw thread for head and end parts of rod
4. makeing flat parts for head part
5. welding the two parts with steel pipe
6. lathing the redundant steel welding ring
7. painting and packing
Advantages of our drill steels:
1. Our products can match over 95% against the original products
2. Price are competitive against the famous brands and best quality against the small factory
3. We have advanced technology and equipment.
4. Our technician has more than 10 year’s professional working experience.
5. Rock drilling tools are exported throughout the world. Main market: Norway, USA,Canada,Brazil, UAE, Philippines, Thailand etc.
