Description
This type of bit is well known for its high wear resistance on medium-hard to hard abrasive rock formations (between 200 Mpa to 260 Mpa compressive strength). Featuring spherical tungsten carbide inserts that is known to have strong configuration against carbide fracture.
• Widely used in bench and long hole drilling
• Bit face design is ideal for medium-hard to hard abrasive rock
Color: Green or Based on Customer requirements
Material: Tungsten carbide and high strength alloy steel
Processing: CNC milling and proprietary heat treatment process

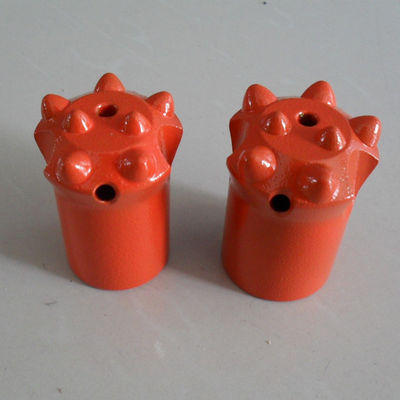

Type: T51 Button Bit Spherical Buttons
Applications
• Underground mining
• Tunneling
• Quarry
Competitive Advantage
• High grade tungsten carbide inserts
• Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment
specification
1
<
| Part Number | Bit Diameter (mm) | Bit Diameter (inch) |
Front Buttons (No. x mm) |
Gauge Buttons (No. x mm) |
| 4148300883 | 89 | 3 1/2 | 4x13 | 8x13 |
| 4148300884 | 89 | 3 1/2 | 5x13 | 8x13 |
| 4148300885 | 89 | 3 1/2 | 3x11, 2x11 | 6x13 |
| 4148300886 | 89 | 3 1/2 | 4x11, 1x11 | 8x13 |
| 4148300887 | 89 | 3 1/2 | 4x13, 1x13 | 8x13 |
| 4148300888 | 102 | 4 | 4x14 | 8x14 |
| 4148300889 | 102 | 4 | 6x13 | 8x16 |
| 4148300890 | 102 | 4 | 3x13, 2x13 | 6x14 |
| 4148300891 | 102 | 4 | 4x13, 1x13 | 8x14 |
| 4148300892 | 102 | 4 | 4x13, 2x13 | 8x13 |
| 4148300893 | 115 | 4 1/2 | 6x14 | 8x14 |
| 4148300894 | 115 | 4 1/2 | 6x14 | 8x16 |
| 4148300895 | 115 | 4 1/2 | 4x13, 2x13 | 8x14 |
| 4148300896 | 115 | 4 1/2 | 4x13, 3x13 | 8x14 |
| 4148300897 | 115 | 4 1/2 | 4x14, 2x14 | 8x16 |
| 4148300898 | 127 | 5 | 8x14 | 8x16 |
| 4148300899 | 127 | 5 | 4x16, 2x13 | 8x16 |
| 4148300900 | 127 | 5 | 4x14, 3x14 | 8x14 |
2
<
| Product Code and Brief Description | Angle |
Front Flushing Holes |
Side Flushing Holes |
Weight (kg) |
| B1289-T51-S, T51 Button Bit, Spherical Buttons | 40° | 2 | - | 4.9 |
| B1389-T51-S-1, T51 Button Bit, Spherical Buttons | 35° | 2 | 1 | 4.9 |
| B1189-T51-S, T51 Button Bit, Spherical Buttons | 35° | 4 | - | 4.9 |
| B1389-T51-S-2, T51 Button Bit, Spherical Buttons | 35° | 4 | - | 4.9 |
| B1389-T51-S-3, T51 Button Bit, Spherical Buttons | 35° | 4 | - | 4.9 |
| B12102-T51-S, T51 Button Bit, Spherical Buttons | 40° | 2 | - | 5.8 |
| B14102-T51-S-1, T51 Button Bit, Spherical Buttons | 35° | 2 | 1 | 5.8 |
| B11102-T51-S, T51 Button Bit, Spherical Buttons | 35° | 3 | 1 | 5.2 |
| B13102-T51-S, T51 Button Bit, Spherical Buttons | 35° | 4 | - | 5.8 |
| B14102-T51-S-2, T51 Button Bit, Spherical Buttons | 35° | 4 | 1 | 5.8 |
| B14115-T51-S-1, T51 Button Bit, Spherical Buttons | 35° | 2 | - | 6.8 |
| B14115-T51-S-2, T51 Button Bit, Spherical Buttons | 35° | 2 | - | 6.8 |
| B14115-T51-S-3, T51 Button Bit, Spherical Buttons | 35° | 4 | - | 6.8 |
| B15115-T51-S, T51 Button Bit, Spherical Buttons | 35° | 4 | - | 6.8 |
| B14115-T51-S-4, T51 Button Bit, Spherical Buttons | 35° | 4 | - | 6.8 |
| B16127-T51-S, T51 Button Bit, Spherical Buttons | 35° | 2 | 1 | 7.5 |
| B14127-T51-S, T51 Button Bit, Spherical Buttons | 35° | 4 | - | 7.5 |
| B15127-T51-S, T51 Button Bit, Spherical Buttons | 35° | 4 | - | 7.5 |
