Name: 4" 5" T38 Dome Reaming Drill Bit Rock Drilling Tools 102mm - 107mm
Brand: KSQ Technologies (Beijing) Co. Ltd
SKU: 4148300766-4148300767
Price: 15,000.00 USD
Availability: InStock

Home Products Reaming Drill Bit

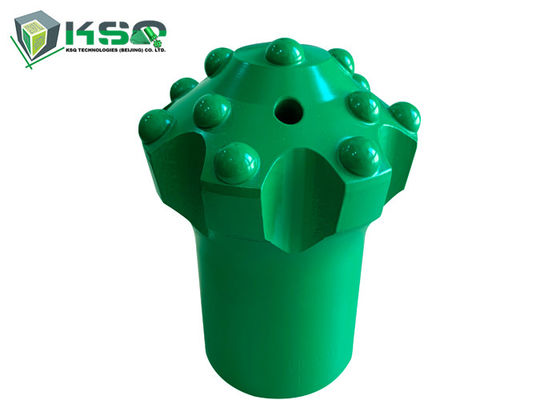

4" 5" T38 Dome Reaming Drill Bit Rock Drilling Tools 102mm - 107mm

Product Details:

Place of Origin:	China
Brand Name:	MIROC
Model Number:	4148300766-4148300767

Payment & Shipping Terms:

Minimum Order Quantity:	50
Price:	negotiation
Packaging Details:	Carton Box or Wooden Box
Delivery Time:	25 days
Payment Terms:	T/T or L/C
Supply Ability:	20000 pieces per month

Contact Now

Detailed Product Description

Highlight:

tungsten drill bits

cnc drill bits

4" 5" T38 Dome Reaming Drill Bit Rock Drilling Tools 102mm - 107mm

Description
This type of bit is used for making large cut holes in drifting and tunneling. A smaller hole is first drilled and then reamed to the final size in combination with a pilot adapter.

• Widely used in drifting and tunneling
• T38 thread system

Color: Green,Blue or Based on Customer requirements

Material: Tungsten carbide and high strength alloy steel

Processing: CNC milling and proprietary heat treatment process

Type: T38 Dome Bit For Reaming Spherical Buttons

Applications
• Underground mining
• Tunneling

Competitive Advantage

• High grade tungsten carbide inserts
• Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment

Specification

Part Number

Bit Diameter (mm)

Bit Diameter (inch)

Front Buttons

(No. x mm)

Gauge Buttons

(No. x mm)

4148300766

102

1x13

16x13

4148300767

127

1x13

16x13

Product Code and Brief Description

Angle

Front Flushing

Holes

Side Flushing

Holes

Weight

(kg)

RE17102-T38-S, T38 Dome Bit For Reaming, Spherical Buttons

35°

RE19127-T38-S, T38 Dome Bit For Reaming, Spherical Buttons

35°

4" 5" T38 Dome Reaming Drill Bit Rock Drilling Tools 102mm - 107mm 0
