5" / 6" T45 127mm Tungsten Drill Bits Milling Drill Bits For Making Large Cut Holes

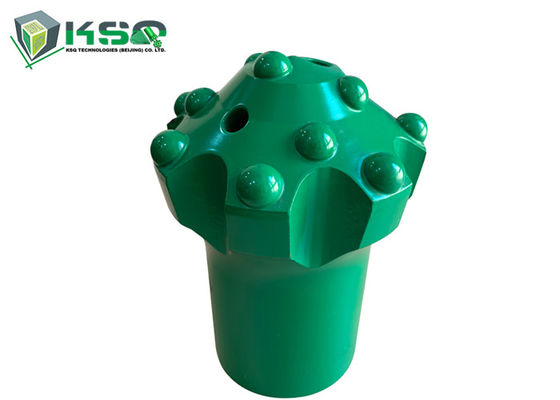

Large Image : 5" / 6" T45 127mm Tungsten Drill Bits Milling Drill Bits For Making Large Cut Holes

Product Details:

Place of Origin:	China
Brand Name:	MIROC
Model Number:	4148300865-4148300866

Payment & Shipping Terms:

Minimum Order Quantity:	50
Price:	negotiation
Packaging Details:	Carton Box or Wooden Box
Delivery Time:	25 days
Payment Terms:	T/T or L/C
Supply Ability:	20000 pieces per month

Contact Now

Detailed Product Description

Highlight:

reamer drill bit

tungsten drill bits

5" / 6" T45 127mm Tungsten Drill Bits Milling Drill Bits For Making Large Cut Holes

Description
This type of bit is used for making large cut holes in drifting and tunneling. A smaller hole is first drilled and then reamed to the final size in combination with a pilot adapter.

• Widely used in drifting and tunneling
• T45 thread system

Color: Green,Blue or Based on Customer requirements

Material: Tungsten carbide and high strength alloy steel

Processing: CNC milling and proprietary heat treatment process

Type: T45 Dome Bit For Reaming Ballistic Buttons

Applications
• Underground mining
• Tunneling

Competitive Advantage

• High grade tungsten carbide inserts
• Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment

Specification

Part Number

Bit Diameter (mm)

Bit Diameter (inch)

Front Buttons

(No. x mm)

Gauge Buttons

(No. x mm)

4148300865

127

1x13

18x13

4148300866

152

2x14

18x14

Product Code and Brief Description

Angle

Front Flushing

Holes

Side Flushing

Holes

Weight

(kg)

RE19127-T45-B, T45 Dome Bit For Reaming, Ballistic Buttons

35°

6.0

RE20152-T45-B, T45 Dome Bit For Reaming, Ballistic Buttons

35°

10.6

5" / 6" T45 127mm Tungsten Drill Bits Milling Drill Bits For Making Large Cut Holes 0
