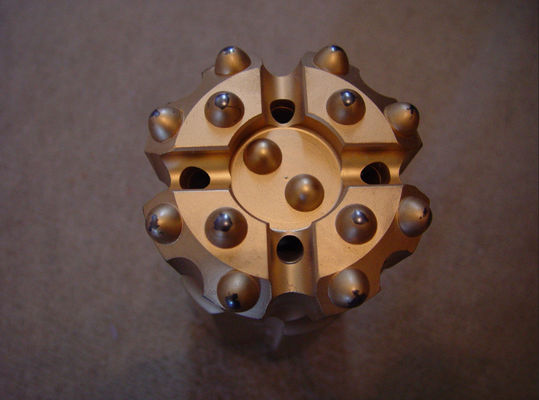

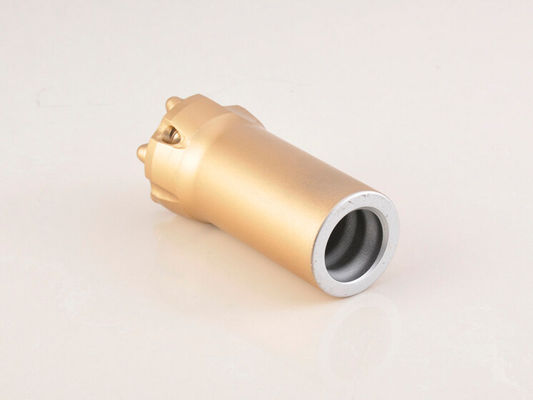

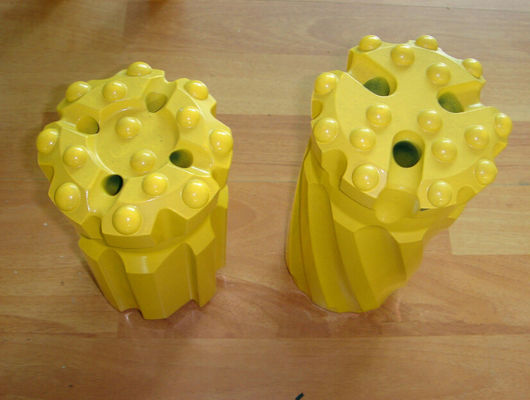

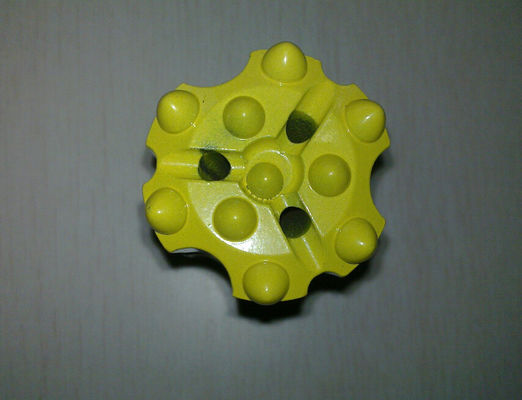

Tungsten Carbide 76mm T38 Button Drill Bit with Semi-Ballistic Buttons

Large Image : Tungsten Carbide 76mm T38 Button Drill Bit with Semi-Ballistic Buttons

Product Details:

Place of Origin:	Shan Dong, China(Mainland)
Brand Name:	MIROC
Certification:	API / GB
Model Number:	T38 Button Drill Bit

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	negotiation
Packaging Details:	Carton or Wooden Box
Delivery Time:	1-20 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	5000 pieces per month

Contact Now

Detailed Product Description

Type:	T38 Button Drill Bit	Material:	Carbide / 45CrNiMoV
Processing Type:	Forged	Use:	Rock Drill / Tunneling
Shape:	Semi-Ballistic, Conical, Sphercial, Ballictic	Advantage:	Good Quality
Color:	Golden ETC.
Highlight:	hardened steel drill bits , milling drill bits

Tungsten Carbide 76mm T38 Button Drill Bit with Semi-Ballistic Buttons

Specifications

1) Thread connection: R22, R25, R28, R32, R38, T38, T45, T51, ST58, ST68, GT60 .
2) Steel material: 45CrNiMoV.
3) Suitable carbide tips.
4) Bits diameter: 30-127mm.

Usage:drilling in ore field,

suitable even for harsh enviroment works;

Selling Point: Quality certified;

Competitive prices;

Brand Name effect;

Nice after-sales services;

Description

T38 button bit
	Bit Dia.	Buttons and Size (mm)		Flushing Hole		Weight
	mm	Front	Gauge	Front	Side	kg
1	64	3×10, 1×10	6×11	3	-	1.7
2	70	3×10, 1×10	6×12	3	-	1.8
3	76	3×11, 1×11	6×12	3	1	2.6
4	89	3×11, 2×11	6×13	3	1	3.3
R38 button bit
	Bit Dia.	Buttons and Size (mm)		Flushing Hole		Weight
	mm	Front	Gauge	Front	Side	kg
1	64	3×11	6×12	3	-	1.8
2	70	3×10, 1×10	6×12	3	-	1.8
3	76	3×11, 1×11	6×12	2	-	2.6
4	89	4×13, 1×13	8×13	4	-	3.3
R32 button bit
	Bit Dia.	Buttons and Size (mm)		Flushing Hole		Weight
	mm	Front	Gauge	Front	Side	kg
1	41	2×8	5×9	1	1	0.7
2	43	2×9	5×10	1	1	0.7
3	45	2×9	5×11	1	1	0.8
4	48	2×9	5×11	1	1	0.9
5	51	2×10	5×11	1	1	1
6	57	3×9	6×11	3	-	1.3
7	64	3×11	6×12	3	-	1.6
8	70	4×11	8×11	2	-	2.6
9	76	4×11	8×11	2	-	2.8
R28 button bit
	Bit Dia.	Buttons and Size (mm)		Flushing Hole		Weight
	mm	Front	Gauge	Front	Side	kg
1	37	2×7	5×9	1	1	0.5
2	38	2×7	5×9	1	1	0.6
3	41	2×8	5×9	1	1	0.7
4	43	2×9	5×9	1	2	0.8
5	45	2×9	5×10	1	2	0.9
6	48	2×9	5×11	1	2	1

Tungsten Carbide 76mm T38 Button Drill Bit with Semi-Ballistic Buttons 0
