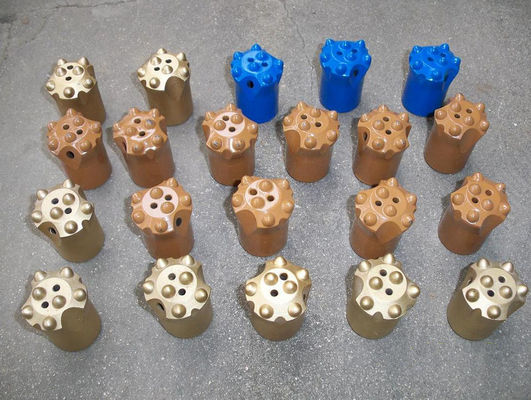

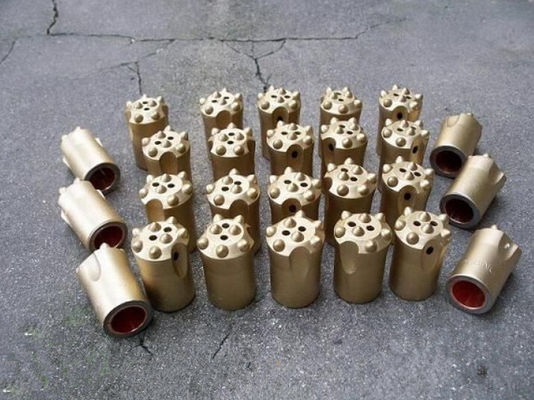

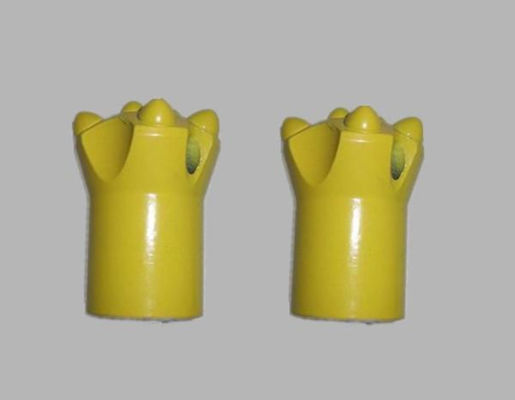

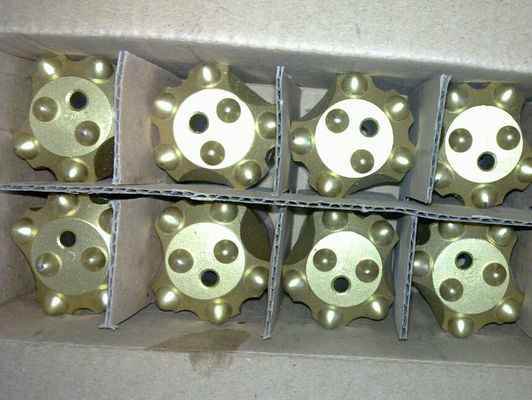

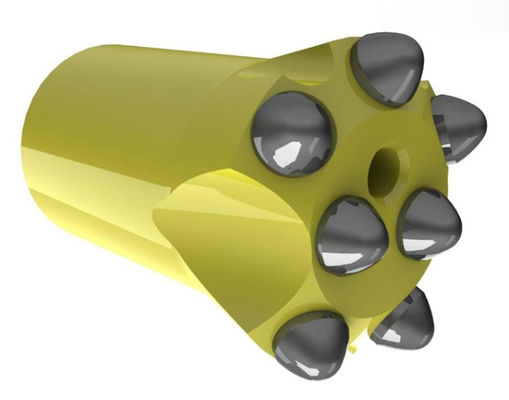

Tungsten Carbide Mining Drilling Tools , 7° Quarrying 34mm Taper Button Bit

Large Image : Tungsten Carbide Mining Drilling Tools , 7° Quarrying 34mm Taper Button Bit

Product Details:

Place of Origin:	ShanDong, China(Mainland)
Brand Name:	MIROC
Certification:	GB / API / ISO
Model Number:	Taper Button bits

Payment & Shipping Terms:

Minimum Order Quantity:	10 pieces
Price:	negotiation
Packaging Details:	Wooden Box or Based on Customers
Delivery Time:	1-15 days
Payment Terms:	T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability:	900000 pieces per month

Contact Now

Detailed Product Description

Degree:	4°, 7°, 11°, 12°	Processing Type:	Hot-pressing
Color:	Based On Customers Requirements	Use:	Ore Mining
Material:	45CrNiMoV, 42CrMo	Machine Type:	Drilling Tools
Highlight:	stone drilling tools , rock drill tools

Tungsten Carbide Mining Drilling Tools , 7° Quarrying 34mm Taper Button Bit

Tapered Rock Drill Bits we have three types: taper chisel bit, taper cross bit and taper button bit. It's suitable for H22mm and H25mm taper rock drill rods use. It have three taper degree: 7°, 11°, 12°. It's widely used for hard rock(f=8~18) drilling use. Taper button bits is the best sales product.

Taper Button Bits:

1) Type: Taper button bits

2) Shank Hex.Size: 22mm,25mm

3) Diameter: 30-42mm.

4) Taper degree: 7°11°12°

5) Buttons quantity: 4, 5, 6, 7, 8

6) Package: Plastic case, wooden case.

Specification

7°11°12° Taper Button Bit

	Bit Dia.	Buttons and Size (mm)		Flushing Hole		Weight
	mm	Front	Gauge	Front	Side	kg
1	32	1x8	3x8	1	1	0.24
2	33	2x7	5x7	2	1	0.26
3	34	2x7	4x7	1	1	0.29
4	35	2x7	5x8	1	1	0.33
5	36	2x7	5x8	1	1	0.37
6	38	1x8	3x9	1	1	0.37
7	40	1x8	3x9	1	1	0.38
8	41	2x7	5x9	1	1	0.42
9	42	2x8	5x9	1	1	0.43

Tungsten Carbide Mining Drilling Tools , 7° Quarrying 34mm Taper Button Bit 0

Chisel Bit, 7 ° , 11° , 12°
	Length (mm)	Chisel Size (H x W) mm	Weight (Kg)
1	26	10x7	0.17
2	28	10x7	0.18
3	30	13.5x8	0.22
4	32	13.5x8	0.24
5	34	13.5x8	0.27
6	36	13.5x8	0.3
7	38	13.5x8	0.33
8	38	15x9	0.33
9	40	3.5x9.2	0.38
10	40	15x9.8	0.38
11	42	13.5x9.2	0.41
12	42	15x9.8	0.41
13	43	13.5x9.2	0.42

Tungsten Carbide Mining Drilling Tools , 7° Quarrying 34mm Taper Button Bit 3
