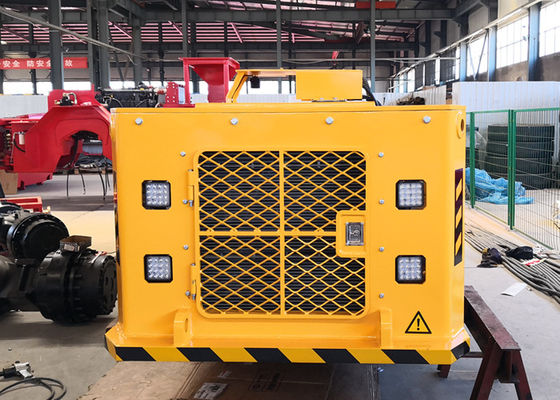

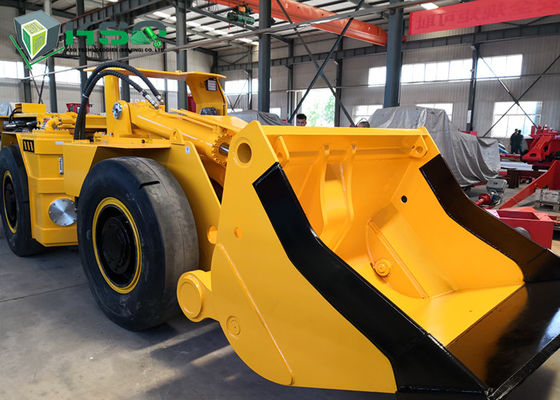

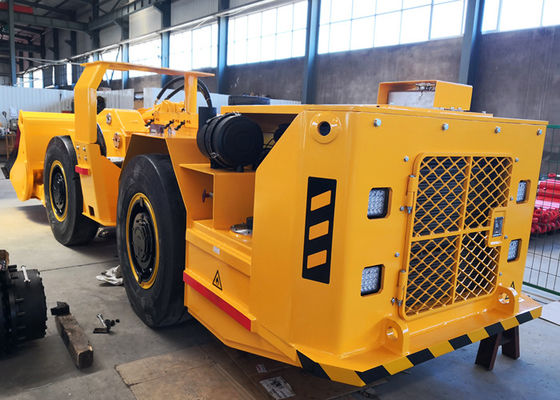

4000kg Tramming Capacity Underground Equipment 2m³ Load Haul Dump Machine

Large Image : 4000kg Tramming Capacity Underground Equipment 2m³ Load Haul Dump Machine

Product Details:

Place of Origin:	China
Brand Name:	MIROC
Certification:	CE / ISO
Model Number:	RL-2 Load Haul Dump Machine

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiation
Packaging Details:	Based on requirements
Delivery Time:	1-3 Months
Payment Terms:	T/T or L/C
Supply Ability:	5 Units per month

Contact Now

Detailed Product Description

Main Dimensions:	687517701950mm(LWH)	Volume Capacity:	2 Cubic Meter
Tramming Capacity:	4000kg	Engine:	DEUTZ F6L912W Diesel Engine
Torque Converter:	DANA C272	Transmission:	DANA RT20000
Axles:	MERITOR CY-2J	Tires:	12.00-24.00 L5-S
Highlight:	underground lhd machines , lhd load haul dump

2m³ Load Haul Dump Machine 4000kg Tramming Capacity Underground Equipment

The trusted workhorse of miners and tunneling professionals, the RL-2 Load-Haul-Dump
Machine is ideal for small to medium scale rock excavation operations. The RL-2 maintains
the simple yet very robust design tenets of what a mining equipment should be - it has a
small footprint and turning radius suitable for small envelope sizes, high proven reliability,
and straight-forward mechanical components that are easy to maintain.

Color: Based on Customer requirements

Type: RL-4 Load-Haul-Dump Machine

Applications

Underground Mining

Hydropower Tunneling

Roadway/Railway Tunneling

Competitive Advantage

Major components from industry respected suppliers

Simple yet very robust design

Very competitive pricing compared to its counterparts coming from well-known brands

Competitive delivery

Specification

Load-Haul-Dump Machine
Type	Main Dimensions (LWH)	Volume Capacity	Tramming Capacity	Engine	Axles	Tires
RL-1	60001330 2037mm	1m3	2000 kg	DEUTZ BF6L914 diesel engine	XUZHOU-JINHE	10.00-20.00 L5-S
RL-2	68751770 1950 mm	2m3	4000 kg	DEUTZ F6L912W diesel engine	MERITOR CY-2J	12.00-24.00 L5-S
RL-3	88682112 2275mm	3m3	6000 kg	DEUTZ BF6L914C diesel engine	DANA 16D	17.50-25.00 L5-S
RL-4	96902550 2395mm	4m3	8000 kg	CUMMINS QSL9C250 diesel engine	KESSLER D91	18.00-25.00 L5-S

4000kg Tramming Capacity Underground Equipment 2m³ Load Haul Dump Machine 0

4000kg Tramming Capacity Underground Equipment 2m³ Load Haul Dump Machine 1

Low Profile Dump Truck
Type	Main Dimensions (LWH)	Volume Capacity	Tramming Capacity	Engine	Torque Converter	Transmission	Axles
RT-12	79561804 2150mm	6m3	12000 kg	DEUTZ BF6L914 diesel engine	DANA C273	DANA R24000	MERITOR CY-2J
RT-15	79561804 2150mm	7.5m3	15000 kg	DEUTZ BF6L914C diesel engine	DANA C273	DANA R32000	DANA 16D
RT-20	90462280 2325mm	10m3	20000 kg	DEUTZ BF6M1013FC diesel engine	DANA CL5000	DANA R36000	DANA 19D
MT30D	101502700 2600mm	16m3	33000 kg	CUMMINS QSX15 diesel engine	DANA CL8000	DANA 6000	KESSLER D91

Company Profile:

ROXMECH®, by KSQ Technologies (Beijing) Co. Ltd., is a product line consisting of specialized
equipment for use in underground mining and tunneling works, such as Load-Haul-Dump
Machines (LHDs), Low Profile Trucks (LPTs), Scissors Lift Truck, Mobile Batching Equipment,
Service Vehicles, and Personnel Carriers.
ROXMECH® was developed through years of exchanges and hands-on work with mining
operations in China and some parts of the world where mining is the lifeblood of the econ-
omy. In every product we build, our reputation and experience can be seen. That’s the rea-
son to choose us if you are looking to improve your productivity and reduce costs.
ROXMECH® Rock Excavation and Service/Support Equipment include:

RL-1 Load-Haul-Dump Machine
RL-2 Load-Haul-Dump Machine
RL-3 Load-Haul Dump Machine
RL-4 Load-Haul Dump Machine
RT-12 Low Profile Dump Truck
RT-15 Low Profile Dump Truck
RT-20 Low Profile Dump Truck
MT30D Low Profile Dump Truck
RS-3 Service Vehicle Series
MG-64A-SB Shotcrete Batcher
MT30M Low Profile Transmixer
