White Deutz Diesel Engine Load Haul Scraper Machine CE ISO9001

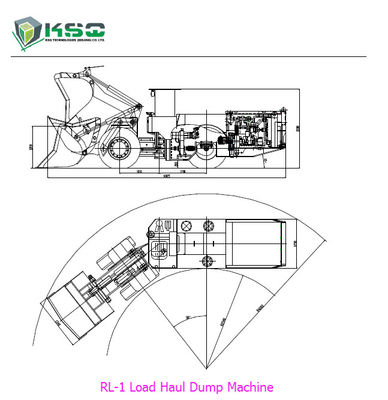

Large Image : White Deutz Diesel Engine Load Haul Scraper Machine CE ISO9001

Product Details:

Place of Origin:	China
Brand Name:	ROXMECH
Certification:	CE, ISO
Model Number:	RL-1 Load Haul Dump Machine/ScoopTram

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiation
Packaging Details:	Suitable for Long Transportation
Delivery Time:	2 Months
Payment Terms:	T/T, L/C, D/A, D/P, Western Union

Contact Now

Detailed Product Description

Color::	Orange/Yellow/White	Certification::	CE, ISO9001
Application::	Small Tunnel/Underground Mining	Rated Load Capacity:	2 Tons
Engine::	DEUTZ F6L912W 57KW/2300rpm	Maximum Traction::	56kN
Maximum Climbing Capacity::	20°	Driving Speed::	0-10km/h
Highlight:	lhd load haul dump , underground lhd machines

Applications:

• Underground Mining
• Hydropower Tunneling
• Roadway/Railway Tunneling
• Can be utilized as a multi-role equipment with various attachments (i.e. shotcrete robot arm)

Operation Advantage:

The RL-1 Load-Haul-Dump Machine bucket capacity is 1 cubic meter, it is ideal for small size rock excavation operations.

The RL-1 maintains the simple yet very robust design tenets of what a mining equipment should be - it has a small footprint and turning radius suitable for small envelope sizes, high proven reliability, and straight-forward mechanical components that are easy to maintain.

Main Technical Configuration:

1 Rated Bucket Capacity	1m3
2 Rated Load Capacity	2t
3 Maximum Relieving Force	48kN
4 Maximum Traction	56kN
5 Driving Speed	0-10km/h
6 Maximum Climbing Capacity	20°
7 Maximum Discharge Height	1050mm
8 Minimum Discharge Distance	860 mm
9 Working time	11s
10 Minimum Turning Radius	4260mm(Outboard of bucket) 2540mm(inside of back wheel)
11 Maximum Steering Angle	±38°
12 Minimum Ground Clearance	200mm
13 Rear Axle Swinging Angle	±8°
14 Weight of the Whole Machine	6.75t
15 Size
Length(Bucket in haul position)	5850mm
Width	1300mm
Height of the Cab	2000mm

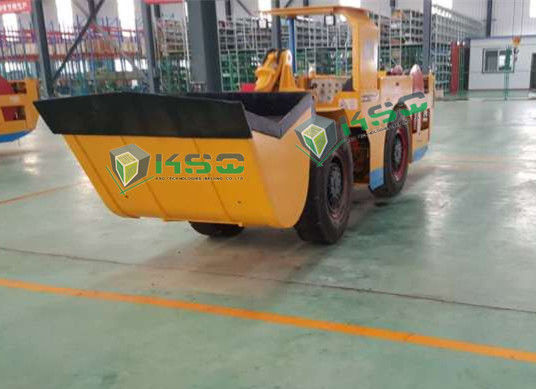

Finished Products in factory

White Deutz Diesel Engine Load Haul Scraper Machine CE ISO9001 0

Packaging & Shipping

White Deutz Diesel Engine Load Haul Scraper Machine CE ISO9001 2

Company Information

ROXMECH®, by KSQ Technologies (Beijing) Co. Ltd., is a product line consisting of specialized
equipment for use in underground mining and tunneling works, such as Load-Haul-Dump
Machines (LHDs), Low Profile Trucks (LPTs), Scissors Lift Truck, Mobile Batching Equipment,
Service Vehicles, and Personnel Carriers.

ROXMECH® Rock Excavation and Service/Support Equipment include:

Load Haul Dump Machines
RL-1 Load-Haul-Dump Machine
RL-2 Load-Haul-Dump Machine
RL-3 Load-Haul Dump Machine
RL-4 Load-Haul Dump Machine

Low Profile Dump Trucks
RT-12 Low Profile Dump Truck
RT-15 Low Profile Dump Truck
RT-20 Low Profile Dump Truck
MT30D Low Profile Dump Truck

Support Equipment
RS-3 Service Vehicle Series
MT30M Low Profile Transmixer

Processing Equipment
TT Series Vacuum Ceramic
Filtration System

Exhibition Activity

2016 MINExpo, Las Vegas, USA from Sep. 26-28

Booth Number: North 655

Much welcome all friends to visit us there!

White Deutz Diesel Engine Load Haul Scraper Machine CE ISO9001 6
