| Name: | DTH Hammer | Series: | DHD340 COP44 |
|---|---|---|---|
| Size: | 4'' | Type: | With Foot Valve, No Foot Valve |
| Use: | Tunneling, Mining,Quarrying,Water Well | Color: | Green,Black ,Orange ,Blue,Golden |
| High Light: | down the hole drilling tools,down the hole hammer |
||

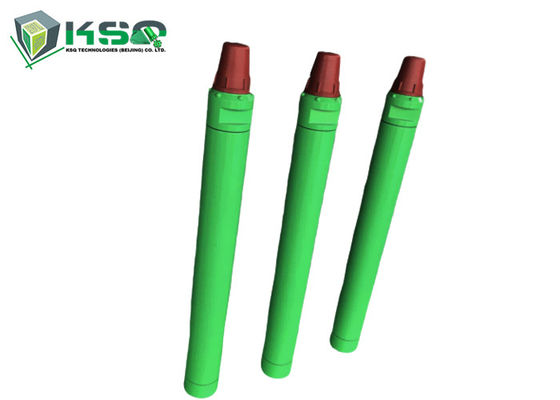

DHD340 COP44 Series 4'' Rock Boring Tool Dth Hammers And Bits
Basic Information
|
Items |
Replacement Parts |
|
1 |
Top sub |
|
2 |
O-ring of top sub |
|
3 |
Breakout Ring |
|
4 |
Check Valve |
|
5 |
Spring |
|
6 |
Compression Buffer |
|
7 |
Air Distributor |
|
8 |
Internal cylinder |
|
9 |
Piston |
|
10 |
External cylinder |
|
11 |
Guide sleeve |
|
12 |
O-ring of stop ring |
|
13 |
Stop ring |
|
14 |
Breakout ring |
|
15 |
Drive chunk |
|
16 |
Drill bit |
QL40 Hammer Specification
|
Drilling Diameter(mm) |
Hammer Length(mm) |
External Diameter(mm) |
Weight(kg) |
||||
|
φ110-φ135 |
1097(without bit) |
99 |
41(without bit) |
||||
|
Working Pressure(Mpa) |
Air Consumption(m³/min) |
||||||
|
1.2-2.0 |
1.0Mpa: 6m³/min |
1.8Mpa: 10m³/min |
2.4Mpa: 15m³/min |
||||
|
Impact rate at 17 bar |
Connection Rod Thread |
Recommended Rotation Speed |
Bit Shank |
||||
|
27HZ |
API 2-3/8'' Reg |
25-40 r/min. |
QL40 |
||||
DHD340 Hammer Specification
|
Drilling Diameter(mm) |
Hammer Length(mm) |
External Diameter(mm) |
Weight(kg) |
||||
|
φ108-φ130 |
881(without bit) |
φ99 |
38 |
||||
|
Working Pressure(bar) |
Air Consumption(m³/min) |
||||||
|
8.0-30.0 |
10bar: 5 |
18bar: 10.2 |
24bar: 15 |
||||
|
Connection Rod Thread |
Bit Shank |
||||||
|
API 2-3/8” Reg |
DHD340A( With Foot Valve) |
||||||
Competitive Advantage
• Valveless air distribution, more reliable.
• Simple design of the piston. Long life span.
• More efficient energy transfer, faster drilling speed, low air consumption and lower oil consumption.
• Fewer internal parts, simple structure, less failure and easier to maintain.
• Easy to disassembled because the top sub, the drive chuck and the external cylinder are connected by multiple steps thread.
Photos
