Impregnated Diamond Core Bits and Reamer with Model AQ BQ NQ HQ PQ

Impregnated Diamond Core Bits and Reamer with Model AQ BQ NQ HQ PQ

Impregnated Diamond Core Bits and Reamer with Model AQ BQ NQ HQ PQ
Impregnated Diamond Core Bits and Reamer with Model AQ BQ NQ HQ PQ
Impregnated Diamond Core Bits and Reamer with Model AQ BQ NQ HQ PQ
Product Details:
Place of Origin: China
Brand Name: MIROC
Model Number: Exploration Drilling Tools
Payment & Shipping Terms:
Minimum Order Quantity: 1 Pieces
Price: negotiable
Packaging Details: Carton Box or Wooden Box
Delivery Time: 10 - 20 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 3000pcs per month
Contact Now
Detailed Product Description
Type: Diamond Bit & Reamer Material: Tungsten Carbide And Alloy Steel
Color: Green, Blue, Golden, Orange Etc. Processing Type: Forging
Model: AQ BQ NQ HQ PQ Application: Geological Exploration
High Light:

rock drill tools

,

tungsten carbide drill bits

Impregnated Diamond Core Bits and Reamer with Model AQ BQ NQ HQ PQ



Description:

Impregnated diamond bits have the widest range of application. They are the most commonly useful bits from medium to super hard formations in the mineral exploration industry. the Hardness and abrasive of the rock formation are the key factors to determine the diamond specifications, concentration and matrix hardness.



The choice of the diamond bit crown shape:
W Profile
Suitable for drilling hard dense formations with high penetration rate.
Semi-Round Profile
Impregnated bits with this profile are recommended for use in highly fractured formations with good drilling stability. Surface set bits of this style have a long bit life and the matrix is not easy to be damaged.
Flat Profile
It's suitable for various rocks, often used in impregnated casing bits, casing shoes as well as the bits with very hard matrices(e.g. F1, F2).
Cross Profile
It's especially designed for ultra-hard formations, such as granite (hardness 8-9), ganister, quartzite, siliceous limestone, chert, etc.
Multi-Step Profile
Multi-Step type impregnated bit are suitable for soft to medium hard formations and alternating hard-soft formations. With very good drilling stability, it makes the borehole not liable to deflection and the penetration fast. This profile is also often adopted in thick-kerf surface set core bits, with good drilling stability and fast penetration.
Shaped Gear Profile
It's suitable for competent formations, and can expand the flushing ways and improve the penetration rate.
Face Discharge
It's suitable for sedimentary and metamorphic formations, or the formations including with lots of mineral powders, this design can protect the core from flushing and improve the getting effciency of core samples.
Application

Geological exploration drilling.

Sizes Available
Wireline series Geobor S, WLA, WLB, WLN, WLH, WLP, WLB3, WLN3, WLH3, WLP3, WLN2, AQ, BQ, NQ, HQ, PQ, SQ, PQ3, HQ3, NQ3, BQ3, NQ2, WL-56, WL-66, WL-76
T2 / T series T2 46, T2 56, T2 66, T2 76, T2 86, T2 101, T46, T56, T66, T76, T86
TT series TT 46, TT 56
T6 series T6 76, T6 86, T6 101, T6 116, T6 131, T6 146
T6S series T6S 76, T6S 86, T6S 101, T6S 116, T6S 131, T6S 146
B series B46, B56, B66, B76, B86, B101, B116, B131, B146
MLC series NMLC, HMLC, 3C, 4C, 6C, 8C
LTK series LTK48, LTK60
WF series HWF, PWF, SWF, UWF, ZWF
WT series RWT, EWT, AWT, BWT, NWT, HWT(Single Tube, Double Tube)
WG series EWG, AWG, BWG, NWG, HWG(Single Tube, Double Tube)
WM series EWM, AWM, BWM, NWM, HWM
Other sizes AX, BX, NX, HX, TBW, NQTT, HQTT, TNW, 412F, BTW, TBW, NTW, HTW, T6H, SK6L-146
Chinese standard 56mm, 59mm, 75mm, 89mm, 91mm, 108mm, 110mm, 127mm, 131mm, 150mm, 170mm, 219mm, 275mm
Russian standard 59, 76, 93, 112, 132, 152 mm
Special sizes can also be made as per request



Photos:

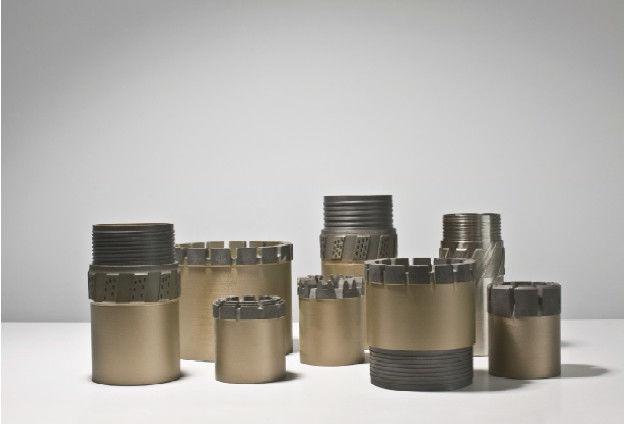

Diamond core bit



Impregnated Diamond Core Bits and Reamer with Model AQ BQ NQ HQ PQ 0

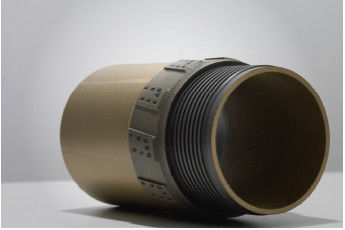

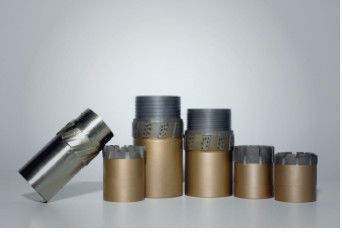

Reamer

Impregnated Diamond Core Bits and Reamer with Model AQ BQ NQ HQ PQ 1

Impregnated Diamond Core Bits and Reamer with Model AQ BQ NQ HQ PQ 2
