| Place of Origin: | China |
| Brand Name: | Mirco |
| Minimum Order Quantity: | negociated one |
|---|---|
| Price: | negociated one |
| Packaging Details: | wooden box or plastic box |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 10000 Piece/Pieces per Month |
| Model: | T45 | Type: | Drill Bit |
|---|---|---|---|
| Machine Type: | Drilling Tool, Drilling Equipment | Material: | High Manganese Steel |
| Processing Type: | Forging | Use: | Mining Drilling |
| Bit Diameter: | 76,89,102,115mm | Boby Type: | Retrac Type |
| Product Name: | Retrac Button Drill Bit | ||
| High Light: | mining drill bits,spherical drill bit |
||

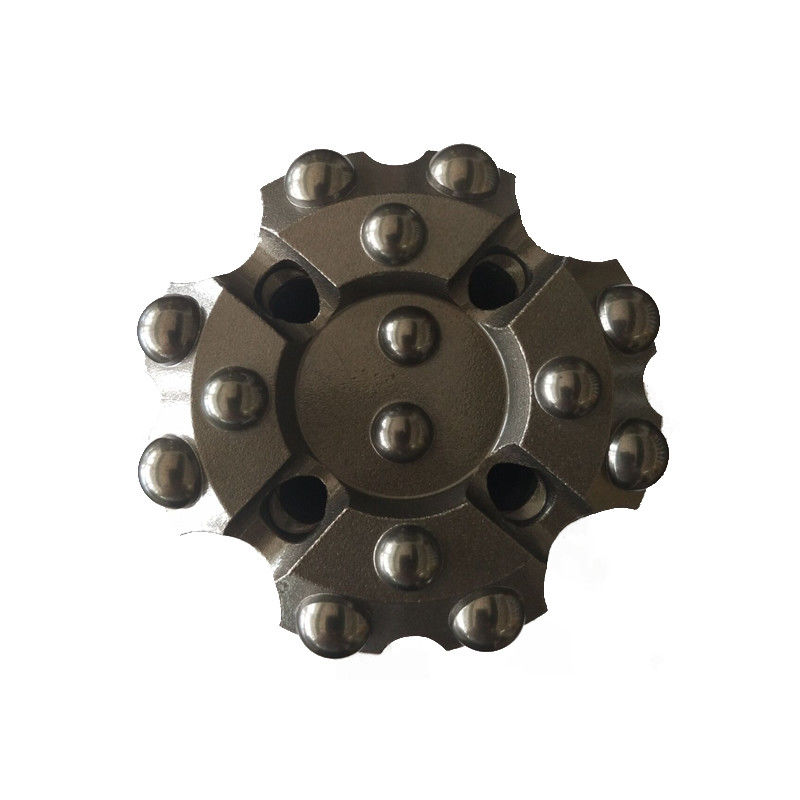

102mm T45 Concave Face Retractable Drill Bit High Speed , Thread Button Bit For Hard Rock
102mmT45 concave face high speed drilling thread retrac button bit for hard rock
| Dia.(mm) | Thread Connection | Buttons | Flusing Holes | Weight(kg) | ||
| Gauge | Front | |||||
| Qty×Dia. | Qty× Dia. | Front | Side | |||
| 76 | T38 | 7×12 | 4×10 | 3 | 1 | 3.00 |
| 76 | T45 | 8×11 | 6×10 | 4 | - | 3.00 |
| 78 | T38 | 8×11 | 5×11 | 4 | - | 3.10 |
| 89 | R32 | 8×12 | 6×11 | 4 | - | 3.50 |
| 89 | R38 | 8×12 | 6×11 | 4 | - | 3.50 |
| 89 | T45 | 8×12 | 6×11 | 4 | - | 3.50 |
| 89 | T51 | 8×12 | 6×11 | 4 | - | 4.50 |
| 102 | T45 | 8×14 | 6×13 | 4 | - | 5.50 |
| 102 | T51 | 8×14 | 6×13 | 4 | - | 5.50 |
| 105 | R38 | 8×14 | 6×13 | 4 | - | 4.50 |
| 115 | R38 | 8×14 | 7×13 | 4 | - | 4.80 |
| 115 | T51 | 8×14 | 7×13 | 4 | - | 4.80 |
Package
PACKAGE FOR 102MM T45 THREAD BUTTON BITS:
PACKING WAY: WOODEN BOX,4PCS ONE BOX.
BIT WEIGHT:5.5KGS.
PACKING WEIGHT:25KGS.
WOODEN BOX SIZE:31cm*25cm*25cm.
Retrac button drill bit process and application:
