|Place of Origin:||China|
|Minimum Order Quantity:||negociated one|
|Packaging Details:||wooden box or plastic box|
|Delivery Time:||10-15 days|
|Payment Terms:||T/T, L/C, Western Union|
|Supply Ability:||100000 Piece/Pieces per Month|
|Model:||Concentric Casing System||Type:||Drilling Tool Parts|
|Machine Type:||Drilling Tool, Drilling Equipment||Processing Type:||Forging|
|Use:||Well Drilling||Color:||As Customers' Requirements|
rock drill tools,
mining drilling tools

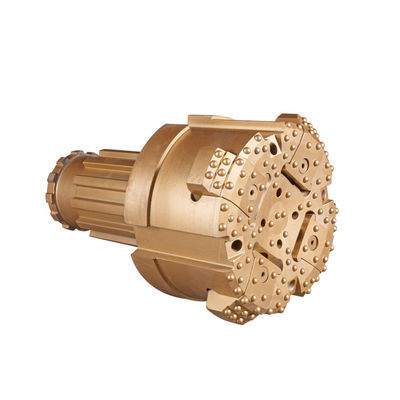

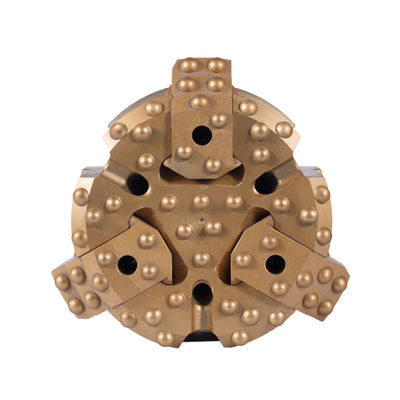

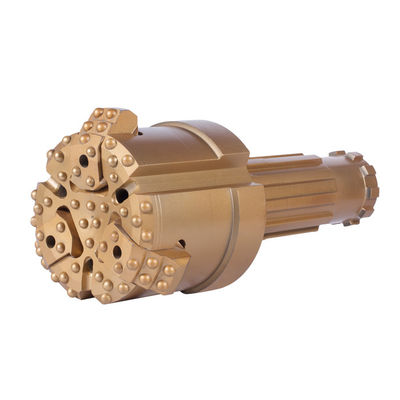

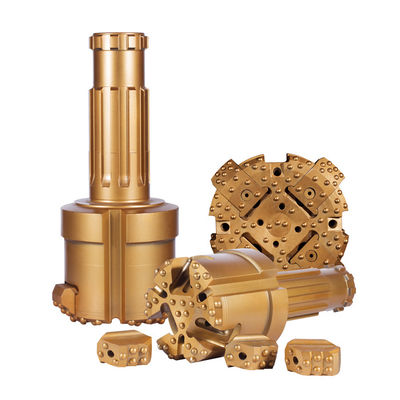

Concentric Overburden Rock Drilling Tools , Water Well Drill Bits With Blocks
It is recommended to drill in rock formation where contains some ovals and fractures.
Make the casing follow easy and the equipment and operation simple
1.The stable and reliable working performance and the less vibration of drill rig.
2.Flexible to open and close.
1.when the drilling starts, the blocks slides down through the grooves on pilot bit,and reams to drive the casing shoes and tubes into the hole.
2.When finished the drilling in overburden rock formations, raise the drilling tools and the blocks will get closed through the grooves , and the drilling tools can be pulled out from the hole.
3. Next construction can be followed.
|Model||Outer Dia. of Casing Tube(mm)||Inner Dia. of Casing Tube(mm)||Wall thickness of casing(mm)||Reamed Dia.(mm)||Min. Inner Dia.of Casing Shoe(mm)||Hammer Type(mm)||Drill Pipes(mm)|
MIROC® Rock Drilling Tools are Rock Drilling Tools Brand by KSQ Tecnologies (Beijing) Co. Ltd.
KSQ Technologies (Beijing) Co. Ltd. provides exceptional technical know-how in development, production, and application. The company has adopted advanced manufacturing processes to ensure high quality steels and tungsten carbide inserts for its rock drilling accessories. Its personnel understand clients’ drilling needs, and have the service skills to recommend the right drilling tools for the job. Its experienced product developers can also create custom tools. Furthermore, the company’s development team introduces innovative products each year – tools that are rigorously tested in the field and proven
to perform beyond industry expectations.
MIROC® Rock Drilling and Ground Support Tools include:
Plug Hole Rods
Tapered Drilling Tools
Extension Drilling Tools
Drifting and Tunneling Tools
Shank Adapters (Striking Bars)
Down-the-hole (DTH) Bits
Down-the-hole (DTH) Hammers
