| Place of Origin: | China |
| Brand Name: | Mirco |
| Minimum Order Quantity: | negociated one |
|---|---|
| Price: | negociated one |
| Packaging Details: | wooden box or plastic box |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 5000 Piece/Pieces per Month |
| Model: | BQ NQ HQ PQ AW BW HW | Type: | Drill Rod / Drill Pipe |
|---|---|---|---|
| Machine Type: | Drill Pipe, Core Drill Rod | Usage: | Diamond Core Dilling, Water Well Drilling |
| Processing Type: | Casting | ||
| High Light: | rock drill tools,mining drilling tools |
||

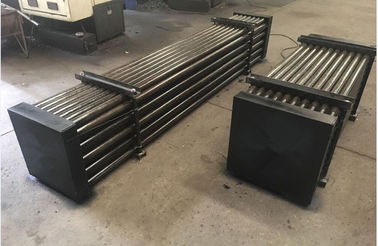

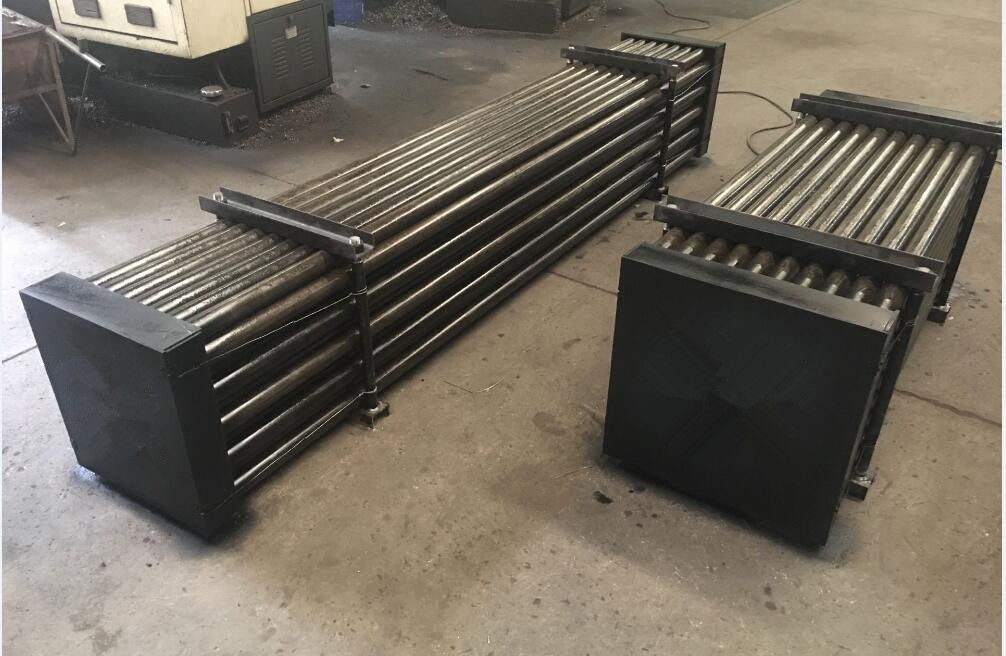

BQ NQ HQ PQ AW BW HW Drill Rods Drill Pipe For Geological Drilling
KSQ manufactures Wireline Drill Rods, from AQ to PQ, Parallel Threaded Drill Rods, DCDMA Sizes AW BW NW HW, and Metric sizes 42 mm to 90 mm, Tapered Threaded Drill Rods, DCDMA Sizes AWY to NWY, AWJ, BWJ and S75 Drill Rods.
Usually we are offering 50 mm, 60 mm, 76 mm, 89 mm, 114 mm, 127 mm. All DTH drill tubes are friction welded, and usually the threads are standard API connections, like 2 3/8" API REG, 3 1/2" API REG or API IF etc. According to customers request, from 1000 mm to 5000 mm length of tubes are available.
Specification
| Size | OD (mm) | ID (mm) |
| AQ | 44.7 | 37.3 |
| BQ | 55.7 | 46.1 |
| NQ | 70.0 | 60.2 |
| HQ | 89.0 | 78.0 |
| PQ (PHD) | 114.5 | 101.5 |
| AW/ AWJ/AWY | 43.7 | 30.7 |
| BW/ BWJ/ BWY | 54.0 | 38.0 |
| NW/ NWY | 66.8 | 51.0 |
| HW | 89.0 | 71.0 |
| 42mm | 42.0 | 30.0 |
| 50mm | 50.0 | 37.0 |
| 60mm | 60.0 | 48.0 |
| 70mm | 73.0 | 54.6 |
| 90mm | 89.0 | 69.0 |
| S75 | 71.0 | 61.0 |
About us
MIROC® Rock Drilling Tools are Rock Drilling Tools Brand by KSQ Tecnologies (Beijing) Co. Ltd.
KSQ Technologies (Beijing) Co. Ltd. provides exceptional technical know-how in development, production, and application. The company has adopted advanced manufacturing processes to ensure high quality steels and tungsten carbide inserts for its rock drilling accessories. Its personnel understand clients’ drilling needs, and have the service skills to recommend the right drilling tools for the job. Its experienced product developers can also create custom tools. Furthermore, the company’s development team introduces innovative products each year – tools that are rigorously tested in the field and proven
to perform beyond industry expectations.
MIROC® Rock Drilling and Ground Support Tools include:
Integral Rods
Plug Hole Rods
Tapered Drilling Tools
Extension Drilling Tools
Drifting and Tunneling Tools
Reaming Tools
Shank Rods
Shank Adapters (Striking Bars)
Down-the-hole (DTH) Bits
Down-the-hole (DTH) Hammers
