| Place of Origin: | China |
| Brand Name: | MIROC |
| Certification: | ISO |
| Model Number: | 4148300487-602 |
| Minimum Order Quantity: | 50 |
|---|---|
| Price: | negotiation |
| Packaging Details: | Carton Box or Wooden Box |
| Delivery Time: | 25 days |
| Payment Terms: | T/T or L/C |
| Supply Ability: | 20000 pieces per month |
| Material: | Tungsten Carbide | Use: | Masonry Drilling |
|---|---|---|---|
| Color: | Blue Green Black Etc | Place Of Origin: | Shangdong,China |
| High Light: | industrial drill bits,hardened steel drill bits |
||

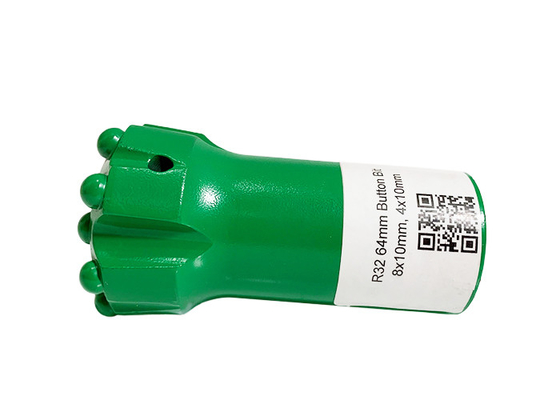

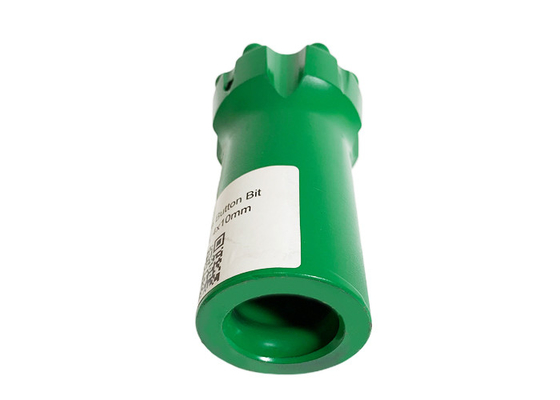

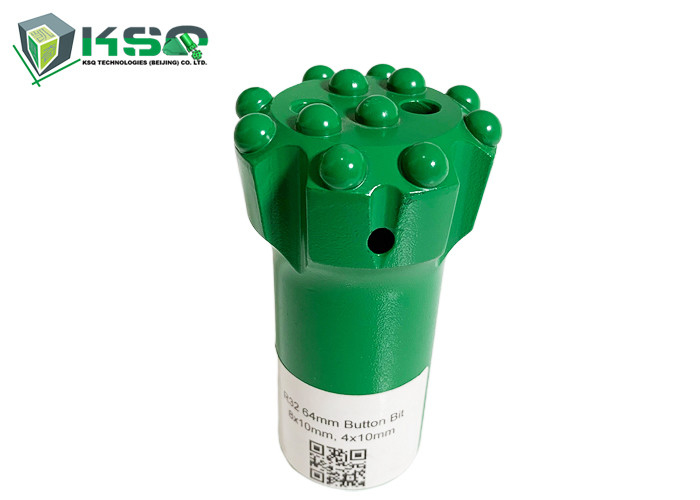

R32 Tungsten Carbide Mining Rock Drilling Tools Button Drill Bit
Description
This type of bit is a high speed drilling bit for soft to medium rock formations (between 50 Mpa to 150 Mpa compressive strength). Featuring spherical tungsten carbide inserts that is known to have strong configuration against carbide fracture.
• Widely used drifting and tunneling
• Bit face design is ideal for soft to medium rock formations
Color: Green or Based on Customer requirements
Material: Tungsten carbide and high strength alloy steel
Processing: CNC milling and proprietary heat treatment process
Type: R32 Button Bit Spherical Buttons
|
Type |
Thread Button Bit |
|
Material |
tungsten carbide |
|
Use |
Ore Mining, quarry,mining,blasting,construction,open bit etc. |
|
Advantages |
high quality and factory prices |
|
Boby type |
Normal type or retrac type |
|
Thread |
R22, R25, R28, R32, R35, R38, T38, T45, T51, ST58, GT60, GT68 |
|
Tungsten carbide |
Spherical, ballistic,Conical,Hemispherical |
|
Fact type |
Drop Center, Flat Face, Convex, Concave, etc |
|
Color |
According to your requirements |
Applications
• Underground mining
• Tunneling
Competitive Advantage
• High grade tungsten carbide inserts
• Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment
Specification
|
Product Code and Brief Description |
Angle |
Front Flushing Holes |
Side Flushing Holes |
Weight (kg) |
|
B641-R32-S, R32 Button Bit, Spherical Buttons |
35° |
1 |
1 |
0.6 |
|
B741-R32-S, R32 Button Bit, Spherical Buttons |
35° |
1 |
1 |
0.7 |
|
B743-R32-S-1, R32 Button Bit, Spherical Buttons |
35° |
1 |
2 |
0.7 |
|
B743-R32-S-2, R32 Button Bit, Spherical Buttons |
35° |
1 |
1 |
0.7 |
|
B843-R32-S, R32 Button Bit, Spherical Buttons |
40° |
2 |
- |
0.7 |
|
B745-R32-S, R32 Button Bit, Spherical Buttons |
30° |
1 |
1 |
0.8 |
|
B845-R32-S, R32 Button Bit, Spherical Buttons |
35° |
2 |
- |
0.8 |
|
B945-R32-S, R32 Button Bit, Spherical Buttons |
30° |
3 |
- |
0.8 |
|
B748-R32-S, R32 Button Bit, Spherical Buttons |
35° |
1 |
1 |
0.9 |
|
B848-R32-S, R32 Button Bit, Spherical Buttons |
40° |
2 |
- |
0.9 |
|
B948-R32-S-1, R32 Button Bit, Spherical Buttons |
40° |
3 |
- |
0.9 |
|
B948-R32-S-2, R32 Button Bit, Spherical Buttons |
30° |
3 |
- |
0.9 |
|
B751-R32-S, R32 Button Bit, Spherical Buttons |
35° |
1 |
1 |
1 |
|
B851-R32-S, R32 Button Bit, Spherical Buttons |
40° |
2 |
- |
1 |
|
B951-R32-S, R32 Button Bit, Spherical Buttons |
35° |
3 |
- |
1 |
|
B957-R32-S, R32 Button Bit, Spherical Buttons |
35° |
3 |
- |
1.3 |
|
B1064-R32-S, R32 Button Bit, Spherical Buttons |
35° |
3 |
- |
1.6 |
|
B1264-R32-S, R32 Button Bit, Spherical Buttons |
40° |
2 |
- |
1.6 |
|
B1276-R32-S, R32 Button Bit, Spherical Buttons |
40° |
2 |
- |
2.6 |
|
B748-R32-S, R32 Button Bit, Spherical Buttons |
35° |
1 |
2 |
1.0 |
|
B948-R32-S, R32 Button Bit, Spherical Buttons |
40° |
3 |
- |
0.9 |
|
B751-R32-S, R32 Button Bit, Spherical Buttons |
35° |
1 |
2 |
1.0 |
|
B957-R32-S-2, R32 Button Bit, Spherical Buttons |
35° |
3 |
- |
1.3 |
|
B964-R32-S, R32 Button Bit, Spherical Buttons |
30° |
3 |
- |
1.6 |
|
B1270-R32-S, R32 Button Bit, Spherical Buttons |
40° |
2 |
- |
2.6 |
|
B1376-R32-S, R32 Button Bit, Spherical Buttons |
35° |
2 |
- |
2.6 |
Delivery time: around 15-20days
Package: Carton or Wooden Box/Based on customers requirements
