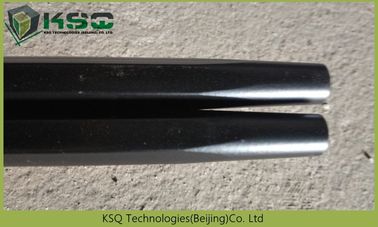

7° Hex Tapered Rod Wear Resistance For Mining Industry , Shank 22x108mm / 25x159mm

7° Hex Tapered Rod Wear Resistance For Mining Industry , Shank 22x108mm / 25x159mm

  • 7° Hex Tapered Rod Wear Resistance For Mining Industry , Shank 22x108mm / 25x159mm
  • 7° Hex Tapered Rod Wear Resistance For Mining Industry , Shank 22x108mm / 25x159mm
  • 7° Hex Tapered Rod Wear Resistance For Mining Industry , Shank 22x108mm / 25x159mm
  • 7° Hex Tapered Rod Wear Resistance For Mining Industry , Shank 22x108mm / 25x159mm
  • 7° Hex Tapered Rod Wear Resistance For Mining Industry , Shank 22x108mm / 25x159mm
7° Hex Tapered Rod Wear Resistance For Mining Industry , Shank 22x108mm / 25x159mm
Product Details:
Place of Origin: China
Brand Name: MIROC
Model Number: 4148300179-4148300198
Payment & Shipping Terms:
Minimum Order Quantity: 50
Price: negotiation
Packaging Details: Wooden Plate
Delivery Time: 25 days
Payment Terms: T/T or L/C
Supply Ability: 20000 pieces per month
Contact Now
Detailed Product Description
Color: Based On Customer Requirements Material: Tungsten Carbide And High Strength Alloy Steel
Processing:: CNC Milling And Proprietary Heat Treatment Process Type: 7° Taper Hex 22 Tapered Rod Shank 22 Mm X 108 Mm
High Light:

drill extension rod

,

rock drill rod

Description

Tapered equipment affords drillers the ability to change drilling bits whilst still using the same drilling rod. Different taper sizes have different characteristics when it comes to the “knock-off” index – the smaller angle will prevent the bit from spinning.

• Suitable for small hole range
• Widely used in Dimensional Stone Quarrying Industry
• Widely used in Underground Mining Industry

7° Hex Tapered Rod Wear Resistance For Mining Industry , Shank 22x108mm / 25x159mm 0


 7° Hex Tapered Rod Wear Resistance For Mining Industry , Shank 22x108mm / 25x159mm 1
Applications


• Underground Mining
• Tunneling



Competitive Advantage


High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance



specification

7° Hex Tapered Rod Wear Resistance For Mining Industry , Shank 22x108mm / 25x159mm 2


Part Number Product Code and Brief Description

Length

(mm)

Length (ft/inch) Weight (kg)
4148300179

H22-7D-600, 7° Taper Hex 22 Tapered Rod,

Shank 22 mm x 108 mm


600 2 1.93
4148300180

H22-7D-800, 7° Taper Hex 22 Tapered Rod,

Shank 22 mm x 108 mm

800 2 5/8 2.54
4148300181

H22-7D-1000, 7° Taper Hex 22 Tapered Rod,

Shank 22 mm x 108 mm

1000 3 2/7 3.15
4148300182

H22-7D-1200, 7° Taper Hex 22 Tapered Rod,

Shank 22 mm x 108 mm

1200 4 3.76
4148300183

H22-7D-1500, 7° Taper Hex 22 Tapered Rod,

Shank 22 mm x 108 mm

1500 5 4.68
4148300184

H22-7D-1600, 7° Taper Hex 22 Tapered Rod,

Shank 22 mm x 108 mm

1600 5 1/4 4.98
4148300185

H22-7D-1800, 7° Taper Hex 22 Tapered Rod,

Shank 22 mm x 108 mm

1800 6 5.59
4148300186

H22-7D-2000, 7° Taper Hex 22 Tapered Rod,

Shank 22 mm x 108 mm

2000 6 5/9 6.2
4148300187

H22-7D-2200, 7° Taper Hex 22 Tapered Rod,

Shank 22 mm x 108 mm

2200 7 2/9 6.81
4148300188

H22-7D-2300, 7° Taper Hex 22 Tapered Rod,

Shank 22 mm x 108 mm

2300 7 5/9 7.12
4148300189

H22-7D-2400, 7° Taper Hex 22 Tapered Rod,

Shank 22 mm x 108 mm

2400 7 7/8 7.42
4148300190

H22-7D-2500, 7° Taper Hex 22 Tapered Rod,

Shank 22 mm x 108 mm

2500 8 1/5 7.73
4148300191

H22-7D-2600, 7° Taper Hex 22 Tapered Rod,

Shank 22 mm x 108 mm

2600 8 1/2 8.03
4148300192

H22-7D-3000, 7° Taper Hex 22 Tapered Rod,

Shank 22 mm x 108 mm

3000 9 5/6 9.25
4148300193

H22-7D-3500, 7° Taper Hex 22 Tapered Rod,

Shank 22 mm x 108 mm

3500 11 1/2 10.78
4148300194

H22-7D-4000, 7° Taper Hex 22 Tapered Rod,

Shank 22 mm x 108 mm

4000 13 1/8 12.3
4148300195

H22-7D-4500, 7° Taper Hex 22 Tapered Rod,

Shank 22 mm x 108 mm

4500 14 3/4 13.83
4148300196

H22-7D-5000, 7° Taper Hex 22 Tapered Rod,

Shank 22 mm x 108 mm

5000 16 2/5 15.35
4148300197

H22-7D-5500, 7° Taper Hex 22 Tapered Rod,

Shank 22 mm x 108 mm

5500 18 16.88
4148300198

H22-7D-6000, 7° Taper Hex 22 Tapered Rod,

Shank 22 mm x 108 mm

6000 19 2/3 18.3



Delivery time: around 15-20days

Package: Carton or Wooden Box/Based on customers requirements

7° Hex Tapered Rod Wear Resistance For Mining Industry , Shank 22x108mm / 25x159mm 3



Our Services



KSQ Technologies (Beijing) Co. Ltd. is a company that shall cater to the needs of the construction and mining industries, with consideration on providing solutions to the following unique problems:

  • Hazardous environment
  • Acts, regulations, and other government guidelines that has to be followed
  • Significant differences in the way people work, mostly due to physical constraints
  • Avoiding downtime on major equipment which can cost tens of thousands of dollars per hour. The best solution with the most reasonable cost is a significant driver.
Company Information



KSQ Technologies (Beijing) Co. Ltd. is a diversified enterprise based in Beijing, China, offering a portfolio of products that help contribute to a better bottom line and increase workplace safety for the construction and mining industries.



KSQ Technologies (Beijing) Co. Ltd. has significant experience and know-how in the supply of materials, components, finished goods, specially designed/engineered equipment, and services from China. The company caters to medium to large scale clients who are doing projects and capital expansion, as well as to firms who require support with consumable products, maintenance, and repair operations. Our operations are based on the unique expertise of our people and knowledge with customer processes.



Our portfolio includes:

Consumables used in the mining and construction industries
Equipment used in the mining and construction industries
Spare parts used for the equipment we sell for the mining and construction industries
Green technologies, such as products that reduce electric consumption or use alternate sources of energy (solar, wind, etc)
