| Place of Origin: | China |
| Brand Name: | Mirco |
| Minimum Order Quantity: | negociated one |
|---|---|
| Price: | negociated one |
| Packaging Details: | wooden box or plastic box |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 60000 Piece/Pieces per Month |
| Model: | 11 Degree | Type: | Drill Bit |
|---|---|---|---|
| Machine Type: | Drilling Tool, Drilling Equipment | Material: | Carbon Steel |
| Processing Type: | Forging | Use: | Mining Drilling |
| Bit Diameter: | 32-mm | Product Name: | Tapered Button Drill Bit |
| High Light: | hardened steel drill bits,milling drill bits |
||
Description

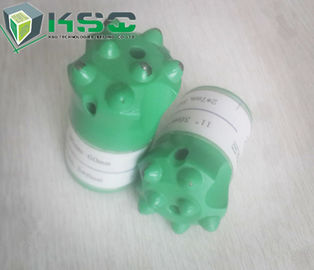

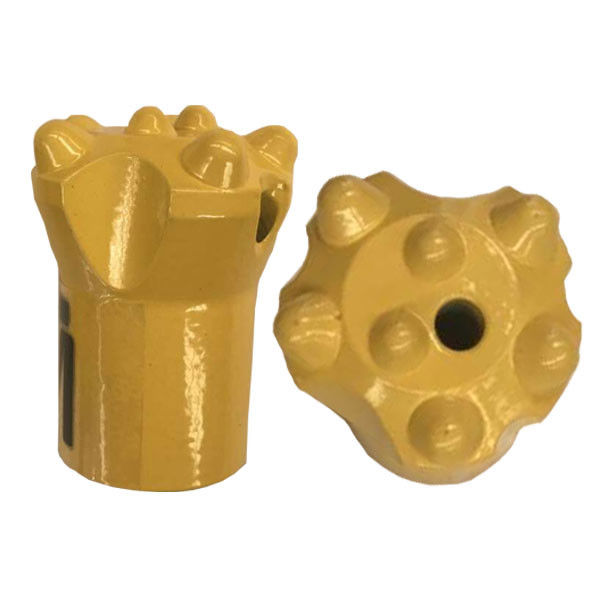

Tapered equipment affords drillers the ability to change drilling bits whilst still using the same drilling rod. Drillers choose tapered button bits for faster drilling penetration rate. Different taper sizes have different characteristics when it comes to the “knock-off” index – the smaller angle will prevent the bit from spinning. Used in drifting and tunneling.
1.Tapered button bits connect with tapered drill rod perfectly for drilling holes
2. Stable and mature welding technology ensure high quality of bits
3. Accurate dimension of taper degree perfectly matches the rods
4. work reliable and very cost-effective
5. High grade tungsten carbide inserts
6. Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment
we can design and manufature according to your requirment of diamater,number of flushing holes,carbide button shape and face shape.
.What can you get from KSQ?
1. Good service for the products purchased
2. Good quality control of products produced
3. Reasonable prices for the products offered
4. Best advices based on the experience and knowledge of well know what to do and how to do
| Taper button bit - For 22 mm (7⁄8") hex. Rod | ||||||||||
|
Bit Diameter | mm | 32 | 33 | 34 | 35 | 36 | 38 | 40 | 42 |
| inch | 1 1/4 | 1 2/7 | 1 1/3 | 1 3/8 | 1 3/7 | 1 1/2 | 1 4/7 | 1 2/3 | ||
|
Tungsten Carbide Button Number | 4, 6, 7 | ||||||||
| Taper/Grade | 6,7,11,12 degree | |||||||||
| Part Number | Bit Diameter |
Tungsten Carbide Button (No. x mm) |
||
| (mm) | (inch) | Front Buttons | Gauge Buttons | |
| 4148300157 | 32 | 1 1/4 | 1x8 | 3x8 |
| 4148300158 | 33 | 1 2/7 | 2x7 | 5x7 |
| 4148300159 | 34 | 1 1/3 | 2x7 | 4x7 |
| 4148300160 | 35 | 1 3/8 | 2x7 | 5x8 |
| 4148300161 | 36 | 1 3/7 | 1x8 | 3x9 |
| 4148300162 | 36 | 1 3/7 | 2x7 | 5x8 |
| 4148300163 | 38 | 1 1/2 | 1x8 | 3x9 |
| 4148300164 | 38 | 1 1/2 | 2x7 | 5x8 |
| 4148300165 | 38 | 1 1/2 | 2x7 | 5x9 |
| 4148300166 | 40 | 1 4/7 | 1x8 | 3x9 |
| 4148300167 | 40 | 1 4/7 | 1x9 | 3x10 |
| 4148300168 | 40 | 1 4/7 | 1x9 | 3x9 |
| 4148300169 | 40 | 1 4/7 | 2x7 | 5x9 |
| 4148300170 | 42 | 1 2/3 | 1x8 | 3x9 |
| 4148300171 | 42 | 1 2/3 | 1x9 | 3x10 |
| 4148300172 | 42 | 1 2/3 | 1x9 | 3x9 |
| 4148300173 | 42 | 1 2/3 | 2x8 | 5x9 |
| Dia.(mm) | Taper | Buttons | Flusing Holes | Weight(kg) | ||
| Gauge | Front | |||||
| Qty×Dia. | Qty× Dia. | Front | Side | |||
| 32 | 7 degrees | 2x7 | 5x7 | 1 | 1 | 0.3 |
| 33 | 7 degrees | 2*7 | 5*7 | 1 | 1 | 0.3 |
| 35 | 7 degrees | 2*7 | 5*8 | 1 | 1 | 0.36 |
| 38 | 7 degrees | 2*7 | 5*9 | 1 | 1 | 0.41 |
| 41 | 7 degrees | 2*7 | 5*9 | 1 | 1 | 0.41 |
| 33 | 12 degrees | 2*7 | 6*7 | 2 | 1 | 0.31 |
| 35 | 12 degrees | 2*7 | 6*7 | 2 | 1 | 0.35 |
| 38 | 11 degrees | 2*8 | 3*9 | 1 | 1 | 0.39 |
| 40 | 11 degrees | 2*8 | 3*9 | 1 | 1 | 0.4 |
| 40 | 11 degrees | 2*9 | 3*9 | 1 | 1 | 0.4 |
Packaging:Carton or Wooden Box
KSQ Technologies (Beijing) Co. Ltd. is a company that shall cater to the needs of the construction and mining industries, with consideration on providing solutions to the following unique problems:
Company Information
MIROC® Rock Drilling Tools are Rock Drilling Tools Brand by KSQ Tecnologies (Beijing) Co. Ltd.
KSQ Technologies (Beijing) Co. Ltd. provides exceptional technical know-how in development, production, and application. The company has adopted advanced manufacturing processes to ensure high quality steels and tungsten carbide inserts for its rock drilling accessories. Its personnel understand clients’ drilling needs, and have the service skills to recommend the right drilling tools for the job. Its experienced product developers can also create custom tools. Furthermore, the company’s development team introduces innovative products each year – tools that are rigorously tested in the field and proven
to perform beyond industry expectations.
MIROC® Rock Drilling and Ground Support Tools include:
Integral Rods
Plug Hole Rods
Tapered Drilling Tools
Extension Drilling Tools
Drifting and Tunneling Tools
Reaming Tools
Shank Rods
Shank Adapters (Striking Bars)
Down-the-hole (DTH) Bits
Down-the-hole (DTH) Hammers
