| Place of Origin: | Shangdong,China |
| Brand Name: | MIROC |
| Certification: | ISO9001:2000 |
| Model Number: | Retractable Drill Bit |
| Minimum Order Quantity: | 5 Pieces |
|---|---|
| Price: | negotiation |
| Packaging Details: | Carton Box or Wooden Box |
| Delivery Time: | 10-22days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 30000pcs per month |
| Type: | Retractable Drill Bit | Thread: | T45,89mm |
|---|---|---|---|
| Processing Type: | Forging | Use: | Mining,Tunneling,Quarrying,Construction |
| Colour: | Yellow | Button: | Parabolic Or Hemispherical |
| High Light: | mining drill bits,spherical drill bit |
||

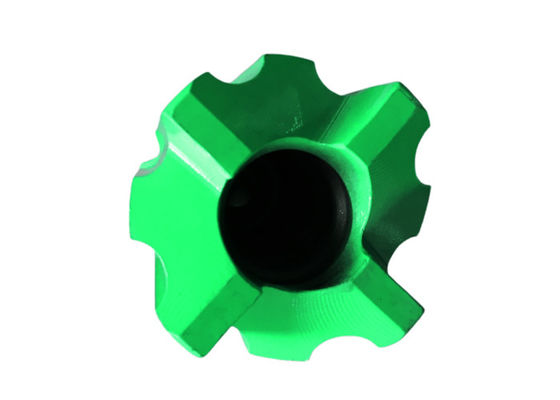

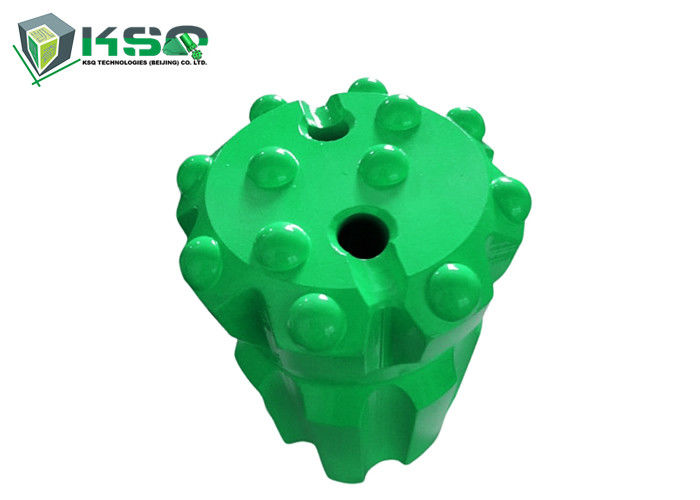

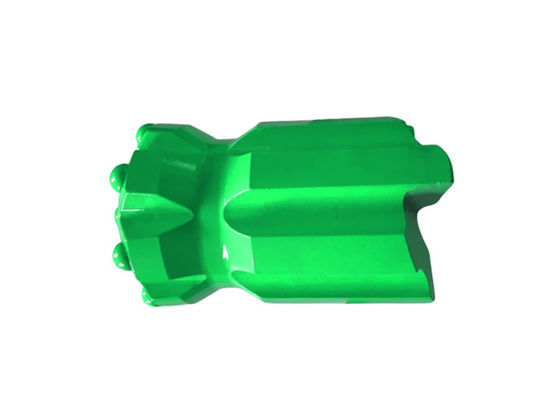

T45 Retractable Drill Bit , Threaded Button Bits Rock Drilling Drill Bits
Description
Rock drilling tools are used by many drilling professionals related to mining,construction,tunneling,quarrying projects,around the globe. KSQ company can offer you competitive advantage products, down the hole hammer and bits(dth hammers and dth bits),drill pipes, threaded drilling tools, reverse circulation hammers and bits, shank adapters and coupling sleeves for drilling equipment.
|
Product Name: |
different rock hardness drilling button bit |
|
Description: |
For different rock hardness mining,tunneling,quarrying button bit Button bit Made with high quality of best quality alloy steel bar and tungsten carbide, through heat treatment. |
|
Material: |
Alloy steel bar and tungsten carbide bit |
|
MOQ: |
trial order 1-5pcs |
|
Body Type |
Normal type and retract type |
|
Thread type |
R25,R28,R32,R38,T38,T45,T51,ST58,ST68 |
|
Diameter |
32mm-152mm |
|
Button bit shape |
Spherical and Ballistic |
|
Face shape |
Flat shape and Drop-center shape |
Button bit and Insert types
Spherical Button Characteristics:
1. Universal button
2. Good wear resistance
3. Best suited for hard ground
4. 27000-48000PSI(180 to 320Mpa)
5. Suited for abrasive to very abrasive drilling conditions
Ballistic Button Characteristics:
1. Fast Penetration
2. Best suited for soft rock
3. 10000-20000PSI(70 to 140Mpa)
4. Suited for non-abrasive drilling conditions
Applications of rock drilling Bit
1. Widely used drifting and tunneling
2. Bit face design is ideal for soft to medium rock formations
3. With retrac wings to help guide the bit in and out of the hole
4. Effective in straight hole drilling
Competitive Advantage
1. Very competitive price
2. Professinal service team and special after sale team
3. Fast response about all questions from clients
4. Design based on your specific requirements
KSQ Technologies (Beijing) Co. Ltd. is a company that shall cater to the needs of the construction and mining industries, with consideration on providing solutions to the following unique problems:
Hazardous environment
Acts, regulations, and other government guidelines that has to be followed
Significant differences in the way people work, mostly due to physical constraints
Avoiding downtime on major equipment which can cost tens of thousands of dollars per hour. The best solution with the most reasonable cost is a significant driver.
Company Information
KSQ Technologies (Beijing) Co. Ltd. has significant experience and know-how in the supply of materials, components, finished goods, specially designed/engineered equipment, and services from China. The company caters to medium to large scale clients who are doing projects and capital expansion, as well as to firms who require support with consumable products, maintenance, and repair operations.
