| Place of Origin: | China |
| Brand Name: | Mirco |
| Minimum Order Quantity: | negociated one |
|---|---|
| Price: | negociated one |
| Packaging Details: | wooden box or plastic box |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 10000 Piece/Pieces per Month |
| Model: | T45 | Type: | Drill Bit |
|---|---|---|---|
| Machine Type: | Drilling Tool, Drilling Equipment | Material: | High Manganese Steel |
| Processing Type: | Forging | Use: | Mining Drilling |
| Bit Diameter: | 76,89,102,115mm | Boby Type: | Retrac Type |
| Product Name: | Retrac Button Drill Bit | ||
| High Light: | industrial drill bits,hardened steel drill bits |
||

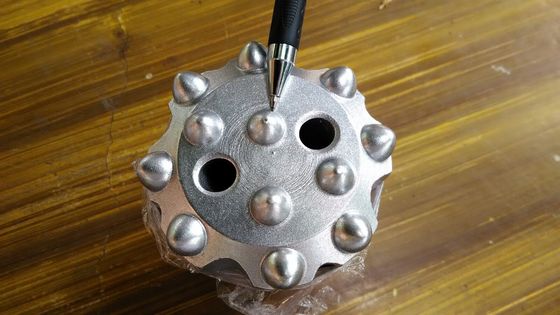

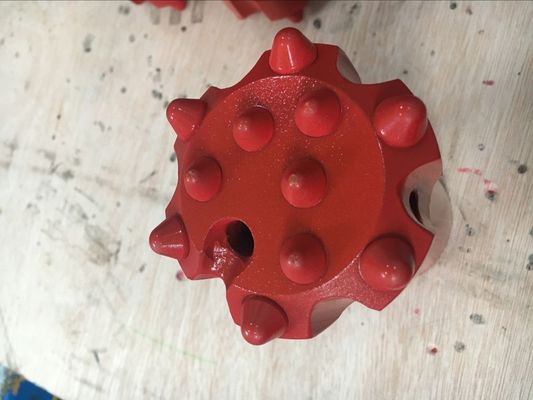

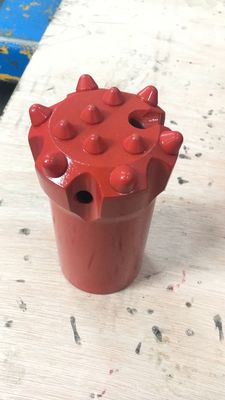

For Aisan market, T45 76mm bit with conical button drill bit
Thread Drill Button Bit
Thread button drill bits are made by high quality alloy steel bar and tungsten carbides.we can design customized thread button drill bits according to different drilling application, and custom drill bits are applicable to drill soft rock, loose-medium rock and hard rock.
(1)Thread: R22, R25, R28, R32, R35, R38, T38, T45, T51, ST58, T60
(2)Diameter: 38-127mm.
(3)Body: Normal body or retrac body
(4)Button size: Spherical button/Ballistic button/ Conical button
T45 76mm bit
| Dia.(mm) | Thread Connection | Buttons | Flusing Holes | Weight(kg) | ||
| Gauge | Front | |||||
| Qty×Dia. | Qty× Dia. | Front | Side | |||
| 76 | T38 | 7×12 | 4×10 | 3 | 1 | 3.00 |
| 76 | T45 | 8×11 | 6×10 | 4 | - | 3.00 |
| 78 | T38 | 8×11 | 5×11 | 4 | - | 3.10 |
| 89 | R32 | 8×12 | 6×11 | 4 | - | 3.50 |
| 89 | R38 | 8×12 | 6×11 | 4 | - | 3.50 |
| 89 | T45 | 8×12 | 6×11 | 4 | - | 3.50 |
| 89 | T51 | 8×12 | 6×11 | 4 | - | 4.50 |
| 102 | T45 | 8×14 | 6×13 | 4 | - | 5.50 |
| 102 | T51 | 8×14 | 6×13 | 4 | - | 5.50 |
| 105 | R38 | 8×14 | 6×13 | 4 | - | 4.50 |
| 115 | R38 | 8×14 | 7×13 | 4 | - | 4.80 |
| 115 | T51 | 8×14 | 7×13 | 4 | - | 4.80 |
Delivery time: around 15-20days
Package: Plywood box
About us
MIROC® Rock Drilling Tools are Rock Drilling Tools Brand by KSQ Tecnologies (Beijing) Co. Ltd.
KSQ Technologies (Beijing) Co. Ltd. provides exceptional technical know-how in development, production, and application. The company has adopted advanced manufacturing processes to ensure high quality steels and tungsten carbide inserts for its rock drilling accessories. Its personnel understand clients’ drilling needs, and have the service skills to recommend the right drilling tools for the job. Its experienced product developers can also create custom tools. Furthermore, the company’s development team introduces innovative products each year – tools that are rigorously tested in the field and proven
to perform beyond industry expectations.
MIROC® Rock Drilling and Ground Support Tools include:
Integral Rods
Plug Hole Rods
Tapered Drilling Tools
Extension Drilling Tools
Drifting and Tunneling Tools
Reaming Tools
Shank Rods
Shank Adapters (Striking Bars)
Down-the-hole (DTH) Bits
Down-the-hole (DTH) Hammers
