Pdc Rock Drill Tools Diamond Core Bit Hard With High Penetration Rates

Pdc Rock Drill Tools Diamond Core Bit Hard With High Penetration Rates

  • Pdc Rock Drill Tools Diamond Core Bit Hard With High Penetration Rates
  • Pdc Rock Drill Tools Diamond Core Bit Hard With High Penetration Rates
  • Pdc Rock Drill Tools Diamond Core Bit Hard With High Penetration Rates
Pdc Rock Drill Tools Diamond Core Bit Hard With High Penetration Rates
Product Details:
Place of Origin: China
Brand Name: MIRCO
Payment & Shipping Terms:
Minimum Order Quantity: negociated one
Price: negociated price
Packaging Details: playwood box
Delivery Time: 15-20 days
Payment Terms: Western Union, L/C, T/T
Supply Ability: 50000 Piece/Pieces per Month
Contact Now
Detailed Product Description
Item: PDC Drill Bit Type: Core Bit
Machine Type: Drilling Tool Material: Stainless Steel, Cobalt Steel Alloy
Processing Type: Forging Model: PQ NQ HQ
High Light:

tungsten carbide drill bits

,

stone drilling tools

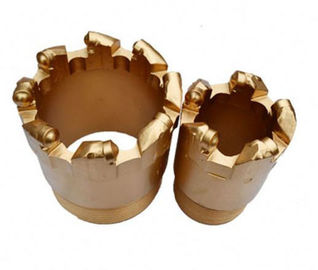

PDC Diamond Core Bit model with NQ/HQ/PQ at high penetration rates



PDC bits are made for cutting softer formations at high penetration rates. They typically have round PDC
cutters that can be replaced, extending the life of the bit.



PDC core bit is widely used for water well drilling, geotechnical and environmental drilling, mineral exploration, geothermal wells, geothermal drilling, construction and utility work.

PDC core bit include:

PDC single tube core bit

PDC double tube core bit

PDC wire line core bit



PDC core bits incorporating PDC(Polycrystalline Diamond Compact) cutters can be very cost effective and very productive, which are applied to rock formations of f≤10,mainly used for geological and hydrology drilling.
We have two main types of PDC core bits are available: PDC rib core bits and PDC flat core bit.
The PDC rib core bits are applied to rock formation of f≤6, like mudstone, sandstone, etc.
And the PDC flat core bits are applied to rock formations of f≤10,like limestone, granite, etc.



Feature

  • Our diamond drill bit are suitable for wide range of geological formations from the softest to the hardest rock, widely used in all kinds of drillings for prospecting, water and electricity building and construction industry of road , railway ,bridge and building taking out core examine stake .
  • High quickly drill speed and long time drill life.
  • Materials: super man-made diamond. Copper powder and so on.

Pdc Rock Drill Tools Diamond Core Bit Hard With High Penetration Rates 0Pdc Rock Drill Tools Diamond Core Bit Hard With High Penetration Rates 1

Size:

size:73 94 112 131 151 171 200 220 NQ HQ PQ etc
It can be redesigned base on customers' requirements.



Size Available:

  •  A-Gauge Core Bits: AQ, AQ-RSG, AWG(AX), AWM, AWT, LTK48
  • B-Gauge Core Bits: BQ, BQ-RSG, BQ-2.400, BQ3, BWG(BX), BWM, BWT, LTK60, TBW
  •  N-Gauge Core Bits: NQ, NQ-3.032, NQ2, NQ2-RSG, NQ3/NQTT, NQ3-RSG, NQ3-3.032, NMLC, NWG(NX), NWM, NWT, TNW
  •  H-Gauge Core Bits: NQ, HQ-RSG, HQ-3.830, HQ-3.895, HQ3/HQTT, HQ3-RSG, HQ3-3.380, HQ3-3.895, HMLC, HWF-Long, HWF-Short, HWG(HX), HWT
  • P- Gauge Core Bits: PQ, PQ3, PWF-Long, PWF-Short
  • S- Gauge Core Bits: SWF-Long, SWF-Short
  • U- Gauge Core Bits: UWF-Long, UWF-Short
  • Z- Gauge Core Bits: ZWF-Long, ZWF-Short
  • T, TT, T2 &TB Series Metric Core Bits: T36, TT46, T2-46, TB56, TT56, T2-56, T2-66, T2-76,T2-76 coreline, T2-86, T2-86 coreline, T2-101, T2-101 coreline
  • T6 Series Metric Core Bits: T6-76, T6-86, T6-101, T6-116, T6-131, T6-146
  • T6S Series Metric Core Bits: T6S-76, T6S-86, T6S-101, T6S-116, T6S-131, T6S-146
  • B Series(ISO3552-1) Metric Core Bits: B36, B46, B56, B65, B76, B86, B101, B116, B131, B146
  • Chinese Standard Metric Core Bits for Single Tube Core Barrels: φ36, φ46, φ56, φ59, φ75, φ91, φ110, φ130, φ160, φ170, φ219, φ275
  •  Chinese Standard Metric Core Bits for Double Tube Core Barrels: φ56, φ59, φ75, φ91
  •  Chinese Standard Metric Core Bits for Wireline Core Barrels: φ59, φ75, φ91



Core Barrel Specification Outside Set Diameter lnside Set Diameter
Maximum Minimum Maximum Minimum
lnches mm lnches mm lnches mm lnches mm
AQ 1.880 47.75 1.870 47.5 1.607 27.10 1.057 26.85
BQ 2.350 59.69 2.340 59.44 1.438 1.428 36.52 36.27
NQ 2.970 75.44 2.960 75.19 1.880 47.75 1.870 47.50
HQ 3.770 95.76 3.755 95.38 2.505 63.63 2.495 63.38
PQ 4.815 122.3 4.795 121.8 3.350 85.09 3.340 84.84
T2-101 3.981 101.12 3.971 100.8 3.300 83.82 3.290 83.57
T6-101 3.981 101.12 3.971 100.8 3.115 79.12 3.105 78

Packaging & Shipping

1. Delivery time: around 15-20days

2. Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air

Bulk order: we suggest by air or by sea.

3. Package : Carton or Wooden Box

Pdc Rock Drill Tools Diamond Core Bit Hard With High Penetration Rates 2



Company Information



1. Our factory has been specialized in manufacturing drilling tools and spare parts since 1980.

2. We have advanced technology and equipment.

3. Our technician has more than 25 year’s professional working experience.

4. Rock drilling tools are exported throughout the world. Main market: Norway, Turkey, USA,

Canada, Australia, Brazil, Uruguay, Iran, Philippines, Thailand, India, etc.





FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: No, we dont offer free samples, it need to pay first but we will return it back in future orders

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
