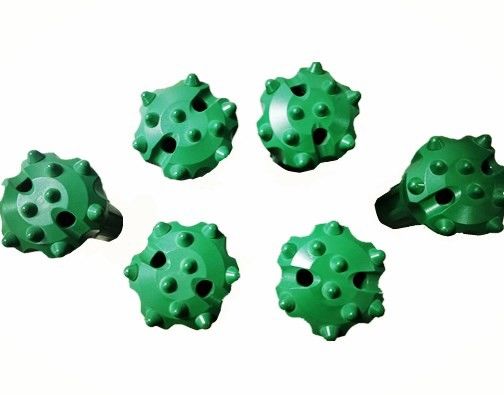

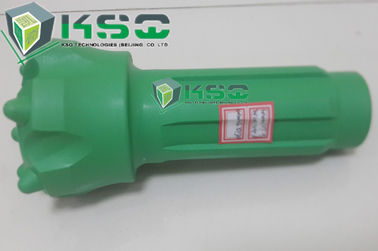

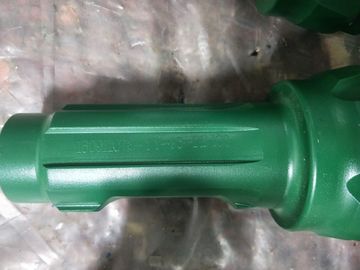

CIR80 CIR90 90mm DTH Bit , Low Air Pressure Down The Hole Hammer Bit

CIR90 90mm Low air pressure Down The Hole Hammer Bit

	Concave Face	The all-around application bit face specifically for medium hard and homogenerous rock formations. Good hole deviation control and good flushing capacity
	Ballistic Button	Ballistic buttons are usually used as front buttons of DTH bits, suitable for medium abrasive and medium hard formation. They can also be used as gauge buttons if the rock is soft.
	Concave Face
	Spherical Button	Spherical/Domed/Round Button Domed/Round Buttons are usually used as gauged buttons of DTH bits, suitable or very abrasive and very hard formations.
	Convex Face	For high penetration rates in soft to medium-hard with low to medium air pressure. It is the most resistance to steel wash, any may reduce the load and wear on gauge buttons, but poor hole deviation control.
	Ballistic Button
	Flat Face	This kind of face shape is suitable for hard to very hard and abrasive rock formation is applications with high air pressure. Good penetration rates and resistance to steel wash.
	Spherical Button

In DTH hammers, the rock drilling bit is a continuation of the shank, which the rock drill piston strikes directly. Since the piston is in direct contact with the drill bit, little energy is lost. This gives DTH hammers a nearly constant penetration rate regardless of hole length.

Applications

1. Underground mining

2. Quarry benching operations

3. Water well drilling

DTH Drill Bits/DTH hammer bits/DTH биты молоток/DTH martilyo bits/DTH บิตค้อน/DTH martillo de bits/สว่านเจาะลึก DTH/Brocas DTH

Features and Advantages:

We take pride in being the only manufacturers in China that has a diverse line of DTH bits that range from 3"-47"(76mm~1200mm) in diameter with most the leading hammer shanks.

Made from high quality alloy steel and advanced heat-treatment, our bits are ensured extreme protection against wear and fatigue. They're also available in four different bit-head designs - Convex, Flat, Concave and Drop center face, and four different inserts-Spherical,Ballistic,Semi-ballistic,Two-Step to tackle any challenge and rock formations.
