| Place of Origin: | China |
| Brand Name: | MIROC |
| Certification: | SGS certified, ISO |
| Model Number: | CIR80 CIR90 DTH Hammer |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | wooden box |
| Delivery Time: | 15-20days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union |
| Supply Ability: | 20000pcs per month |
| Color:: | Green/Yellow | Application:: | Water Well Drilling, Quarry Drilling, Construction Rock Drilling |
|---|---|---|---|
| Bit Shank Type:: | CIR80 CIR90 Shank | Hammer Type: | CIR80 CIR90 DTH Hammer Low Air Pressure |
| Bit Diameter: | 90mm 93mm 95mm | Drilling Method: | DTH Drilling |
| Product Name: | CIR80 CIR90 DTH Hammer , Low Air Pressure Down The Hole Hammer | ||
| High Light: | down hole hammer,down the hole hammer |
||

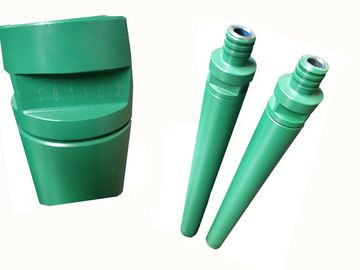

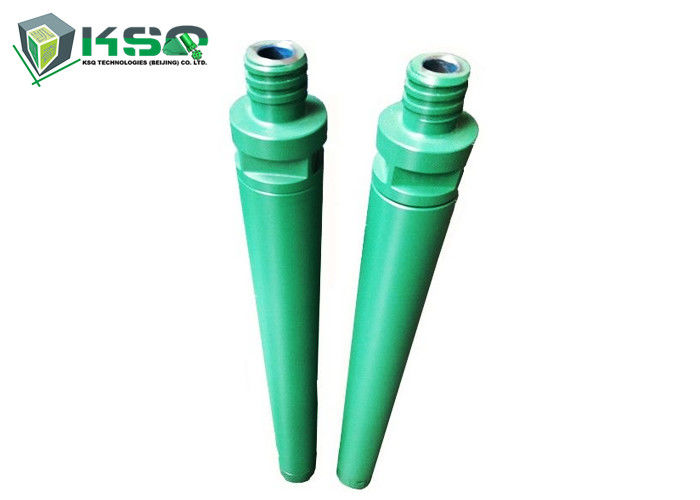

CIR80 CIR90 DTH Hammer , Low Air Pressure Down The Hole Hammer
Applications
1. Underground mining
2. Quarry benching operations
3. Water well drilling
| Low Air Pressure DTH Hammer Without Foot Valve | ||
 |
Part Name | Quantity |
| 1.Top sub | 1 | |
| 2. Washer retaining | 1 | |
| 3. Spacer | 1 | |
| 4.Rubber ring | 1 | |
| 5. Check valve seal | 1 | |
| 6. Check valve | 1 | |
| 7. Spring | 1 | |
| 8. Valve cap | 1 | |
| 9. Valve | 1 | |
| 10. Guide pipe | 1 | |
| 11. Distributor | 1 | |
| 12. Piston | 1 | |
| 13. Casing | 1 | |
| 14. Cylinder | 1 | |
| 15. Bearing | 1 | |
| 16. Rubber block | 1 | |
| 17. Spring | 1 | |
| 18. Pin | 1 | |
| 19. Chuck | 1 | |
| 20. Key | 1 | |
| Technical Data | ||
| Model | CIR90 | |
| Length (Without Bit) | 749.5mm | |
| Weight (Without Bit) | 22.00kg | |
| External Diameter | φ80mm | |
| Bit Shank | CIR90 | |
| Hole Range | φ90 - φ130mm | |
| Connection Thread | T48x10x2 | |
| Wrench Flat | 20x60mm | |
| Piston weight | 4.2kg | |
| Recommended Rotation Speed | 0 - 50 rpm | |
| Air Consumption | 0.6Mpa: 7.2 m³/ min | |
| Feed force | ≤500kgs | |
DTH Drill Bits/DTH hammer bits/DTH биты молоток/DTH martilyo bits/DTH บิตค้อน/DTH martillo de bits/สว่านเจาะลึก DTH/Brocas DTH
