| Place of Origin: | China |
| Brand Name: | MIROC |
| Model Number: | Taper Button Bit |
| Minimum Order Quantity: | 10 Pieces |
|---|---|
| Price: | negotiation |
| Packaging Details: | Carton Box or Wooden Box |
| Delivery Time: | 25 days |
| Supply Ability: | 20000 pieces per month |
| Type: | DTH Button Bits | Material: | Tungsten Carbide, Carbide |
|---|---|---|---|
| Use: | Metal Drilling, Quarry Stone | Name: | Tlas Copco Rock Drill Tungsten Carbide 152mm 165mm Dth Button Bit |
| Advantage: | Factory Price | Button Shape: | Round/parabolic/Ballistic/sharp/falt Bottons |
| High Light: | industrial drill bits,milling drill bits |
||

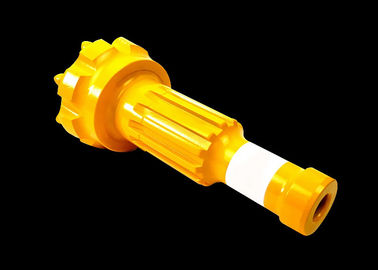

Atlas Copco Rock Drill Tungsten Carbide 152mm 165mm Dth Button Bit
| Drill Bit Series | Bit Dia (mm) | Gauge Buttons | Front Buttons | Weight(Kg) |
| Cop32 | 85 | 6×φ14 | 4×φ12 | 4.2 |
| 90 | 6×φ14 | 5×φ12 | 4.5 | |
| 95 | 7×φ14 | 5×φ12 | 4.7 | |
| 100 | 8×φ14 | 6×φ12 | 5 | |
| 105 | 8×φ14 | 6×φ13 | 5.3 | |
| HD35(IR3.5, Cop34) | 85 | 6×φ14 | 4×φ12 | 4.2 |
| 90 | 6×φ14 | 5×φ12 | 4.5 | |
| 95 | 7×φ14 | 5×φ12 | 4.8 | |
| 100 | 8×φ14 | 6×φ12 | 5 | |
| 105 | 8×φ14 | 6×φ13 | 5.5 | |
| HD45(DHD340A, Cop44) | 105 | 6×φ14 | 5×φ13 | 8.5 |
| 110 | 7×φ14 | 6×φ13 | 8.8 | |
| 115 | 8×φ14 | 7×φ13 | 9 | |
| 120 | 8×φ14 | 8×φ13 | 9.8 | |
| 127 | 9×φ14 | 9×φ14 | 11 | |
| HD55(DHD350R, Cop54) | 133 | 7×φ16 | 6×φ14 | 16 |
| 140 | 8×φ16 | 7×φ14 | 16.5 | |
| 146 | 8×φ16 | 8×φ14 | 17 | |
| 152 | 8×φ16 | 7×φ16 | 17.5 | |
| 165 | 8×φ16 | 8×φ16 | 18.5 | |
| HD65(DHD360, Cop64) | 152 | 8×φ16 | 8×φ16 | 22 |
| 165 | 8×φ18 | 8×φ16 | 24 | |
| 178 | 8×φ18 | 8×φ16 | 26 | |
| 190 | 9×φ18 | 9×φ16 | 28 | |
| 203 | 10×φ18 | 10×φ16 | 29.5 | |
| HD85(DHD380, Cop84) | 195 | 9×φ18 | 9×φ18 | 34 |
| 203 | 10×φ18 | 10×φ18 | 36 | |
| 216 | 12×φ18 | 12×φ18 | 45 | |
| 254 | 12×φ18 | 20×φ18 | 58 | |
| 305 | 12×φ18 | 30×φ18 | 75 |
| NO. | Advantages | Description |
| 1 | Quality | 95% quality similarity with world top class brands,such as atlas ingersoll rand etc. |
| 2 | Shank Type | Our products can be suitable for many types of DTH Hammer, such as QL, Mission, COP, IR, SD,HD,DHD,BR,CIR etc. |
| 3 | Materials | Our products adopt high-quality raw materials, advanced technology and passed through strictly inspection, making sure the high quality of every dth bits |
| 4 | Advantages | Our dth bits can transmit intensive impact energy into the rock with the least loss of energy, which can help you improve efficiency and reduce costs |
| 5 | Product life | We select high-strength structure alloy steel and carbides with best quality to ensure the drill body and alloy body can achieve uniform wear, thus the service life of bits will be increased. |
