T45 620mm High Strength Drill Shank Adapter For Bolting / Bench Drilling

T45 620mm High Strength Drill Shank Adapter For Bolting / Bench Drilling

T45 620mm High Strength Drill Shank Adapter For Bolting / Bench Drilling
T45 620mm High Strength Drill Shank Adapter For Bolting / Bench Drilling
T45 620mm High Strength Drill Shank Adapter For Bolting / Bench Drilling
Product Details:
Place of Origin: China
Brand Name: MIROC Shank Adapter
Certification: ISO
Model Number: Shank Adapter
Payment & Shipping Terms:
Minimum Order Quantity: 5 Piece Shank Adapter
Price: Negotiable
Packaging Details: Carton Box or Wooden Box
Delivery Time: 25 days
Supply Ability: 20000 pieces per month
Contact Now
Detailed Product Description
Product: Shank Adapter Diameter: 45mm 51mm
Length: 620mm Thread: T38 T45
Color: Black Model: Furukawa HD 709 / Everdigm ED 150 / Jun Jin Jet 8
High Light:

drill bit shank adapter

,

threaded shank drill bit adapter

T45 620mm shank adapter for rock drill ( drifter ) Furukawa HD 709 / Everdigm ED 150 / Jun Jin Jet 8



While every component in the drill string is crucial, the shank adapter must be engineered to withstand the most extreme stress. Its function is to transmit impact energy from the rock-drill piston, as well as rotation torque, into the drill string without energy losses. It must withstand and transmit up to 6300 blows per minute from the piston continually, with great endurance and dependability. With this in mind, we manufactures premium quality shank adapters for most brands of rock drill.



Shank Adapter Specification

Furukawa SHANK ADAPTER
Furukawa HD 90 Thread Diameter Length Flushing Weight Part Number
mm mm kg
R38 40 515 - 4.3 414832528
Furukawa HD 190 Thread Diameter Length Flushing Weight Part Number
mm mm kg
R38 40 500 - 4.5 414832529
T38 40 500 - 4.5 414832530
Furukawa HD 300 Thread Diameter Length Flushing Weight Part Number
mm mm kg
T38 45 654 16 6.0 414832531
T45 45 654 16 6.7 414832532
Furukawa HD 609 Thread Diameter Length Flushing Weight Part Number
mm mm kg
T38 45 690 - 6.3 414832533
T45 45 690 - 6.4 414832534
Furukawa HD 612 RP Thread Diameter Length Flushing Weight Part Number
mm mm kg
T45 51 884 - 11.2 414832535
Furukawa PD200 Thread Diameter Length Flushing Weight Part Number
mm mm kg
T38 45 485 14.3 5.0 414832536
T45 45 485 14.3 5.4 414832537



Hydraulic shanks generally have at least a 5 to 14-spline configuration. Pneumatic shanks tend to have internal or through-flushing. They can be identified by their lugs or 4-spline configuration.

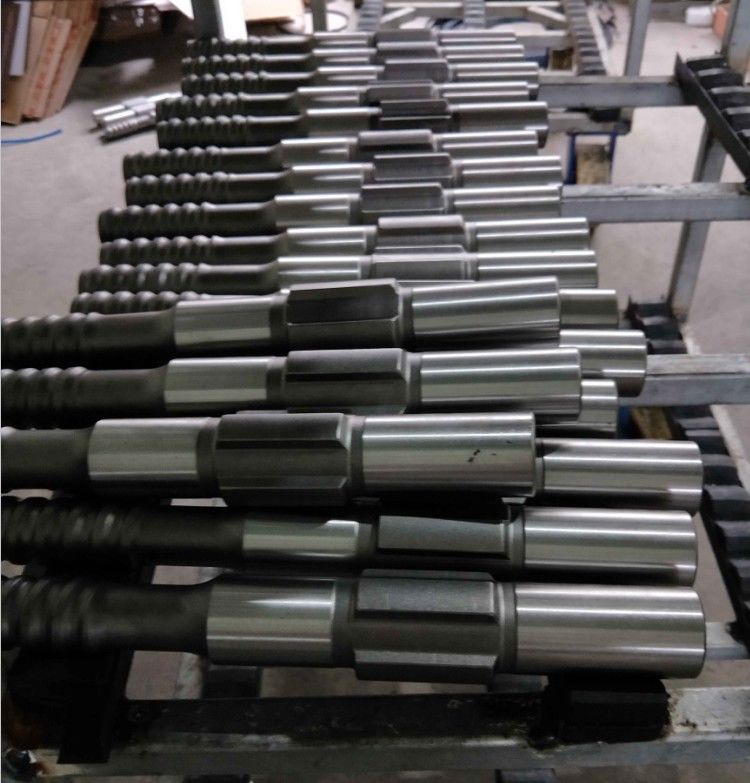

T45 620mm High Strength Drill Shank Adapter For Bolting / Bench Drilling 0

T45 620mm High Strength Drill Shank Adapter For Bolting / Bench Drilling 1

Competitive Advantage

  • High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance.
  • Accurate dimension of thread perfectly matches the rock drill
  • Work reliable and very cost-effective

Applications



• Bolting, drifting

• Bench drilling
• Production drilling


We can design and manufacture the personalized products to meet your specical apllication, such as changing the length, diameter etc.
