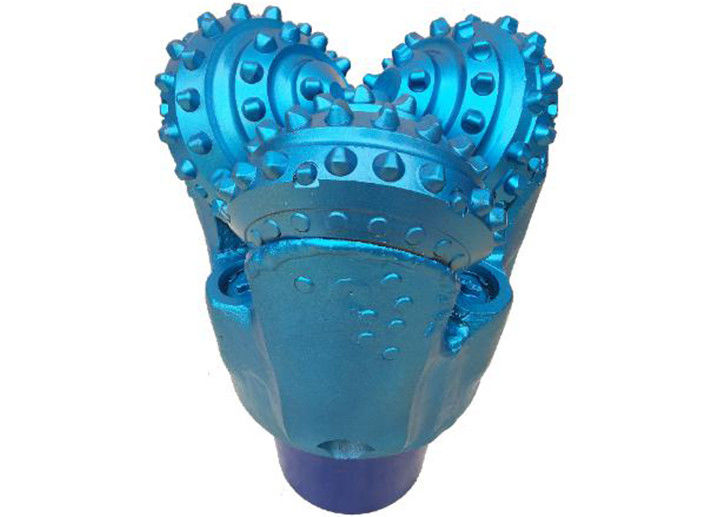

447 IADC Code 8-1/2" Tungsten Carbide Tricone Drill Bit For Hard Soils Blue Color

447 IADC Code 8-1/2" Tungsten Carbide Tricone Drill Bit For Hard Soils Blue Color

447 IADC Code 8-1/2" Tungsten Carbide Tricone Drill Bit For Hard Soils Blue Color
447 IADC Code 8-1/2
447 IADC Code 8-1/2" Tungsten Carbide Tricone Drill Bit For Hard Soils Blue Color
Product Details:
Place of Origin: China
Brand Name: Mirco
Certification: SGS,ISO
Model Number: Tricone Rock bit
Payment & Shipping Terms:
Minimum Order Quantity: negociated one
Price: negociated one
Packaging Details: wooden box or steel box
Delivery Time: 10-30 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000 Piece/Pieces per Month
Contact Now
Detailed Product Description
Type: Steel Tooth Tricone Bit Machine Type: Drilling Tool
Material: Carbide Processing Type: Forging
Use: Drilling Soft-medium Formation Application: Mining,hydrology Well Drilling
High Light:

diamond drill bit

,

tricone roller bit



IADC code 217with 3 Nozzles,8-1/2" Steel tooth rock tricone bit,

SOFT-CLEAN OUT CMT



Product Description


Product Name

8-1/2" Tricone Rock bit, IADC code 447 with 3 Nozzles

Application oil,gas,water drilling etc.
Formation Such As medium soft shale,limstone and sandstone,hard streaks,etc.
Bit Size 8 1/2''(215.9mm)
Metal material High manganese steel and tungsten carbide alloy
Connection 8 1/2'' API Reg
OEM OEM is accepted
Weight 38 Kg
After sale We provide technical support.
Type of shipping Air transport, Marine transportation, Land transport
Service OEM serive offered
Structural feature Sealed journal bearing gage protection.



Pictrue

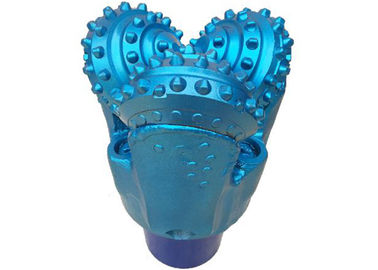

447 IADC Code 8-1/2" Tungsten Carbide Tricone Drill Bit For Hard Soils Blue Color 0447 IADC Code 8-1/2" Tungsten Carbide Tricone Drill Bit For Hard Soils Blue Color 1447 IADC Code 8-1/2" Tungsten Carbide Tricone Drill Bit For Hard Soils Blue Color 2







Feature



Journal bearing. Hardfaced head bearing surface. Inner hole of cone is silver-plated. The load capacity and seizure resistance of the bearing is greatly improved.
O-ring seal is made of the more wear resistance high saturated buna-N with the increased seal section and precisely designed sealing. flange in the cone sealing area increased the reliability of the seal.
All rubber compensator is used which can limit pressure differential and prevent drilling fluid from entering the lubrication system and this provides the bearing system with good assurance of lubrication.High wear resistance and excellent cutting ability of the insert bit are given full play by using carbide compacts of high strength and high toughness in combination with optimized compact numbers and rows,the exposure height and special shaped compacts.



1. Roller bits for Mining and Rock Drilling

The strength and wear resistance of inserts are improved
1. Roller bits for Mining and Rock Drilling
The strength and wear resistance of inserts are improve by using carbide inserts with high

strength and high wear resistance.
Surface of the high precision bearing heat treated by using advanced heat treatment process to

improve the load capacity and service life of the bearing.
The service life of the bearing is further extended by adopting harder and mort wear resistant

material for thrust bearing.
Preventing reflux structure has dual function, it can avoid air counterflow and dust entering into

bearing when the air-compressor stop working accidentally, and separate air and water

in order to avoid water entering into bearing when it works normally to prolong the life of bearing.



2. Roller bits for Oil Drilling

1. This series tricone bit use Sealed roller bearing structure. With rollers arranged in grooves

recessed in the cone body, the size of the bearing journal is increased.
2. Thrust bearing surfaces are hardfaced and treated with friction reducing technology.
3. Ball locked cone, suitable for high rotary speed.



3.Steel teeth Tricone bits
1 This series tricone bit use Journal bearing. Hardfaced head bearing surface. Cone bearing inlaid with friction reducing alloy and then silver-plated. The load capacity and seizure resistance of the

bearing is greatly improved.
2. O ring seal is made of the more wear resistance high saturated buna-N with the increased

seal section and precisely designed sealing flange in the cone sealing area increased the

reliability of the seal.
3. The bit bearing can be ball locked
4. For steel tooth bit, the tooth surface is hardfaced with new type of wear resistan
Material and thus extended working life of the cutting structure while still maintaining high ROP


Application

Apply to Construction, Water Drilling, Mining, Horizontal Directional Drilling, Geothermal and Environ-mental.

447 IADC Code 8-1/2" Tungsten Carbide Tricone Drill Bit For Hard Soils Blue Color 3



Packaging & Shipping

1. Delivery time: around 15-20days

2. Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air

Bulk order: we suggest by air or by sea.

3. Package : Carton or Wooden Box

447 IADC Code 8-1/2" Tungsten Carbide Tricone Drill Bit For Hard Soils Blue Color 4



Process

447 IADC Code 8-1/2" Tungsten Carbide Tricone Drill Bit For Hard Soils Blue Color 5





Tag:Tricone Rock bit, IADC code 447,Steel tooth
