| Place of Origin: | China |
| Brand Name: | Mirco |
| Certification: | SGS,ISO |
| Model Number: | PDC bit |
| Minimum Order Quantity: | negociated one |
|---|---|
| Price: | negociated one |
| Packaging Details: | wooden box or steel box |
| Delivery Time: | 10-30 days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 1000 Piece/Pieces per Month |
| Type: | PDC Bit | Machine Type: | Drilling Tool |
|---|---|---|---|
| Material: | Carbide | Processing Type: | Forging |
| Use: | Drilling Soft-medium Formation | Application: | Mining,hydrology Well Drilling |
| High Light: | diamond drill bit,water well drill bits |
||

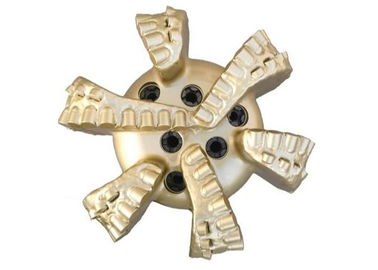

12-1/4" PDC bit, IADC code M323 for soft to medium formation
with ¾" cutter, 6 blades and 6 nozzles
Product Description
| Product Name | 12-1/4" PDC bit, |
| Application | drill Oil well, gas well, water well, etc. |
| Formation | soft to medium formation with ¾" cutter, 6 blades, 6 nozzles, |
| Bit Size | 2-1/4" |
| Metal material | High manganese steel and tungsten carbide alloy |
| Connection | 6-5/8 API Reg, Pin connection fitted with Nozzles and spare nozzles. |
| OEM | OEM is accepted |
| Weight | 220Kg |
| After sale | We provide technical support. |
| Type of shipping | Air transport, Marine transportation, Land transport |
| Service | OEM serive offered |
| Structural feature | Sealed journal bearing gage protection. |
Pictrue
Feature
♦ Steel body with hardening tungsten carbide surface(WC),make the drill bit both high strength and very strong abrasion resistance.
♦ Dedicated PDC cutter can improve the life and shield the risk of complex formation drill not passed.
♦ Raw materials: Alloy steel with a special treatment, achieve better mechanical properties (Rp0, 2: 1200MPa; Rm: 1100 MPa)
♦ Low torque spiral design and software designed tooth reduce the cutting edge wear & increase life
♦ (no repair life up to 8300M/pc).
♦ The unique parabolic crown-shaped design and tooth balance design keeps smooth drilling under high speed.
♦ (Speeds up to 30~40m/h.)
♦ The scientific drilling dynamic equilibrium design and hydraulic balance design make the drilling process more smooth.
♦ Authoritative API standard and ISO certification, quality and service will be better ensured.
Application
♦ PDC drill bit is mainly used to drill Oil well, gas well, water well, etc.
♦ We design and produce specifie PDC bit with good performance for each soft, medium and hard formation.
♦ Clay stone/lignite/siltstone/sands: We design 3-5 blades with low density cutter placement,large slot. Low cost,high speed .
♦ Mudstone: We have experience to design suitalbe blades shape and cutter direction to get high drill speed and stalbe drill.
♦ Gravel/limestone/shale/clay stone/tuff: Round crown and reasonable cutter direction. Drill smoothly in good speed.
Packaging & Shipping
1. Delivery time: around 15-20days
2. Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air
Bulk order: we suggest by air or by sea.
3. Package : Carton or Wooden Box
