| Place of Origin: | China |
| Brand Name: | MIROC Shank Adapter |
| Model Number: | Shank Adapter (for Montabert Drifter) |
| Minimum Order Quantity: | 1 Pieces |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Box or Wooden Box |
| Delivery Time: | 25 days |
| Supply Ability: | 20000 pieces per month |
| Product: | Shank Adapter | Diameter: | 38mm 44mm 51mm |
|---|---|---|---|
| Length: | 380mm 500mm 711mm | Thread: | R32 R38 T38 T45 T51 |
| Color: | Black | Weight: | 2.6kg-16.3kg |
| High Light: | drill bit shank adapter,threaded shank drill bit adapter |
||

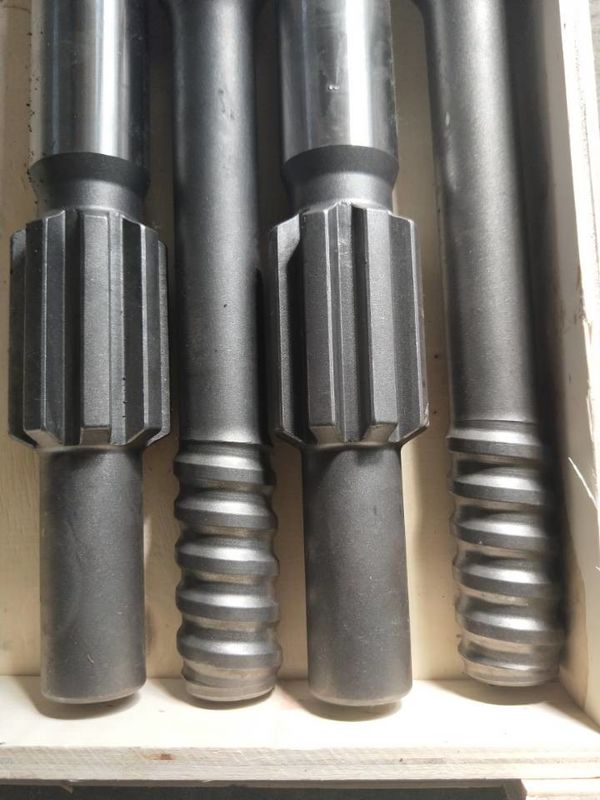

Shank Adapter for Montabert HC80 HC90 HC 105 HC120 HC160 HC200 Rock Drill
KSQ's full range of shank adapters (striking bars) ensure a quality drill string interface to the most exacting industry tolerances. Built to seamlessly interface with hydraulic and pneumatic drifters and top hammers, our shank adapters come in a full range of industry-standard thread configurations. Our precision grinding process ensures straightness, and our tools are fully carburized with an advanced heat treatment.
Shank Adapter for Following Montabert Rock Drill
| Montabert H 50, H60, H70 |
| Montabert HC 40, HC 50 |
| Montabert HC 80, HC 120 |
| Montabert HC 80, HC 90, HC 105, HC 120 |
| Montabert HC 80, HC 90, HC 105, HC 120 |
| Montabert HC 80, HC 90, HC 105, HC 120 |
| Montabert HC 80, HC 105RP, HC 107 RP, HC 108RP, HC 109RP |
| Montabert HC 80 RP, HC 105RP, HC 107 RP, HC 108RP, HC 109RP |
| Montabert HC 120 RP, HC 150 RP, HC 155 RP, HC 158RP |
| Montabert HC 120 RP, HC 150 RP |
| Montabert HC 160, HC 170 |
| Montabert HC 200 |
| Montabert HC 200A |
Shank Adapter Specification
| Rock Drill Manufacturer and Model | Thread | Diameter | Length | Flushing | Weight | Part Number |
| mm | mm | kg | ||||
| Montabert H 50, H60, H70 | R32 | 38 | 380 | - | 2.6 | 414832584 |
| R38 | 38 | 390 | 3.1 | 414832585 | ||
| T38 | 38 | 390 | - | 3.1 | 414832586 | |
| Montabert HC 40, HC 50 | R32 | 38 | 445 | - | 3.5 | 414832587 |
| R38 | 38 | 445 | - | 4.0 | 414832588 | |
| T38 | 38 | 445 | - | 3.8 | 414832589 | |
| Montabert HC 40, HC 50 | R32 | 38 | 370 | - | 3.0 | 414832590 |
| R38 | 38 | 370 | 3.3 | 414832591 | ||
| T38 | 38 | 370 | - | 3.2 | 414832592 | |
| Montabert HC 80, HC 120 | T45 | 45 | 492 | - | 5.6 | 414832593 |
| T45 | 45 | 590 | 6.4 | 414832594 | ||
| Montabert HC 80, HC 90, HC 105, HC 120 | T38 | 38 | 440 | - | 3.6 | 414832595 |
| R32 | 38 | 440 | - | 3.9 | 414832596 | |
| T38 | 38 | 440 | - | 3.9 | 414832597 | |
| Montabert HC 80, HC 90, HC 105, HC 120 | T38 | 38 | 500 | - | 4.2 | 414832598 |
| Montabert HC 80, HC 90, HC 105, HC 120 | T38 | 38 | 500 | - | 4.4 | 414832599 |
| Montabert HC 80, HC 105RP, HC 107 RP, HC 108RP, HC 109RP | T38 | 45 | 770 | - | 8.4 | 414832600 |
| T45 | 45 | 770 | - | 8.6 | 414832601 | |
| Montabert HC 80 RP, HC 105RP, HC 107 RP, HC 108RP, HC 109RP | T38 | 45 | 670 | - | 7.2 | 414832602 |
| T45 | 45 | 670 | - | 7.5 | 414832603 | |
| Montabert HC 120 RP, HC 150 RP, HC 155 RP, HC 158RP | T45 | 51 | 670 | - | 8.8 | 414832604 |
| T51 | 51 | 670 | - | 8.9 | 414832605 | |
| Montabert HC 120 RP, HC 150 RP | T45 | 51 | 770 | - | 10.2 | 414832606 |
| T51 | 51 | 770 | - | 10.3 | 414832607 | |
| Montabert HC 160, HC 170 | T45 | 60 | 805 | - | 14.8 | 414832608 |
| T51 | 60 | 805 | - | 14.9 | 414832609 | |
| Montabert HC 200 | T51 | 51 | 840 | - | 13.2 | 414832610 |
| Montabert HC 200A | T51 | 60 | 865 | - | 16.3 | 414832611 |
Hydraulic shanks generally have at least a 5 to 14-spline configuration. Pneumatic shanks tend to have internal or through-flushing. They can be identified by their lugs or 4-spline configuration.
Competitive Advantage
Applications
• Bolting, drifting
• Bench drilling
• Production drilling
We can design and manufacture the personalized products to meet your specical apllication, such as changing the length, diameter etc.
