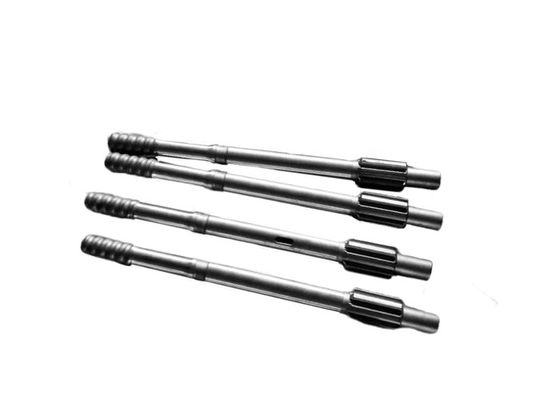

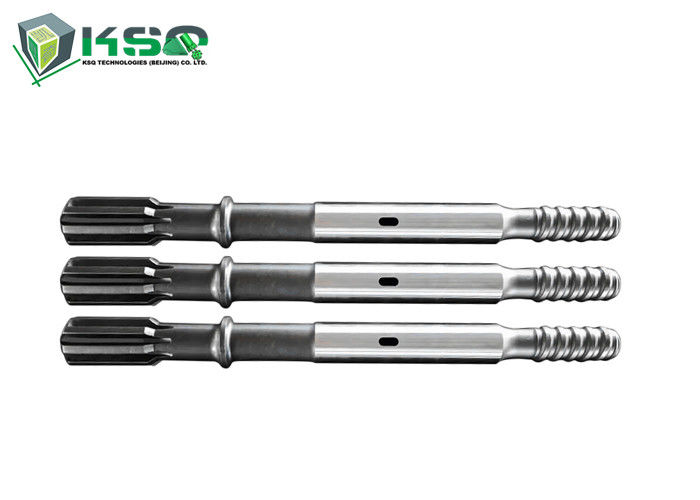

HL400 HL500 Rock Drill Black Drill Bit Shank Adapter

HL400 HL500 Rock Drill Black Drill Bit Shank Adapter

  • HL400 HL500 Rock Drill Black Drill Bit Shank Adapter
  • HL400 HL500 Rock Drill Black Drill Bit Shank Adapter
  • HL400 HL500 Rock Drill Black Drill Bit Shank Adapter
HL400 HL500 Rock Drill Black Drill Bit Shank Adapter
Product Details:
Place of Origin: China
Brand Name: MIROC Shank Adapter
Certification: ISO
Model Number: Shank Adapter (for Drifter)
Payment & Shipping Terms:
Minimum Order Quantity: 10 Piece Shank Adapter
Price: Negotiable
Packaging Details: Carton Box or Wooden Box
Delivery Time: 25 days
Supply Ability: 20000 pieces per month
Contact Now
Detailed Product Description
Product: Shank Adapter Diameter: 32mm 38mm 44mm 64mm 80mm
Length: 380mm 500mm 711mm Thread: R32 R38 T38 T45 T51 ST58 ST68
Color: Black Weight: 4.3kg-16.3kg
High Light:

drill bit shank adapter

,

threaded shank drill bit adapter

,

32mm shank adapter

HL400 HL500 Rock Drill Black Drill Bit Shank Adapter



KSQ’s range of shank adapters for Hydraulic Top Hammer are manufacturing respecting high Quality standards thus ensuring increased production compared to competing products on the market.



The choice of raw materials for the production of high quality products is the result of an experience that is handed down by experience from the job sites.



Shank Adapter for Following  Rock Drill

/Tamrock HLX 3
/Tamrock HLX 5, HFX 5
/Tamrock L 400, L 500
/Tamrock L 600, L 750
/Tamrock 438 LS, 438 TS, HL 538, HL 538 L, L 550 S
/Tamrock 438, 538
/Tamrock 438, 538
/Tamrock 438, 538
/Tamrock HL 300
/Tamrock HL 300 S
/Tamrock HL 500 F
/Tamrock HL 500
/Tamrock HL 500
/Tamrock HL 500, HL 500 S
/Tamrock HL 500, HL 500 S
/Tamrock HL 500 S
/Tamrock HL 500, HL 500 S, HL 550 S, HL 560 S
/Tamrock HL 600, HL 600 S
/Tamrock HL 600, HL 600 S
/Tamrock HL 600, HL 600 S
/Tamrock HL 645, HL 645 S
/Tamrock HL 700, HL 800
/Tamrock HL 1000
/Tamrock HL 1000
/Tamrock HL 1000
/Tamrock HL 1000
/Tamrock HL 1500
/Tamrock HL 1000 PE-65, HL 1500 PE-65, HL 1560 T-65



Shank Adapter Specification

Rock Drill Manufacturer and Model Thread Diameter Length Flushing Weight Part Number
mm mm kg
/Tamrock HLX 3 R32 45 205 - 2.1 414832614
/Tamrock HLX 5, HFX 5 R38 45 500 - 5.2 414832615
T38 45 500 - 5.1 414832616
T45 45 500 - 5.5 414832617
T38 45 575 - 5.7 414832618
T45 45 575 - 5.9 414832619
/Tamrock L 400, L 500 R32 32 380 10 2.0 414832620
/Tamrock L 600, L 750 T38 44 446 14.3 4.0 414832621
/Tamrock 438 LS, 438 TS, HL 538, HL 538 L, L 550 S R32 38 450 - 3.8 414832622
R38 38 450 - 4.4 414832623
T38 38 455 - 4.0 414832624
/Tamrock 438, 538 R32 38 430 12.7 3.0 414832625
/Tamrock 438, 538 T38 38 380 12.7 3.0 414832626
/Tamrock 438, 538 T38 38 495 - 4.2 414832627
/Tamrock HL 300 R32 32 400 - 2.6 414832628
/Tamrock HL 300 S R32 45 245 - 2.6 414832629
/Tamrock HL 500 F R32 45 350 - 3.9 414832630
/Tamrock HL 500 R38 38 500 - 3.7 414832631
/Tamrock HL 500 T38 45 550 - 5.3 414832632
T45 45 550 - 6.0 414832633
/Tamrock HL 500, HL 500 S R32 38 460 - 3.9 414832634
R38 38 460 - 4.2 414832635
T38 38 460 - 4.2 414832636
/Tamrock HL 500, HL 500 S R32 38 550 - 4.3 414832637
T38 38 550 - 4.6 414832638
/Tamrock HL 500 S R32 45 460 - 4.9 414832639
/Tamrock HL 500, HL 500 S, HL 550 S, HL 560 S R38 45 500 - 5.3 414832640
T38 45 500 - 5.3 414832641
/Tamrock HL 600, HL 600 S T38 45 600 - 6.0 414832642
T45 45 600 - 6.4 414832643
/Tamrock HL 600, HL 600 S T38 45 525 - 5.6 414832644
T45 45 525 - 5.8 414832645
/Tamrock HL 600, HL 600 S T45 52 650 - 8.3 414832646
/Tamrock HL 645, HL 645 S T45 45 600 - 6.5 414832647
/Tamrock HL 700, HL 800 T45 45 600 - 7.2 414832648
T38 52 600 - 8.0 414832649
T45 52 600 - 8.5 414832650
T51 50 600 - 8.5 414832651
/Tamrock HL 1000 T51 52 592 - 9.3 414832652
/Tamrock HL 1000 T45 52 670 - 10.0 414832653
T51 52 670 - 10.0 414832654
/Tamrock HL 1000 ST58 80 635 - 18.4 414832655
/Tamrock HL 1000 ST68 80 640 - 18.8 414832656
/Tamrock HL 1500 ST58 80 635 - 18.1 414832657
ST68 80 635 - 18.3 414832658
/Tamrock HL 1000 PE-65, HL 1500 PE-65, HL 1560 T-65 T51 65 760 - 16.3 414832659



Hydraulic shanks generally have at least a 5 to 14-spline configuration. Pneumatic shanks tend to have internal or through-flushing. They can be identified by their lugs or 4-spline configuration.



Competitive Advantage

  • High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance.
  • Accurate dimension of thread perfectly matches the rock drill
  • Work reliable and very cost-effective

Applications



• Bolting, drifting

• Bench drilling
• Production drilling



HL400 HL500 Rock Drill Black Drill Bit Shank Adapter 0
We can design and manufacture the personalized products to meet your specical apllication, such as changing the length, diameter etc.
