| Place of Origin: | China |
| Brand Name: | Mirco |
| Model Number: | T45 |
| Minimum Order Quantity: | negociated one |
|---|---|
| Price: | negociated one |
| Packaging Details: | wooden box or plastic box |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 100000 Piece/Pieces per Month |
| Product Name: | T45 Retract Button Bit | Type: | Drill Bit |
|---|---|---|---|
| Machine Type: | Drilling Tool, Drilling Equipment | Material: | Tungsten Carbide & Steel |
| Processing Type: | Casting | Use: | Mining Drilling |
| Bit Diameter: | 70-115mm | Thread: | T45 |
| Color: | Any Color Is Available | ||
| High Light: | hardened steel drill bits,milling drill bits |
||

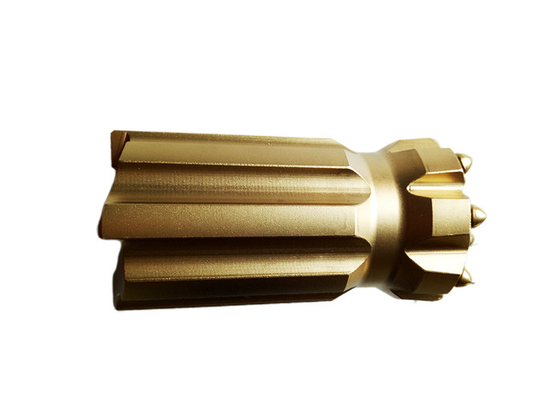

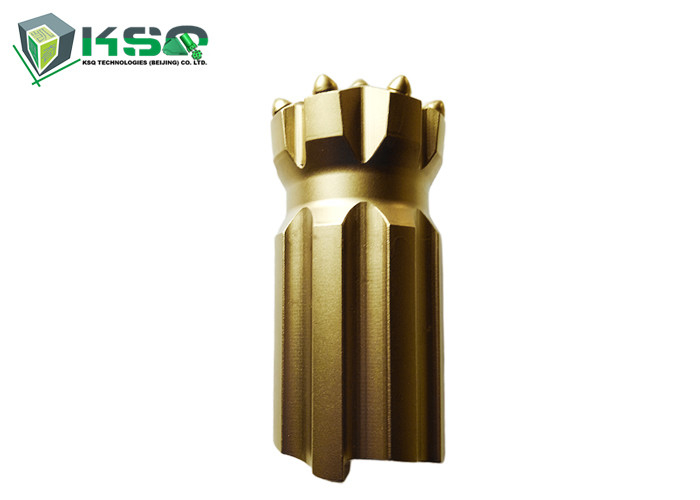

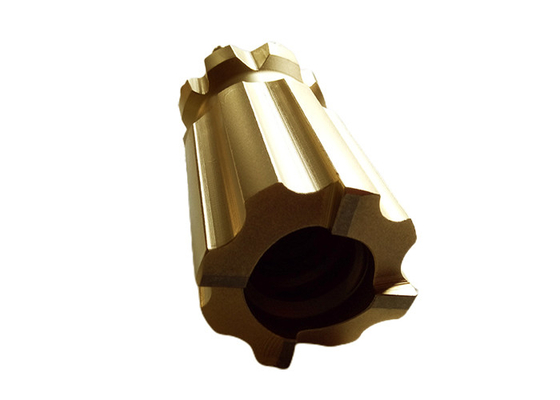

T45 Tungsten Carbide Retractable Thread Rock Drill Button Bits
Application:
T45 Quarrying Retrac Threaded Rock Drilling Button Bit is suitable for mining,quarring,tunneling and so on. It is widely used for gound quarring and underground drilling.
PRODUCT SPECIFICATION
T45 Button bits, retract skirt
| Diameter | T.C buttons | Flushing hole | Angle | Weight | |||
| mm | inch | Gauge x mm | Front x mm | Side | Front | Gauge | Kg |
| 76 | 3 | 6x12 | 4x11 | 1 | 2 | 40° | 3.08 |
| 76 | 3 | 6x13 | 3x12,1x11 | 1 | 3 | 35° | 3.16 |
| 76 | 3 | 8x12 | 4x12 | 1 | 2 | 35° | 3.15 |
| 76 | 3 | 8x12 | 5x11 | 1 | 2 | 35° | 3.09 |
| 89 | 31/2 | 8x13 | 4x13 | 1 | 2 | 35° | 4.52 |
| 89 | 31/2 | 8x13 | 4x11,1x11 | 1 | 4 | 35° | 4.35 |
| 89 | 31/2 | 8x13 | 4x11,2x9 | 1 | 4 | 35° | 4.28 |
| 89 | 31/2 | 8x14 | 5x12 | 1 | 2 | 35° | 4.58 |
| 89 | 31/2 | 8x13 | 6x12 | 1 | 2 | 35° | 4.42 |
| 89 | 31/2 | 9x12 | 6x10 | 1 | 3 | 35° | 4.62 |
| 102 | 4 | 8x15 | 4x15 | 1 | 2 | 35° | 7.38 |
| 102 | 4 | 8x14 | 4x12,1x12 | 1 | 4 | 35° | 7.25 |
| 102 | 4 | 8x14 | 4x12,2x12 | 1 | 4 | 35° | 7.28 |
| 102 | 4 | 8x14 | 6x12 | 1 | 2 | 35° | 7.15 |
| 102 | 4 | 9x13 | 8x13 | 1 | 3 | 35° | 7.42 |
| 115 | 41/2 | 8x15 | 4x13,2x13 | 1 | 4 | 35° | 9.54 |
| 115 | 41/2 | 8x15 | 7x14 | 1 | 2 | 35° | 9.75 |
| 115 | 41/2 | 9x14 | 8x14 | 1 | 2 | 35° | 9.72 |
| 127 | 5 | 8x16 | 7x14 | 1 | 2 | 35° | 12.15 |
| 127 | 5 | 9x16 | 8x14 | 1 | 3 | 35° | 14.42 |
About us
MIROC® Rock Drilling Tools are Rock Drilling Tools Brand by KSQ Tecnologies (Beijing) Co. Ltd.
KSQ Technologies (Beijing) Co. Ltd. provides exceptional technical know-how in development, production, and application. The company has adopted advanced manufacturing processes to ensure high quality steels and tungsten carbide inserts for its rock drilling accessories. Its personnel understand clients’ drilling needs, and have the service skills to recommend the right drilling tools for the job. Its experienced product developers can also create custom tools. Furthermore, the company’s development team introduces innovative products each year – tools that are rigorously tested in the field and proven
to perform beyond industry expectations.
MIROC® Rock Drilling and Ground Support Tools include:
Integral Rods
Plug Hole Rods
Tapered Drilling Tools
Extension Drilling Tools
Drifting and Tunneling Tools
Reaming Tools
Shank Rods
Shank Adapters (Striking Bars)
Down-the-hole (DTH) Bits
Down-the-hole (DTH) Hammers
