| Place of Origin: | China |
| Brand Name: | MIROC |
| Certification: | ISO, SONCAP |
| Model Number: | R32 45mm Button Drill Bit |
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | Wooden box |
| Delivery Time: | 25-30days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union |
| Supply Ability: | 30000 per month |
| Color:: | Green, Gold, Yellow | Material:: | Tungsten Carbide Buttons |
|---|---|---|---|
| Application:: | Tunnel, Quarry, Bench Rock Drilling | Thread:: | R32 |
| Face Design:: | Flat Face | Body Design:: | Smooth Body |
| Bit Diameter: | R32 45mm | ||
| High Light: | hardened steel drill bits,milling drill bits |
||

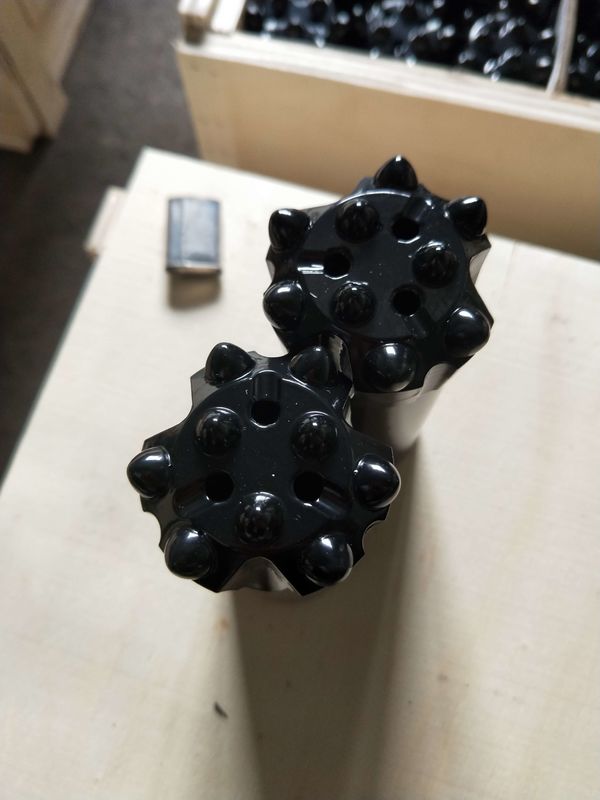

R32 45mm Button Drill Bit used for mining small rock hole drilling
Our Advantages:
We have advanced production equipment & talented researchers & technicians & rich experiences in R & D and production.
We using the best quality raw materials.
We adopting advanced production technology & strict testing procedure.
We passed ISO9001 quality management system certification.
We accept OEM manufacturing and produce on your design.
Application:
Tugsten Carbide Button's Shape Selection:
| R32 | Button Bit | Spherical Bit Diameter 41 mm or 1 3/5 inch Button and Size Front 2×9 mm Gauge 4×9 mm Angle 35° Flushing Hole Front 1 Side 1 |
| Button Bit | Spherical Bit Diameter 41 mm or 1 3/5 inch Button and Size Front 2×8 mm Gauge 5×9 mm Angle 35° Flushing Hole Front 1 Side 1 | |
| Button Bit | Spherical Bit Diameter 41 mm or 1 3/5 inch Button and Size Front 2×8 mm Gauge 5×9 mm Angle 35° Flushing Hole Front 1 Side 1 | |
| Button Bit | Spherical Bit Diameter 43 mm or 1 2/3 inch Button and Size Front 2×9 mm Gauge 5×10 mm Angle 35° Flushing Hole Front 1 Side 1 | |
| Button Bit | Spherical Bit Diameter 43 mm or 1 2/3 inch Button and Size Front 2×9 mm Gauge 6×9 mm Angle 40° Flushing Hole Front 2 Side - | |
| Button Bit | Spherical Bit Diameter 45 mm or 1 7/9 inch Button and Size Front 2×9 mm Gauge 5×11 mm Angle 30° Flushing Hole Front 1 Side 1 | |
| Button Bit | Spherical Bit Diameter 45 mm or 1 7/9 inch Button and Size Front 2×9 mm Gauge 6×10 mm Angle 35° Flushing Hole Front 2 Side - | |
| Button Bit | Spherical Bit Diameter 45 mm or 1 7/9 inch Button and Size Front 3×8 mm Gauge 6×10 mm Angle 30° Flushing Hole Front 3 Side - | |
| Button Bit | Spherical Bit Diameter 48 mm or 1 8/9 inch Button and Size Front 2×9 mm Gauge 5×11 mm Angle 35° Flushing Hole Front 1 Side 1 | |
| Button Bit | Spherical Bit Diameter 48 mm or 1 8/9 inch Button and Size Front 2×9 mm Gauge 6×10 mm Angle 40° Flushing Hole Front 2 Side - | |
| Button Bit | Spherical Bit Diameter 48 mm or 1 8/9 inch Button and Size Front 3×8 mm Gauge 6×10 mm Angle 40° Flushing Hole Front 3 Side - | |
| Button Bit | Spherical Bit Diameter 48 mm or 1 8/9 inch Button and Size Front 3×9 mm Gauge 6×10 mm Angle 30° Flushing Hole Front 3 Side - | |
| Button Bit | Spherical Bit Diameter 51 mm or 2 inch Button and Size Front 2×10 mm Gauge 5×11 mm Angle 35° Flushing Hole Front 1 Side 1 | |
| Button Bit | Spherical Bit Diameter 51 mm or 2 inch Button and Size Front 2×10 mm Gauge 6×10 mm Angle 40° Flushing Hole Front 2 Side - | |
| Button Bit | Spherical Bit Diameter 51 mm or 2 inch Button and Size Front 3×9 mm Gauge 6×10 mm Angle 35° Flushing Hole Front 3 Side - | |
| Button Bit | Spherical Bit Diameter 57 mm or 2 1/4 inch Button and Size Front 3×9 mm Gauge 6×11 mm Angle 35° Flushing Hole Front 3 Side - | |
| Button Bit | Spherical Bit Diameter 64 mm or 2 1/2 inch Button and Size Front 3×10 1×10 mm Gauge 6×11 mm Angle 35° Flushing Hole Front 3 Side - | |
| Button Bit | Spherical Bit Diameter 64 mm or 2 1/2 inch Button and Size Front 4×10 mm Gauge 8×10 mm Angle 40° Flushing Hole Front 2 Side - | |
| Button Bit | Spherical Bit Diameter 76 mm or 3 inch Button and Size Front 4×11 mm Gauge 8×11 mm Angle 40° Flushing Hole Front 2 Side - | |
| Button Bit | Ballistic Bit Diameter 41 mm or 1 3/5 inch Button and Size Front 2×8 mm Gauge 5×9 mm Angle 40° Flushing Hole Front 1 Side 1 | |
| Button Bit | Ballistic Bit Diameter 43 mm or 1 2/3 inch Button and Size Front 2×9 mm Gauge 5×9 mm Angle 40° Flushing Hole Front 1 Side 2 | |
| Button Bit | Ballistic Bit Diameter 43 mm or 1 2/3 inch Button and Size Front 2×9 mm Gauge 6×9 mm Angle 40° Flushing Hole Front 2 Side - | |
| Button Bit | Ballistic Bit Diameter 43 mm or 1 2/3 inch Button and Size Front 3×8 mm Gauge 6×8 mm Angle 40° Flushing Hole Front 3 Side 1 | |
| Button Bit | Ballistic Bit Diameter 45 mm or 1 7/9 inch Button and Size Front 2×9 mm Gauge 5×11 mm Angle 30° Flushing Hole Front 1 Side 2 | |
| Button Bit | Ballistic Bit Diameter 45 mm or 1 7/9 inch Button and Size Front 2×9 mm Gauge 6×9 mm Angle 40° Flushing Hole Front 2 Side 2 | |
| Button Bit | Ballistic Bit Diameter 45 mm or 1 7/9 inch Button and Size Front 3×8 mm Gauge 6×9 mm Angle 40° Flushing Hole Front 3 Side 1 | |
| Button Bit | Ballistic Bit Diameter 48 mm or 1 8/9 inch Button and Size Front 2×9 mm Gauge 5×11 mm Angle 35° Flushing Hole Front 1 Side 1 | |
| Button Bit | Ballistic Bit Diameter 48 mm or 1 8/9 inch Button and Size Front 2×9 mm Gauge 6×10 mm Angle 40° Flushing Hole Front 2 Side - | |
| Button Bit | Ballistic Bit Diameter 48 mm or 1 8/9 inch Button and Size Front 3×8 mm Gauge 6×10 mm Angle 40° Flushing Hole Front 3 Side - | |
| Button Bit | Ballistic Bit Diameter 51 mm or 2 inch Button and Size Front 2×10 mm Gauge 6×10 mm Angle 40° Flushing Hole Front 2 Side - | |
| Button Bit | Ballistic Bit Diameter 51 mm or 2 inch Button and Size Front 3×9 mm Gauge 6×10 mm Angle 40° Flushing Hole Front 3 Side 1 | |
| Button Bit | Ballistic Bit Diameter 54 mm or 2 1/8 inch Button and Size Front 3×9 mm Gauge 6×10 mm Angle 40° Flushing Hole Front 3 Side 1 | |
| Button Bit | Ballistic Bit Diameter 57 mm or 2 1/4 inch Button and Size Front 3×9 mm Gauge 6×11 mm Angle 35° Flushing Hole Front 3 Side - | |
| Button Bit | Ballistic Bit Diameter 64 mm or 2 1/2 inch Button and Size Front 4×10 mm Gauge 8×10 mm Angle 40° Flushing Hole Front 2 Side - | |
| Button Bit | Spherical Bit Diameter 48 mm or 1 8/9 inch Button and Size Front 2×9 mm Gauge 5×11 mm Angle 35° Flushing Hole Front 1 Side 2 | |
| Button Bit | Spherical Bit Diameter 48 mm or 1 8/9 inch Button and Size Front 3×8 mm Gauge 6×10 mm Angle 40° Flushing Hole Front 3 Side - | |
| Button Bit | Spherical Bit Diameter 51 mm or 2 inch Button and Size Front 2×10 mm Gauge 5×11 mm Angle 35° Flushing Hole Front 1 Side 2 | |
| Button Bit | Spherical Bit Diameter 51 mm or 2 inch Button and Size Front 3×9 mm Gauge 6×10 mm Angle 35° Flushing Hole Front 3 Side - | |
| Button Bit | Spherical Bit Diameter 48 mm or 1 8/9 inch Button and Size Front 2×9 mm Gauge 5×11 mm Angle 35° Flushing Hole Front 1 Side 2 | |
| Button Bit | Spherical Bit Diameter 57 mm or 2 1/4 inch Button and Size Front 3×10 mm Gauge 6×11 mm Angle 35° Flushing Hole Front 3 Side - | |
| Button Bit | Spherical Bit Diameter 64 mm or 2 1/2 inch Button and Size Front 3×11 mm Gauge 6×12 mm Angle 30° Flushing Hole Front 3 Side - | |
| Button Bit | Spherical Bit Diameter 64 mm or 2 1/2 inch Button and Size Front 3×10 1×10 mm Gauge 6×11 mm Angle 35° Flushing Hole Front 3 Side - | |
| Button Bit | Spherical Bit Diameter 64 mm or 2 1/2 inch Button and Size Front 4×10 mm Gauge 8×10 mm Angle 40° Flushing Hole Front 2 Side - | |
| Button Bit | Spherical Bit Diameter 70 mm or 2 3/4 inch Button and Size Front 4×11 mm Gauge 8×11 mm Angle 40° Flushing Hole Front 2 Side - | |
| Button Bit | Spherical Bit Diameter 76 mm or 3 inch Button and Size Front 4×11 1×11 mm Gauge 8×11 mm Angle 35° Flushing Hole Front 2 Side - | |
| Button Bit | Ballistic Bit Diameter 48 mm or 1 8/9 inch Button and Size Front 3×8 mm Gauge 6×10 mm Angle 40° Flushing Hole Front 3 Side - | |
| Button Bit | Ballistic Bit Diameter 51 mm or 2 inch Button and Size Front 3×9 mm Gauge 6×10 mm Angle 40° Flushing Hole Front 3 Side 1 | |
| Button Bit | Ballistic Bit Diameter 54 mm or 2 1/8 inch Button and Size Front 3×9 mm Gauge 6×10 mm Angle 40° Flushing Hole Front 3 Side 1 | |
| Button Bit | Ballistic Bit Diameter 57 mm or 2 1/4 inch Button and Size Front 3×9 mm Gauge 6×11 mm Angle 35° Flushing Hole Front 3 Side - | |
| Button Bit | Ballistic Bit Diameter 57 mm or 2 1/4 inch Button and Size Front 3×10 mm Gauge 6×11 mm Angle 35° Flushing Hole Front 3 Side - | |
| Button Bit | Ballistic Bit Diameter 64 mm or 2 1/2 inch Button and Size Front 4×10 mm Gauge 8×10 mm Angle 40° Flushing Hole Front 2 Side - |
Production View
https://www.youtube.com/watch?v=7KMFH82r6co&feature=youtu.be
MIROC® Rock Drilling Tools are used by many drilling professionals related to mining, construction, tunneling, and quarrying projects around the globe.
KSQ Technologies (Beijing) Co. Ltd. provides exceptional technical know-how in development, production, and application. The company has adopted advanced manufacturing processes to ensure high quality steels and tungsten carbide inserts for its rock drilling accessories. Its personnel understand clients’ drilling needs, and have the service skills to recommend the right drilling tools for the job. Its experienced product developers can also create custom tools. Furthermore, the company’s development team introduces innovative products each year – tools that are rigorously tested in the field and proven
to perform beyond industry expectations.
MIROC® Rock Drilling and Ground Support Tools include:
Integral Rods
Plug Hole Rods
Tapered Drilling Tools
Extension Drilling Tools
Drifting and Tunneling Tools
Reaming Tools
Shank Rods
Shank Adapters (Striking Bars)
Down-the-hole (DTH) Bits
Down-the-hole (DTH) Hammers
