R32 Tungsten Carbide Domed Fast Drilling And Quarrying Tools Thread Reaming Button Bit

R32 Tungsten Carbide Domed Fast Drilling And Quarrying Tools Thread Reaming Button Bit

  • R32 Tungsten Carbide Domed Fast Drilling And Quarrying Tools Thread Reaming Button Bit
  • R32 Tungsten Carbide Domed Fast Drilling And Quarrying Tools Thread Reaming Button Bit
  • R32 Tungsten Carbide Domed Fast Drilling And Quarrying Tools Thread Reaming Button Bit
  • R32 Tungsten Carbide Domed Fast Drilling And Quarrying Tools Thread Reaming Button Bit
R32 Tungsten Carbide Domed Fast Drilling And Quarrying Tools Thread Reaming Button Bit
Product Details:
Place of Origin: China
Brand Name: MIROC
Certification: ISO9001
Model Number: Button Drill Bit
Payment & Shipping Terms:
Minimum Order Quantity: 5 Pieces
Price: negotiation
Packaging Details: Carton Box or Wooden Box
Delivery Time: 10-22days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 30000pcs per month
Contact Now
Detailed Product Description
Product Name: Button Drill Bit Material: Carbon Steel
Processing Type: Forging Use: Well Drilling
Color: Green Button Shape: K Type
High Light:

hardened steel drill bits

,

milling drill bits

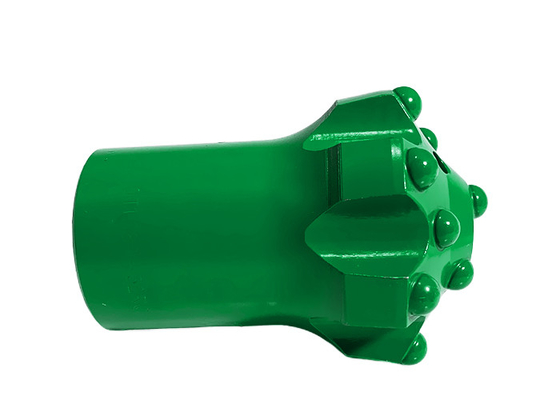

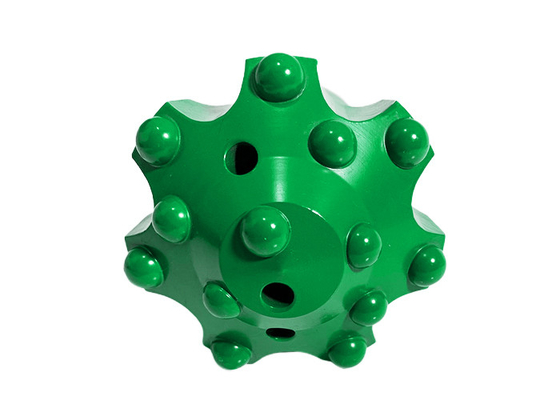

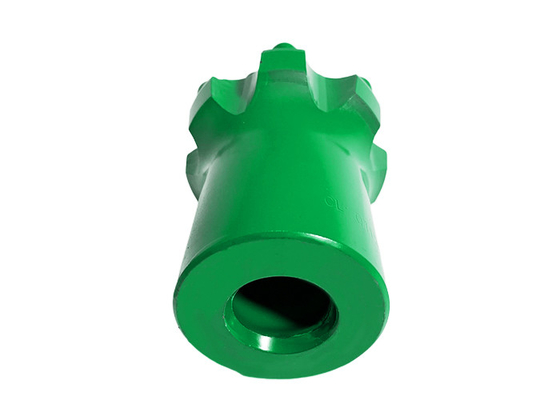

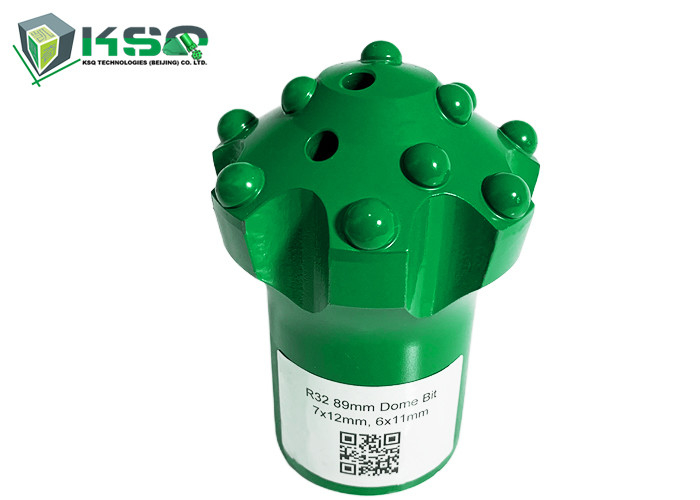

R32 Tungsten Carbide Domed Fast Drilling And Quarrying Tools Thread Reaming Button Bit



Reaming drilling tools are used when a large diameter is needed to be reamed out after a pilot holes is drilled to a depth. We manufacture pilot reaming drilling tools, domed reaming button bits and adapter reaming button bits. Pilot reaming bits consist of pilot adapters and reaming bits, both domed bits and adapter reaming bits are integral. Dome bit is usually used when the pilot bit needs to enlarge the hole diameter after drilling to the specified depth.
Thread: R25, R28, R32, R38, T38, T45, T51
Pilot adapter diameter: 26mm ~ 40 mm.
Reaming button bit diameter: 64mm ~ 152mm.



Reaming Bit (R32)

D

Flushing hole

Buttons

Angle

Part No.

(mm)

(mm)

mm

inch

Gauge

Front

Gauge

Front

Tungsten carbide thread domed reaming button bit

76

3”

2×7

2×9

14×11

1×11

35°

3076R3215K

89

3 1/2”

2×8

2×9

14×12

1×12

35°

3089R3215K

102

4”

2×9

2×9

14×12

1×12

35°

30102R3215K



1. High-strength, high flexibility, high temperature, high wear resistance.
2. High-precision metal seal.
3. Locking roller ball, to adapt to high-speed.
4. Use high strength high toughness carbide teeth
5. Hours in the rotary cone bit with the impact, crushing and shearing the role of broken rock.
6. Cone bit to adapt to the soft, medium and hard of various strata.
7. Reasonable price and long working life.



R32 Tungsten Carbide Domed Fast Drilling And Quarrying Tools Thread Reaming Button Bit 1R32 Tungsten Carbide Domed Fast Drilling And Quarrying Tools Thread Reaming Button Bit 2R32 Tungsten Carbide Domed Fast Drilling And Quarrying Tools Thread Reaming Button Bit 3R32 Tungsten Carbide Domed Fast Drilling And Quarrying Tools Thread Reaming Button Bit 4
