Place of Origin: | China |
Brand Name: | MIROC |
Model Number: | Drill Bits |
Minimum Order Quantity: | 10 Pieces |
---|---|
Price: | negotiation |
Packaging Details: | Carton Box or Wooden Box |
Delivery Time: | 25 days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 20000 pieces per month |
Material: | High Quality Carbide And High Quality Steel | Product Name: | Drill Bit |
---|---|---|---|
Processing Type: | Forging | Use: | Ore Mining |
Application: | Waterwell Drilling, Drifting And Bench Long Hole Drilling | Color: | Green |
Highlight: | industrial drill bits,milling drill bits |

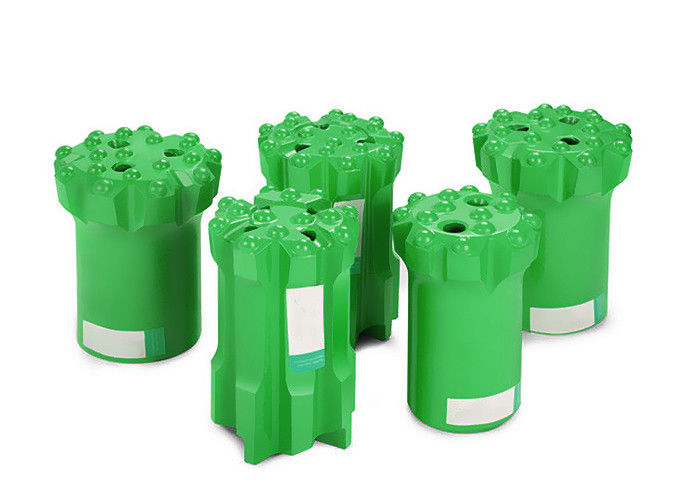

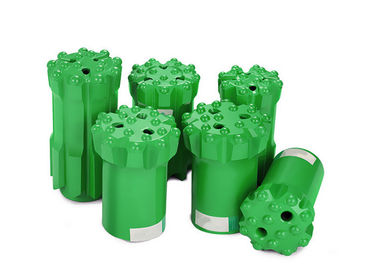

T51 Hard Rock Thread Tungsten Carbide Drill Bits
Bit Diameter: 89mm-127mm
Length of drill rod: 1525mm-6100mm (MM and MF)
Button bit design: Flat face, drop center, normal and retrac body.
Tungsten carbide (Buttons): Spherical, ballistic and conical.
Applications: Bench, production
1. High-strength, high flexibility, high temperature, high wear resistance.
2. High-precision metal seal.
3. Locking roller ball, to adapt to high-speed.
4. Use high strength high toughness carbide teeth
5. Hours in the rotary cone bit with the impact, crushing and shearing the role of broken rock.
6. Cone bit to adapt to the soft, medium and hard of various strata.
7. Reasonable price and long working life.
Button Bit
Dimensions D | Flushing Hole(mm) | Buttons(mm) | Angle | Class | Part No. | |||
mm | in | Front No.szie | Gauge No size | Front No size | Gauge No size | |||
89 | 3 1/2 | 2x12 | 2x7 | 6x12 | 8x14 | 35° | H | 3089T114 |
102 | 4 | 1x14 | - | 6x13 | 8x14 | 35° | H | 30102T5114 |
115 | 4 1/2 | 4x13 | - | 6x14 | 8x16 | 35° | H | 30115T51F14 |
89 | 3 1/2 | 4x10 | - | 6x12 | 8x14 | 35° | M | 3089T5114D |
102 | 4 | 4x11 | - | 6x13 | 8x14 | 35° | M | 30102T5114D |
115 | 4 1/2 | 4x13 | - | 6x14 | 8x16 | 35° | M | 30115T5114D |
127 | 5 | 3x13 | - | 10x14 | 9x16 | 35° | H | 30127T5119 |
127 | 5 | 3x13 | - | 9x14 | 9x14 | 35° | M | 30127T5118D |
127 | 5 | 3x13 | - | 9x14 | 9x16 | 35° | H | 30127T5118R |
89 | 3 1/2 | 2x11 | 2x8 | 6x12 | 8x14 | 35° | H | 3089T51F14R |
102 | 4 | 4x11 | - | 6x13 | 8x14 | 35° | H | 30102T51F14R |
115 | 4 1/2 | 4x13 | - | 6x14 | 8x16 | 35° | H | 30115T51F14R |
89 | 3 1/2 | 4x10 | - | 6x12 | 8x14 | 35° | M | 3089T51114DR |
102 | 4 | 4x11 | - | 6x13 | 8x14 | 35° | M | 30102T5114DR |
115 | 4 1/2 | 4x13 | - | 6x14 | 8x16 | 35° | M | 30115T5114DR |
127 | 5 | 3x13 | - | 9x14 | 9x14 | 35° | M | 30127T5118DR |
