Place of Origin: | Shangdong,China |
Brand Name: | MIROC |
Certification: | API |
Model Number: | 4", 5", 6", 7", 8", 10" |
Minimum Order Quantity: | 1Pieces |
---|---|
Price: | negotiation |
Packaging Details: | Wooden Plate |
Delivery Time: | 10-25days |
Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
Supply Ability: | 20000pcs per month |
Material: | Carbide, Steel And Tungsten Carbide Buttons | Color: | Green, Black And Demaned By Customer |
---|---|---|---|
Use: | Underground Mining/Well Drilling | Processing Type: | CNC Milling And Proprietary Heat Treatment Process |
Diameter: | 105, 110, 115, 120, 127, 165, 175, 190, 203, 216, 254, 305, Etc | Product Name: | Low Air Pressure DTH Hammer Bit |
Application: | Widely Used In Hard And Very Hard Rocks | Bity Face Type: | Flat Face Dth Bit, Concave Dth Bit, Convex Dth Bit |
Button Shape: | Dome And Ballistic Shapes Buttons | ||
High Light: | carbide tipped drill bits,dth hammer bits |

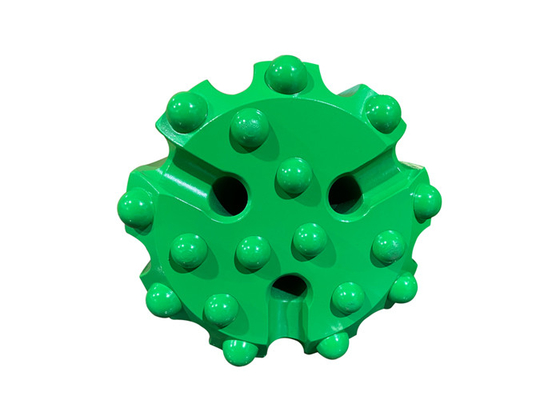

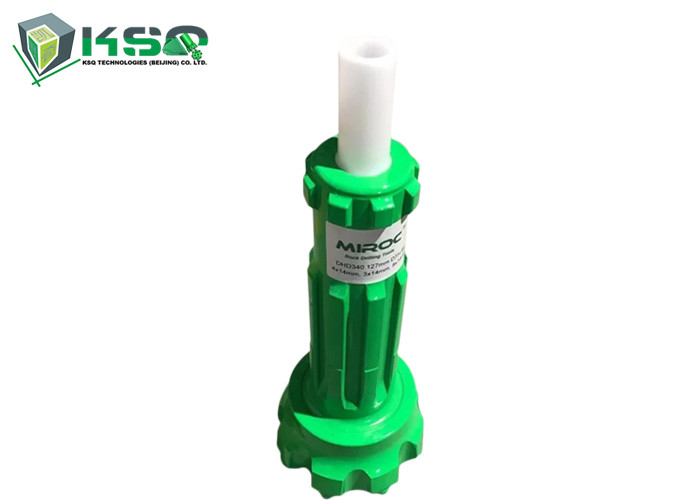

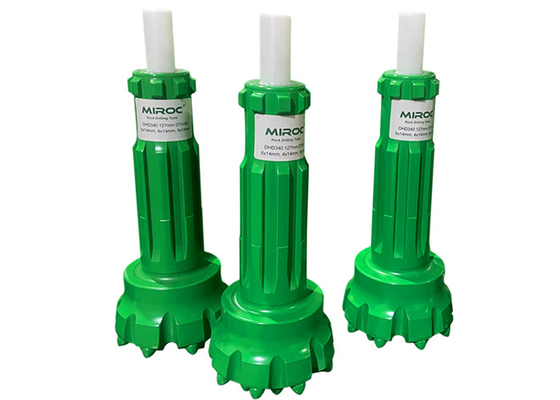

QL60 Low Air Pressure Carbide Flat Face For Water Well Drilling DTH Drill Bits
Product Description
DTH bits are made of tungsten carbide and steel. Our DTH hammer bit adopts superior material to manufacture, they can be suitable for kinds of rocks and widely used in ore mining and water well drilling to mine hard rocks.
Specification
Product: |
DTH Hammer Bits |
Low Air Pressure: |
CIR80, CIR90 |
3’’ |
DHD3.5, M30, |
4’’ |
DHD340, SD4,QL40, M40 |
5’’ |
DHD350, SD5,QL50, M50 |
6’’ |
DHD360, SD6,QL60, M60 |
8’’ |
DHD380, SD8,QL80, M80 |
Color: |
Green, Gold, Black or based on customer requirements. |
Series: |
COP/ SD/ DHD/ IR/ Mission/ QL/ BR/ CIR etc |
Face: |
Flat Face, Concave Face, Convex Face |
Material: |
High quality carbide and High quality carbon steel |
Specification: |
Weight (kg) |
External Diameter (mm) |
Connection thread |
Hole rang (mm) |
Impact rate |
Recommended rotation speed |
Low air pressure DTH hammer CIR type |
5 ~22 |
50~180 |
CIR** |
55~200 |
820 rpm |
|
Middle air pressure BR & COP type |
10~30 |
70~110 |
|
85~115 |
|
|
3 inch DTH hammer COP34/QL30 etc |
24.5 |
81 |
API 2 3/8” Reg |
90~110 |
28Hz (at 17 bar) |
28 r/min |
4 inch DTH hammer COP44/DHD340 etc |
39.2 |
99 |
API 2 3/8” Reg |
110~150 |
27Hz (at 17 bar) |
25~40 r/min |
5 inch DTH hammer COP54/Mission50 etc |
71.5 |
125 |
API 2 3/8” or API 3 1/2” Reg |
135~165 |
25Hz (at 17 bar) |
20~30 r/min |
6 inch DTH hammer COP64/QL60 etc |
98 |
142 |
API 3 1/2” Reg |
152~216 |
23Hz (at 17 bar) |
15~25 r/min |
8 inch DTH hammer COP84/SD8 etc |
188 |
180 |
API 4 1/2” Reg |
203~305 |
20Hz (at 17 bar) |
15~20 r/min |
Factory Details:
Q:Can I get some samples?
A:Yes,sample orders are welcomed.
Q:Have thread button bit assembled well in stock?
A:No,all thread button bit will be newly produced according to your orders including samples,but we have some stock for your urgency.
Q:Could I use my own logo or design on goods?
A:Yes,customized logo and design on mass production are available.
Q:Can I choose the colors?
A:Yes,customized color is available.
Q:What is the delivery time?
A:A week for sample,15-30days for mass production.
Q:What is the payment term?
A:T/T,L/C at sight,Western Union,Paypal etc.
Q:Can I trust you?
A:Absolutely sure.We are famous company in china and "alibaba" verfied supplier.
Q:May I visit your factory?
A:Sure,welcome any time.We can also pick you up at airport and station.
