| Place of Origin: | China |
| Brand Name: | Mirco |
| Minimum Order Quantity: | negociated one |
|---|---|
| Price: | negociated one |
| Packaging Details: | Bundle |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 5000 Piece/Pieces per Month |
| Model: | API Drill Pipe | Machine Type: | Drilling Tool, Drilling Equipment |
|---|---|---|---|
| Material: | High Manganese Steel | Processing Type: | Casting |
| Length: | R1-R3 | Use: | Oil Drilling |
| High Light: | Threaded Drill Rod,Drill Rod Threaded,drill extension rod |
||

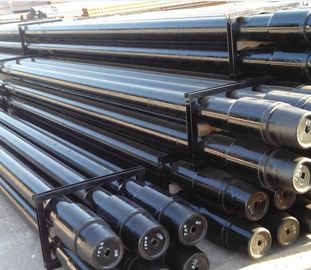

API 5DP S135 /G105 Carbon seamless steel oil drill rod/drill pipe
Oil Drill Pipe
Features
1. High precision in size and shape
2. Good low temperature toughness
3. Excellent comprehensive mechanical properties
4. High connection strength and sealability
5. Large inside diameter of tool joint
6. High torque resistance
7. High fatigue strength and long fatigue life
Technical Parameter
| Size(inch) | Weight Designation | Calculated Plain-End weight | Outside Diameter | Wall Thickness | |||
| Lb/ft | Kg/m | inch | mm | inch | mm | ||
| 2/3/2008 | 6.65 | 6.26 | 9.32 | 2.375 | 60.3 mm | 0.28 | 7.11 mm |
| 2/7/2008 | 10.4 | 9.72 | 14.48 | 2.875 | 73.0 mm | 0.362 | 9.19 mm |
| 3/1/2002 | 9.5 | 8.81 | 13.12 | 3.5 | 88.9 mm | 0.254 | 6.45 mm |
| 3/1/2002 | 13.3 | 12.31 | 18.34 | 3.5 | 88.9 mm | 0.368 | 9.35 mm |
| 3/1/2002 | 15.5 | 14.63 | 21.79 | 3.5 | 88.9 mm | 0.449 | 11.40 mm |
| 4 | 14 | 12.93 | 19.26 | 4 | 101.6 mm | 0.33 | 8.38 mm |
| 4/1/2002 | 13.75 | 12.24 | 18.23 | 4.5 | 114.3 mm | 0.271 | 6.88 mm |
| 4/1/2002 | 16.6 | 14.98 | 22.31 | 4.5 | 114.3 mm | 0.337 | 8.56 mm |
| 4/1/2002 | 20 | 18.69 | 27.84 | 4.5 | 114.3 mm | 0.43 | 10.92 mm |
| 5 | 16.25 | 14.87 | 22.15 | 5 | 127.0 mm | 0.296 | 7.52 mm |
| 5 | 19.5 | 17.93 | 26.71 | 5 | 127.0 mm | 0.362 | 9.19 mm |
| 5 | 25.6 | 24.03 | 35.79 | 5 | 127.0 mm | 0.5 | 12.70 mm |
| Group | Grade | Yield Strength | Tensile Strength | ||||
| Minimum | Maximum | Minimum | |||||
| Psi | Mpa | Psi | Mpa | Psi | Mpa | ||
| 1 | E-75 | 75000 | 517 | 105000 | 724 | 100000 | 689 |
| 2 | X-95 | 95000 | 655 | 125000 | 862 | 105000 | 724 |
| G-105 | 105000 | 724 | 135000 | 931 | 115000 | 793 | |
| S-135 | 135000 | 931 | 165000 | 1138 | 145000 | 1000 | |
About us
Our company's drill pipes are in accordance with API 5D, API SPEC 7 Standards. The
material of drill pipe body are chosen by the 1&3 group of API 5D.(Group 1-Grade E75;
Group 3-Grade X95, G105, S135).
The choice of tool joints is according to the customers’requirements, and the tool joints
are up to API SPEC7 Standards.
