Name: High Air Pressure QL60 DTH Drilling Hammer
Brand: KSQ Technologies (Beijing) Co. Ltd
SKU: QL60 DTH Drilling Hammer
Price: 525.00 USD
Availability: InStock

Home Products DTH Drilling Tools

High Air Pressure QL60 DTH Drilling Hammer

Product Details:

Place of Origin:	China
Brand Name:	KSQ
Certification:	ISO
Model Number:	QL60 DTH Drilling Hammer

Payment & Shipping Terms:

Minimum Order Quantity:	negociated one
Price:	negociated one
Packaging Details:	wooden box or plastic box
Delivery Time:	10-15 days
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	10000 Piece/Pieces per Month

Contact Now

Detailed Product Description

Model:	QL Series	Type:	DTH Drill Hammer
Machine Type:	Drilling Tool, Drilling Equipment	Processing Type:	Forging
Use:	Quarry Or Mine Or Ore	Drill Diameter:	65mm-800mm
Color:	As Customers' Requirements
Highlight:	down the hole drilling tools , downhole drilling tools

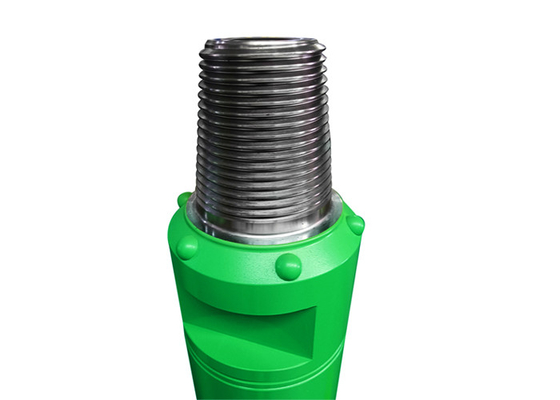

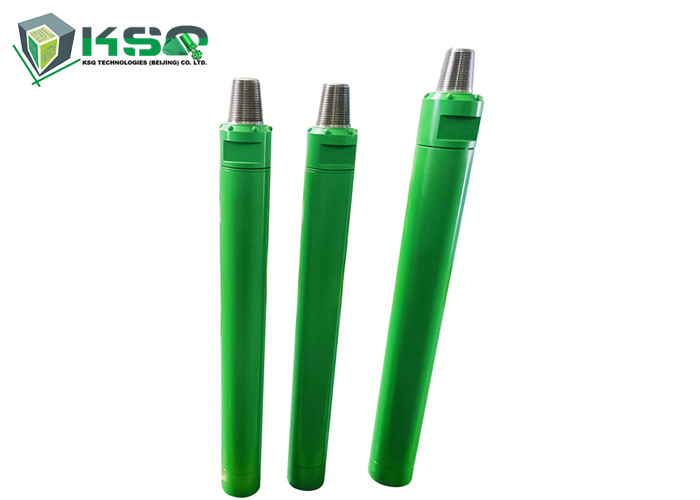

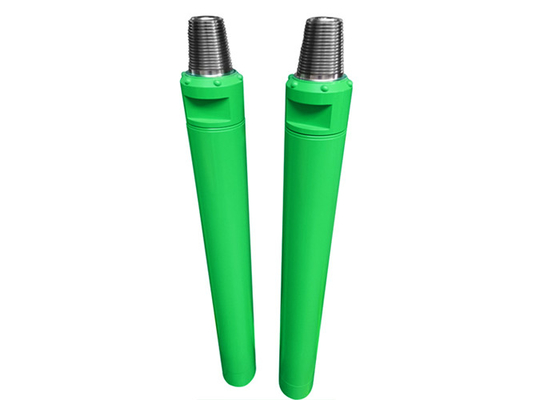

High Air Pressure QL60 DTH Drilling Hammer

Apply to:

Surface and underground mining
Tunneling
Quarries
Dam construction
Construction
Geological exploration
Water well

Features:

Suitable for all rock conditions at a wide range of air pressures 116-435psi (8-30bar)
Patent structure reduces consumable parts to avoid interactive wear, increase hammers reliability and increase 10%-30% faster penetration rates and make hammer more easy for maintenance
Heat treated top sub, cylinder, piston, piston case, driver sub give hammers longer service life
Extremely efficient air exhaust provide excellent hole cleaning and allows for drilling against very large volumes of water

After-sales service:

Our sales team will response to your question within 24 hours (holidays excluded)
Technical support will be available in anytime
Free replacement will be provided immediately once any failure confirmed caused by our product quality

Type	Dth hammer
Material	Carbon steel
Use	Well Drilling,mining
Quality	100% quality similarity world top class brands
Advantages	high quality and factory prices
Shank series	COP,MISSION, SD, DHD, BR, QL, BR,CIR etc.
series	low/middle/high air pressure dth hammer
Color	According to your requirements

Compatibility series: COP/SD/DHD/IR/mission/QL

Hammer inch	Bits diameter		Shank
	Metric	Inch
1"	64mm-70mm	2 1/2"-2 3/4"	BR1
2"	70mm-95mm	2 3/4"-3 3/4"	MACH20/BR2
3"	90mm-102mm	3 1/2"-4"	COP32/COP34/MACH303
			M30/DHD3.5/BR3
4"	105mm-152mm	4 1/8"-6"	COP44/DHD340/MACH44
			SD4/M40/QL40
5"	133mm-165mm	5 1/4"-6 1/2"	COP54/DHD350R/MACH50
			SD5/M50/QL50/BR5
6"	152mm-254mm	4 1/8"-10"	COP64/DHD360/SD6
			M60/QL60/Bulroc BR6
8"	203mm-330mm	8"-13"	COP84/DHD380/SD8
			QL80/M80
10"	254mm-380mm	10"-15"	SD10
			NUMA100
12"	305mm-508mm	12"-20"	DHD1120/SD12
			NUMA120/NUMA125
