| Place of Origin: | China |
| Brand Name: | Mirco |
| Certification: | ISO |
| Model Number: | T51 |
| Minimum Order Quantity: | negociated one |
|---|---|
| Price: | negociated one |
| Packaging Details: | wooden box or plastic box |
| Delivery Time: | 10-15 days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 10000 Piece/Pieces per Month |
| Model: | T51 | Type: | Drill Bit |
|---|---|---|---|
| Machine Type: | Drilling Tool, Drilling Equipment | Material: | High Manganese Steel |
| Processing Type: | Forging | Use: | Mining Drilling |
| Bit Diameter: | 102,115, 127mm | ||
| High Light: | industrial drill bits,milling drill bits |
||

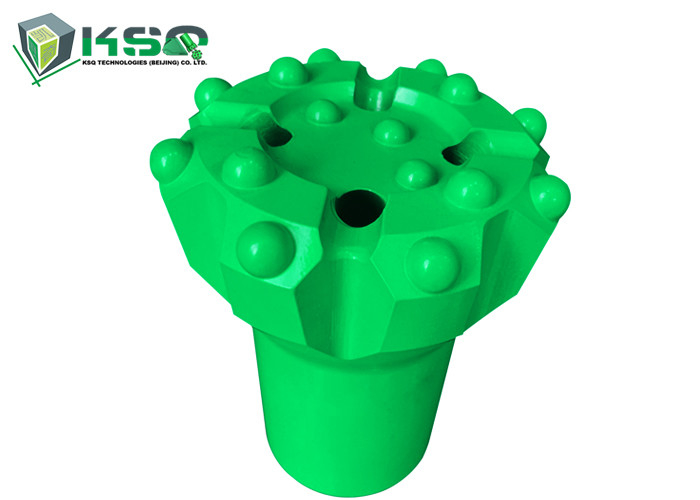

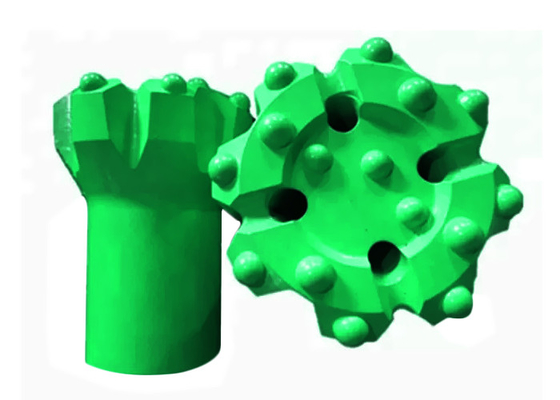

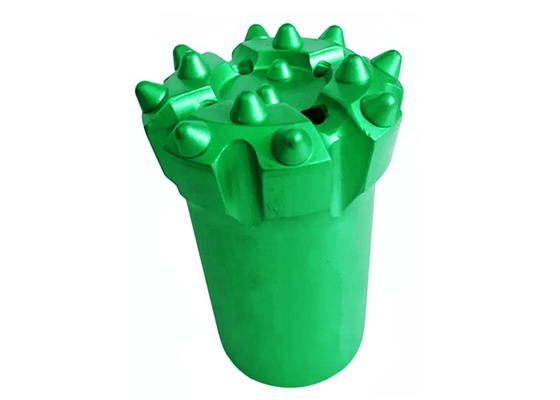

T51 102 115 127mm For Hard Rock Drilling Drop Center Thread Button Drill Bit
Product Description
Thread Drill Button Bit
Thread button drill bits are made by high quality alloy steel bar and tungsten carbides.we can design customized thread button drill bits according to different drilling application, and custom drill bits are applicable to drill soft rock, loose-medium rock and hard rock.
|
Product Name |
Thread Rock Drill Bit |
|
Thread |
R25,R28,R32,R38,T38,T45,T51,ST58, ST68 |
|
Diameter |
32mm-152mm (or 1 1/4 inch to 6 inch) |
|
Drill Bit Type |
Button Bit, Retrac Bit, Dome Bit, Reaming Bit, Cross Bit |
|
Carbide Insert |
Spherical and ballistic |
|
Body Design |
Normal body and retrac body |
|
Face Design |
Flat face and drop center face |
|
Material |
High strength alloy steel bar and tungsten carbide |
|
Color |
Green, Gold, Black or based on customer requirements. |
Specification:
|
Diameter |
T.C buttons |
Flushing hole |
Angle |
Weight |
|||
|
mm |
inch |
Gauge x mm |
Front x mm |
Side |
Front |
Gauge |
Kg |
|
89 |
31/2 |
8x14 |
5x12 |
1 |
2 |
35° |
4.69 |
|
89 |
31/2 |
8x13 |
6x13 |
1 |
2 |
35° |
4.52 |
|
89 |
31/2 |
8x13 |
4x11,2x9 |
1 |
4 |
35° |
4.48 |
|
89 |
31/2 |
8x13 |
4x13,1x13 |
1 |
4 |
35° |
4.47 |
|
89 |
31/2 |
9x12 |
6x10 |
0 |
3 |
35° |
4.68 |
|
102 |
4 |
8x14 |
6x12 |
1 |
2 |
35° |
6.85 |
|
102 |
4 |
8x15 |
4x13,1x13 |
0 |
4 |
35° |
7.42 |
|
102 |
4 |
8x14 |
4x12,2x12 |
1 |
4 |
35° |
7.35 |
|
102 |
4 |
9x13 |
8x13 |
1 |
3 |
35° |
7.45 |
|
115 |
41/2 |
8x15 |
4x13,2x13 |
1 |
4 |
35° |
9.25 |
|
115 |
41/2 |
8x16 |
7x14 |
1 |
2 |
40° |
9.48 |
|
115 |
41/2 |
9x14 |
8x14 |
1 |
3 |
35° |
9.52 |
|
127 |
5 |
8x16 |
4x16,2x13 |
1 |
4 |
35° |
12.85 |
|
127 |
5 |
8x14 |
4x13,3x14 |
1 |
4 |
35° |
12.68 |
|
127 |
5 |
8x16 |
8x15 |
1 |
2 |
35° |
12.78 |
|
127 |
5 |
9x14 |
8x13 |
1 |
3 |
35° |
12.65 |
