Product Details:
Place of Origin: China
Brand Name: MIROC
Model Number: Coupling Sleeve
Payment & Shipping Terms:
Minimum Order Quantity: 10 Pieces
Price: negotiation
Packaging Details: Carton Box or Wooden Box
Delivery Time: 25 days
Supply Ability: 20000 pieces per month
Contact Now
Detailed Product Description
Type: Coupling Use: Underground Mining
Material: Alloy Steel Processing Type: Forging
Color: According To Customer's Requirement Application: Rock Drilling
High Light:

crossover coupling

,

rock drilling tool

Product Information

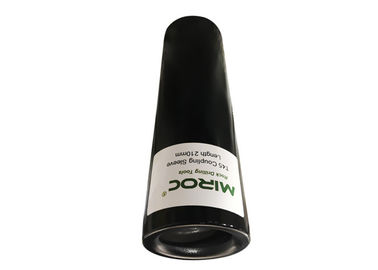

R25,R28,R32,R38,T38,T45,T51 Thread Crossover Drill CouplingDrill Couplings for Harding Rock Drilling 0







Product Name:

Thread coupling sleeve

Thread

R25,R28,R32,R38,T38,T45,T51

Diameter

35mm-77mm (or 1 3/8 inch to 3 inch)

Length

150mm-235mm (or 6 inch to 9 1/4 inch)

Material:

High strength alloy steel bar

Type

full-bridge, semi-bridge etc.

Color

Green, Gold, Black or based on customer requirements.

MOQ:

No MOQ required for testing and trial order



Couplings sleeve are used to well connect the shank adapter to the drill rods or well contact two extensionrods for transmitting energy. It has standard type coupling and crossover coupling.


Applications



R25, R28, R32, R38

Used in drifting and tunneling.



T38, T45, T51

Used in benching and long hole drilling.



Processing



CNC milling and proprietary heat treatment process



Competitive Advantage


High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance

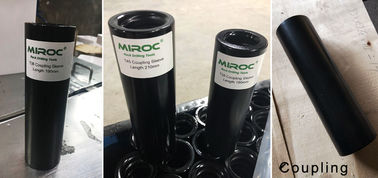

R25,R28,R32,R38,T38,T45,T51 Thread Crossover Drill CouplingDrill Couplings for Harding Rock Drilling 1

Specification



Coupling Sleeve
Length Diameter Thread Weight Part Number
mm inch mm inch   kg
R25 Coupling Sleeve
150 6    35 1 3/8 R25 0.7 4148300429
155 6 1/9 44 1 3/4 R25 1.0 4148300430
160 6 2/7 38 1 1/2 R25 1.3 4148300431
R28 Coupling Sleeve
150 6    40 1 4/7 R28 0.9 4148300483
170 6 2/3 55 2 1/6 R28 2.0 4148300484
R32 Coupling Sleeve
150 6    44 1 3/4 R32 1.0 4148300646
160 6 2/7 44 1 3/4 R32 1.1 4148300647
R38 Coupling Sleeve
170 6 2/3 55 2 1/6 R38 1.9 4148300703
190 7 1/2 55 2 1/6 R38 2.1 4148300704
T38 Coupling Sleeve
190 7 1/2 55 2 1/6 T38 2.1 4148300803
T45 Coupling Sleeve
210 8 1/4 63 2 1/2 T45 3.0 4148300881
210 8 1/4 66 2 3/5 T45 3.3 4148300882
T51 Coupling Sleeve
225 8 6/7 71 2 4/5 T51 4.6 4148300961
225 8 6/7 76 3    T51 4.8 4148300962
235 9 1/4 72 2 5/6 T51 4.7 4148300963
235 9 1/4 77 3    T51 4.9 4148300964



Keywords



Thread coupling sleeve, R25 R28 R32 R38 T38 T45 T51 coupling sleeve

Crossover coupling, full bridge coupling, semi- bridge coupling



Manguito de acoplamiento de rosca, manguito de acoplamiento R25 R28 R32 R38 T38 T45 T51
Acoplamiento Crossover, acoplamiento de puente completo, acoplamiento puente semi-



Company Information

KSQ Technologies (Beijing) Co. Ltd. is a diversified enterprise based in Beijing, China, offering a portfolio of products that help contribute to a better bottom line and increase workplace safety for the construction and mining industries.



KSQ Technologies (Beijing) Co. Ltd. has significant experience and know-how in the supply of materials, components, finished goods, specially designed/engineered equipment, and services from China. The company caters to medium to large scale clients who are doing projects and capital expansion, as well as to firms who require support with consumable products, maintenance, and repair operations. Our operations are based on the unique expertise of our people and knowledge with customer processes.



Our portfolio includes:

Consumables used in the mining and construction industries
Equipment used in the mining and construction industries
Spare parts used for the equipment we sell for the mining and construction industries
Green technologies, such as products that reduce electric consumption or use alternate sources of energy (solar, wind, etc.)

R25,R28,R32,R38,T38,T45,T51 Thread Crossover Drill CouplingDrill Couplings for Harding Rock Drilling 2R25,R28,R32,R38,T38,T45,T51 Thread Crossover Drill CouplingDrill Couplings for Harding Rock Drilling 3

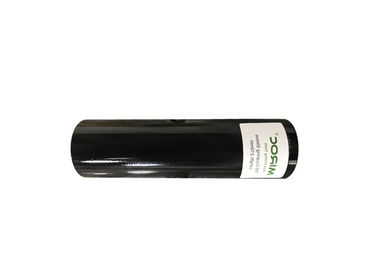

R25,R28,R32,R38,T38,T45,T51 Thread Crossover Drill CouplingDrill Couplings for Harding Rock Drilling 4
