| Place of Origin: | China |
| Brand Name: | MIROC |
| Model Number: | Retractable Drill Bit |
| Minimum Order Quantity: | negotiation |
|---|---|
| Price: | negotiation |
| Packaging Details: | Carton Box or Wooden Box |
| Delivery Time: | 10-22days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 30000pcs per month |
| Type: | Retractable Drill Bit | Thread: | T45,102mm |
|---|---|---|---|
| Processing Type: | Forging | Use: | Mining,Tunneling,Quarrying,Construction |
| Color: | Any Color Is Available | Model: | T45 Button Bit |
| Body: | Retrac | Face: | Drop Center |
| High Light: | stone drilling bits,spherical drill bit |
||

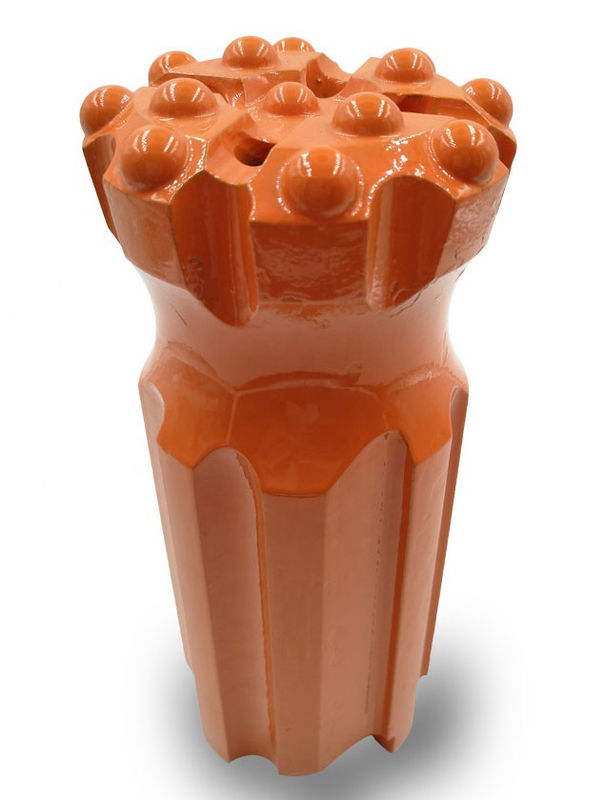

Top hammer bits 102mm T45 straight retrac drop center button bit
Description
specification
| Product Name | Bit Diameter | Carbide Button | Angle | Flushing Hole | Weight (kg) | |||
| (mm) | (inch) |
Front (No. x mm) |
Gauge (No. x mm) |
Front | Side | |||
| T45 Retrac Bit | 70 | 2 3/4 | 3x11, 1x9 | 6x11 | 35° | 3 | - | 2.5 |
| 70 | 2 3/4 | 4x10, 1x10 | 8x11 | 35° | 4 | - | 2.5 | |
| 76 | 3 | 4x11 | 8x11 | 40° | 2 | - | 3.2 | |
| 76 | 3 | 4x11 | 8x12 | 35° | 2 | 1 | 3.2 | |
| 76 | 3 | 3x11, 1x11 | 6x13 | 35° | 3 | 1 | 3.2 | |
| 76 | 3 | 4x11, 1x11 | 8x11 | 35° | 4 | - | 3.2 | |
| 76 | 3 | 4x11, 1x11 | 8x12 | 35° | 4 | - | 3.2 | |
| 89 | 3 1/2 | 4x13 | 8x13 | 40° | 2 | - | 5.4 | |
| 89 | 3 1/2 | 6x11 | 8x12 | 35° | 2 | - | 5.4 | |
| 89 | 3 1/2 | 3x11, 2x11 | 8x13 | 35° | 3 | 1 | 5.4 | |
| 89 | 3 1/2 | 4x11, 1x11 | 8x12 | 35° | 4 | - | 5.4 | |
| 89 | 3 1/2 | 4x13, 1x13 | 8x13 | 35° | 4 | - | 5.4 | |
About us
MIROC® Rock Drilling Tools are Rock Drilling Tools Brand by KSQ Tecnologies (Beijing) Co. Ltd.
KSQ Technologies (Beijing) Co. Ltd. provides exceptional technical know-how in development, production, and application. The company has adopted advanced manufacturing processes to ensure high quality steels and tungsten carbide inserts for its rock drilling accessories. Its personnel understand clients’ drilling needs, and have the service skills to recommend the right drilling tools for the job. Its experienced product developers can also create custom tools. Furthermore, the company’s development team introduces innovative products each year – tools that are rigorously tested in the field and proven
to perform beyond industry expectations.
MIROC® Rock Drilling and Ground Support Tools include:
Integral Rods
Plug Hole Rods
Tapered Drilling Tools
Extension Drilling Tools
Drifting and Tunneling Tools
Reaming Tools
Shank Rods
Shank Adapters (Striking Bars)
Down-the-hole (DTH) Bits
Down-the-hole (DTH) Hammers
