| Place of Origin: | China |
| Brand Name: | MIROC DTH Button Bit |
| Model Number: | DTH Button Bit |
| Minimum Order Quantity: | 1 Piece DTH Button Bit |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton Box or Wooden Box |
| Delivery Time: | 25 days |
| Supply Ability: | 20000 pieces per month |
| Product Name: | DTH Button Bit | Hammer Type: | COP35 / DHD3.5 |
|---|---|---|---|
| Diameter: | 90mm, 105mm | Color: | Green |
| High Light: | carbide tipped drill bits,dth hammer bits |
||
90mm and 105mm DTH Button Bit for COP35 / DHD3.5 DTH Hammer
DTH Button Bit Description:
Name: DTH Button Bit
Diameter: 90mm and 105mm
Face design: flat face,
Carbide Shape: spherical
Buttons number and diameter: gauge 6x14mm, front 6x12mm,
Flushing holes: 2 front flushing holes
for DHD3.5 hammer,
Weight: 5kg/each

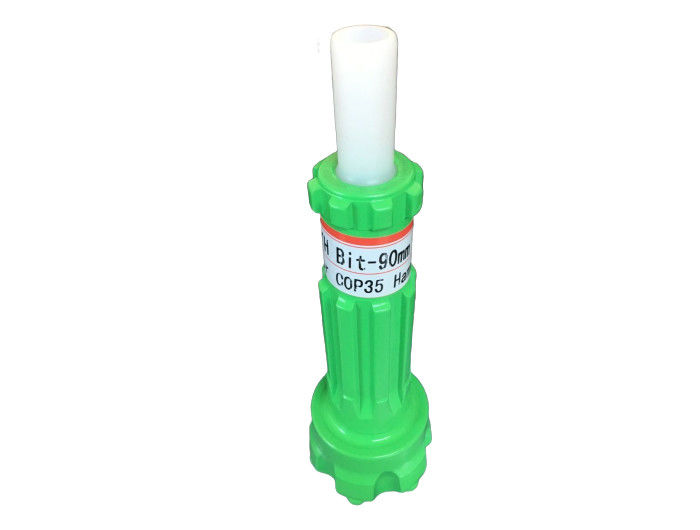

DTH Button Bit Photo:
Bit Face Shape Selection:
Center Drop Bit:
For high penetration rates in soft to medium hard and fissured rock formations. Low to medium air pressure.
Maximum hole deviation control.
Concave Face
The all-around application bit face specifically for medium hard and homogeneous rock formations.
Good hole deviation control and good flushing capacity.
Convex Face
For high penetration rates in soft to medium-hard with low to medium air pressure. It is the most resistance to steel wash and may reduce the load and wear on gauge buttons, but poor hole deviation control.
Double Gauge Face
This kind of face shape is suitable for fast penetration rates in medium to hard rock formations. Designed for high air pressure and good resistance to steel wash step gauge bit.
Flat Face Bit
This kind of face shape is suitable for hard to very hard and abrasive rock formation is applications with high air pressure. Good penetration rates and resistance to steel wash.
Competitive Advantage
• High-grade tungsten carbide inserts
• Bit bodies manufactured from high-grade steel and processed using state-of-the-art CNC machinery and heat treatment
We can design and manufacture the personalized products to meet your special applications, such as changing the tungsten carbide insert profile (spherical, ballistic, etc.), face profile (flat face, concave, convex, etc.), and flushing holes.
Applications
• Underground mining
• Down the hole rock drilling
More information for 3'' High Air Pressure DTH Bits
DTH Button Bits for COP32, COP34, IR3.5, DHD3.5, BR3, QL30 Hammer.
3'' High Air Pressure DTH Button Bit Specification
| 3'' High Air Pressure DTH Bits | ||||||
| DTH Button Bit | Diameter | Buttons and Size (mm) | Flushing hole | Weight | ||
| mm | inch | Gauge | Front | kg | ||
| COP32 | 85 | 3 1/3 | 6x13 | 4x12 | 2 | 4.2 |
| 90 | 3 5/9 | 6x14 | 4x12 | 2 | 4.5 | |
| 95 | 3 3/4 | 6x14 | 5x12 | 2 | 4.7 | |
| 100 | 3 8/9 | 8x12 | 6x12 | 2 | 5.0 | |
| 105 | 4 1/8 | 8x13 | 6x12 | 2 | 5.3 | |
| BR3 | 85 | 3 1/3 | 6x13 | 4x12 | 2 | 4.2 |
| 90 | 3 5/9 | 6x14 | 4x12 | 2 | 4.5 | |
| 95 | 3 3/4 | 6x14 | 5x12 | 2 | 4.7 | |
| 100 | 3 8/9 | 6x14 | 6x12 | 2 | 5.0 | |
| 105 | 4 1/8 | 8x13 | 6x12 | 2 | 5.3 | |
| IR3.5/COP34 | 85 | 3 1/3 | 6x13 | 4x12 | 2 | 4.2 |
| 90 | 3 5/9 | 6x14 | 4x12 | 2 | 4.5 | |
| 95 | 3 3/4 | 6x14 | 5x12 | 2 | 4.7 | |
| 100 | 3 8/9 | 6x14 | 6x12 | 2 | 5.0 | |
| 105 | 4 1/8 | 8x13 | 6x12 | 2 | 5.3 | |
| QL30 | 85 | 3 1/3 | 6x13 | 4x12 | 2 | 4.2 |
| 90 | 3 5/9 | 6x14 | 4x12 | 2 | 4.5 | |
| 95 | 3 3/4 | 6x14 | 5x12 | 2 | 4.7 | |
| 100 | 3 8/9 | 8x13 | 6x12 | 2 | 5.0 | |
| 105 | 4 1/8 | 8x13 | 6x12 | 2 | 5.5 | |
KSQ Related DTH Button Bits
| Product | DTH Button Bits |
| Low Air Pressure | CIR80, CIR90 |
| 3’’ | DHD3.5, M30, |
| 4’’ | DHD340, SD4,QL40, M40 |
| 5’’ | DHD350, SD5,QL50, M50 |
| 6’’ | DHD360, SD6,QL60, M60 |
| 8’’ | DHD380, SD8,QL80, M80 |
| Color | Green, Gold, Black or based on customer requirements. |
| MOQ: | No MOQ required for testing and trial order |
Keywords
DTH BIT, DTH Button Bit, Down The Hole Button Bit, Rock Bit, Rock Drill Bit,
Low Air Pressure DTH Button Bit, High Air Pressure DTH Button Bit

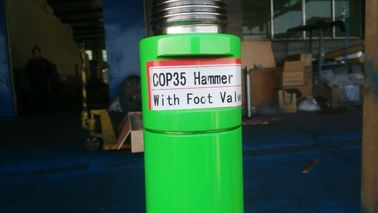

DTH Button Bit Photos:
Rock Drilling Tools Brand MIROC®
The MIROC® Rock Drilling Tools product line by KSQ Technologies (Beijing) Co.Ltd. is the result of years of advanced engineering, precision manufacturing, and dedication to the use of high-quality materials.
MIROC® Rock Drilling Tools are used by many drilling professionals related to mining, construction, tunneling, and quarrying projects around the globe.
MIROC® Rock Drilling Tools include:
