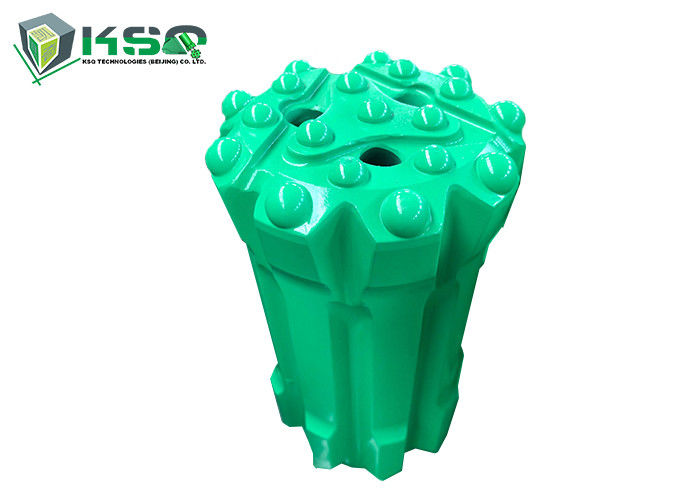

GT60 Button Bit and Carbide Drill Bit Dia 115mm for Underground mining

GT60 Button Bit and Carbide Drill Bit Dia 115mm for Underground mining

 GT60 Button Bit and Carbide Drill Bit Dia 115mm for Underground mining
 GT60 Button Bit and Carbide Drill Bit Dia 115mm for Underground mining
 GT60 Button Bit and Carbide Drill Bit Dia 115mm for Underground mining
Product Details:
Place of Origin: Shangdong,China
Brand Name: MIROC
Certification: ISO9001
Model Number: Rock Button Bit
Payment & Shipping Terms:
Minimum Order Quantity: 5 Pieces
Price: negotiation
Packaging Details: Carton Box or Wooden Box
Delivery Time: 10-22days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 30000pcs per month
Contact Now
Detailed Product Description
Material: Tungsten Carbide Processing Type: Forging
Button Bit Shape: Spherical Face Shape: Flat Face
Body Shape: Normal Body Thread: GT60 92-152mm
Name: GT60 Button Bit
Highlight:

stone drilling bits

,

mining drill bits

GT60 Button Bit and Carbide Drill Bit

Dia 115mm for Underground mining

Product

 GT60 Button Bit and Carbide Drill Bit Dia 115mm for Underground mining 0



Product   GT60 Button bit
Skirt   Retrac
Buttons   12x10mm,14x9mm
Flushing hole No.   3
Weight   9.8KG
Color    Green  (customized according to customer needs)

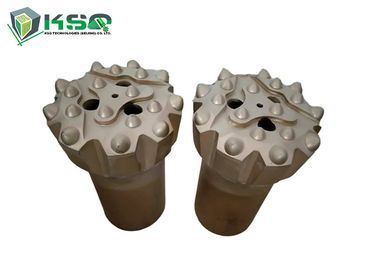

Latest shipment photos

 GT60 Button Bit and Carbide Drill Bit Dia 115mm for Underground mining 1 GT60 Button Bit and Carbide Drill Bit Dia 115mm for Underground mining 2





Description

Button bit is well known for its high wear resistance on medium-hard to hard abrasive rock formations (between 200 Mpa to 260 Mpa compressive strength). Featuring spherical tungsten carbide inserts that is known to have strong configuration against carbide fracture.



• Widely used drifting and tunneling
• Bit face design is ideal for medium-hard to hard abrasive rock



Product specifications: GT60 Button Bit

GT60 Drill bits Dia. Tip size (mm) Flushing hole No. Weight
mm inch Front Gauge Angle Side Front

Normal thread
  92 3 5/8" 13x4,13x1 13x8 35° 4 - 5.3
96 3 3/4" 13x4,13x1 14x8 35° 4 - 5.6
102 4" 11x9 13x9 35° 3 - 6
115 4 1/2" 12x10 14x9 35° 3 - 6.8
127 5" 13x10 14x9 35° 3 - 7.5
140 5 1/2" 14x10 16x9 35° 3 - 9
152 6" 14x12 16x9 35° 3 - 10.6
Retrac thread
  92 3 5/8" 12x9 12x9 40° 2 - 5.4
96 3 3/4" 12x9 12x9 40° 2 - 6.3
102 4" 12x10 13x9 40° 2 - 7.3
115 4 1/2" 12x10 14x9 35° 3 - 9.8
118 4 5/8" 13x6 16x9 35° 3   10
127 5" 13x10 14x9 35° 3 - 12
140 5 1/2" 14x10 16x9 35° 3 - 14.0
152 6" 14x12 16x9 35° 3 - 16




We can design and manufacture the personalized products to meet your specical apllication, such as changing the tungsten carbide insert profile (spherical, ballistic, etc.), face profile (flat face, drop center, etc.), and body type( Normal and retrac etc.).



Applications of  rock drilling Bit

• Underground mining
• Tunneling,quarrying



Competitive Advantage

• High grade tungsten carbide inserts
• Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment





 GT60 Button Bit and Carbide Drill Bit Dia 115mm for Underground mining 3
 GT60 Button Bit and Carbide Drill Bit Dia 115mm for Underground mining 4
 GT60 Button Bit and Carbide Drill Bit Dia 115mm for Underground mining 5
 GT60 Button Bit and Carbide Drill Bit Dia 115mm for Underground mining 6 GT60 Button Bit and Carbide Drill Bit Dia 115mm for Underground mining 7
