Place of Origin: | China |
Brand Name: | MIROC Rock Drilling Tools |
Certification: | API |
Minimum Order Quantity: | 1 Pieces Hard Rock Drilling Tools |
---|---|
Price: | Negotiation |
Packaging Details: | Plywood Case |
Delivery Time: | 10- 25 days |
Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
Supply Ability: | 20000pcs per month |
Name: | Rock Drilling Tools | MF Rod Thread: | T38 Speed Rod |
---|---|---|---|
Drifter Rod Thread: | R38 Drill Rod | Coupling Sleeve Thread: | R32 Coupling Sleeve |
Highlight: | rock drill tools,mining drilling tools |
API Standard Rock Drilling Tools Drifter Rod MF Rod Coupling Sleeve Button Bit
1 | MF Rod | MF39-T38-1830 P/N4148300784 | 18.3kg |
2 | MF Rod |
MF39-T38-3660 P/N4148300786 |
33.6kg |
3 | MF Rod |
MF39-T38-6095 P/N4148300790 |
53.9kg |
4 | Drifter Rod |
R38-R32 Drifter Rod L: 4310 mm Hex35 P/N4148300570 |
33.4kg |
5 | Drifter Rod |
R38-R32 Drifter Rod L: 6100 mm Hex35 P/N4148300573 |
47.3kg |
6 | Drifter Rod |
T38-R32 Drifter Rod L:3090 mm Hex35 P/N4148300567 |
24kg |
7 | Drifter Rod |
T38-R32 Drifter Rod L:4310 mm Hex35 P/N4148300570 |
33.4kg |
8 | Drifter Rod |
T38-R32 Drifter Rod L:6100 mm Hex35 P/N4148300573 |
47.3kg |
9 | Coupling Sleeve |
Coupling Sleeve R38-R38 190mm P/N4148300704 |
2.1kg |
10 | Coupling Sleeve |
Coupling Sleeve T38-T38 190mm P/N4148300803 |
2.1kg |
11 | Coupling Sleeve |
Coupling Sleeve T38-R38 190mm P/N4148300704 |
2.1kg |
12 | Coupling Sleeve |
Coupling Sleeve R38-R32 160mm P/N4148300647 |
1.1kg |
13 | Button Bit |
B1376-R32-S, R32 76mm drop center spherical button bit, normal body, buttons: front 4x11mm, 1x11mm, gauge 8x11mm, 4 front flushing holes P/N4148300602 |
2.6kg |
14 | Button Bit |
B1264-R32-S, R32 64mm flat face spherical button bit, normal body, buttons: front 4x10mm, gauge 8x10mm, 2 front flushing holes and 2 side flushing holes. P/N4148300504 |
1.6kg |
15 | Button Bit |
B964-R32-S, R32 64mm flat face spherical button bit, normal body, buttons: front 3x11mm, gauge 6x12mm, 3 front flushing holes P/N4148300598 |
1.6kg |
16 | Button Bit |
B851-R32-S, R32 51mm flat face spherical button bit, normal body, buttons: front 2x10mm, gauge 6x10mm, 2 front flushing holes P/N4148300500 |
1kg |
17 | Button Bit |
B845-R32-S, R32 45mm flat face spherical button bit, normal body, buttons: front 2x9mm, gauge 6x10mm, 2 front flushing holes P/N4148300493 |
0.8kg |
18 | Shank Adapter |
R38 diameter 45mm length 500mm for HLX 5, HFX 5 P/N414832615 |
5.2kg |
19 | Shank Adapter |
T38 diameter 45mm length 500mm for HLX 5, HFX 5 P/N414832616 |
5.1kg |
20 | Shank Adapter |
R38 diameter 38mm length 435mm for COP1440 P/N414832459 |
3.9kg |
21 | Shank Adapter |
R32 diameter 38mm length 435mm for COP1440 P/N414832458 |
3.6kg |
22 | Shank Adapter |
T38 diameter 38mm length 435mm for COP1440 P/N414832460 |
3.8kg |

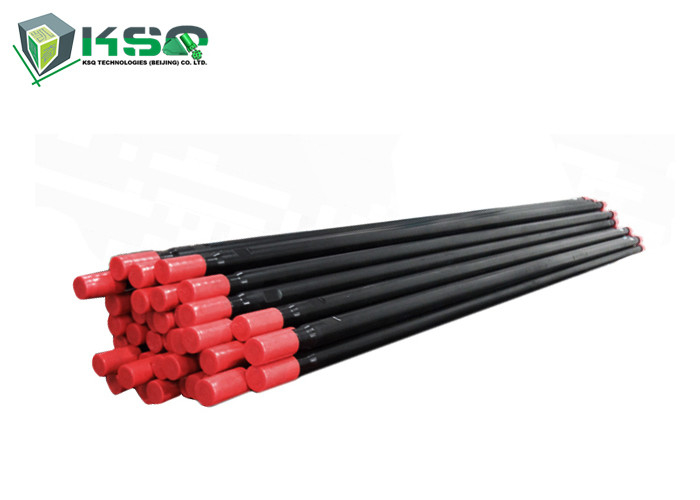

MF Rod Photo
