| Place of Origin: | China |
| Brand Name: | MIROC Shank Adapter |
| Certification: | SGS, ISO |
| Model Number: | Shank Adapter (for Furukawa Drifter) |
| Minimum Order Quantity: | 10 Piece Shank Adapter |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton Box or Wooden Box |
| Delivery Time: | 20 days production for shank adapter |
| Supply Ability: | 20000 pieces per month |
| Product: | Mining Drilling Shank Adapter | Diameter: | 40mm 44mm 45mm 51mm |
|---|---|---|---|
| Length: | 500mm 515mm 654mm | Thread: | R38 T38 T45 |
| Application: | Drifting Drilling, Bench Drilling | Model: | T38 Furukawa HD 300 Length 655 Mm |
| High Light: | drill bit shank adapter,threaded shank drill bit adapter |
||
Drill Shank Adapter R38 T38 T45 Thread For Furukawa HD90 HD190 HD300 HD609 HD612RP PD200 PD300 HD609RP
While every component in the drill string is crucial, the shank adapter must be engineered to withstand the most extreme stress. Its function is to transmit impact energy from the rock-drill piston, as well as rotation torque, into the drill string without energy losses. It must withstand and transmit up to 6300 blows per minute from the piston continually, with great endurance and dependability. With this in mind, we manufacture premium quality shank adapters for most brands of the drill machine.
Shank Adapter for Furukawa Drifter:
R38 T38 T45 Shank Adapter for Furukawa Drifter HD135/135A
R38 T38 T45 Shank Adapter for Furukawa Drifter HD150
R38 T38 T45 Shank Adapter for Furukawa Drifter HD175
R38 T38 T45 Shank Adapter for Furukawa Drifter HD180
R38 T38 T45 Shank Adapter for Furukawa Drifter HD190
R38 T38 T45 Shank Adapter for Furukawa Drifter HD200
R38 T38 T45 Shank Adapter for Furukawa Drifter HD210
R38 T38 T45 Shank Adapter for Furukawa Drifter HD260
R38 T38 T45 Shank Adapter for Furukawa Drifter HD300
R38 T38 T45 Shank Adapter for Furukawa Drifter HD500
R38 T38 T45 Shank Adapter for Furukawa Drifter HD606
R38 T38 T45 Shank Adapter for Furukawa Drifter HD609
R38 T38 T45 Shank Adapter for Furukawa Drifter HD609RP
R38 T38 T45 Shank Adapter for Furukawa Drifter HD612
R38 T38 T45 Shank Adapter for Furukawa Drifter HD612RP
R38 T38 T45 Shank Adapter for Furukawa Drifter HD615
R38 T38 T45 Shank Adapter for Furukawa Drifter HD615RP
R38 T38 T45 Shank Adapter for Furukawa Drifter HD709
R38 T38 T45 Shank Adapter for Furukawa Drifter HD709RP
R38 T38 T45 Shank Adapter for Furukawa Drifter HD712
R38 T38 T45 Shank Adapter for Furukawa Drifter HD712RP
Shank Adapter Specification
| Furukawa SHANK ADAPTER | ||||||
| Furukawa HD 90 | Thread | Diameter | Length | Flushing | Weight | Part Number |
| mm | mm | kg | ||||
| R38 | 40 | 515 | - | 4.3 | 414832528 | |
| Furukawa HD 190 | Thread | Diameter | Length | Flushing | Weight | Part Number |
| mm | mm | kg | ||||
| R38 | 40 | 500 | - | 4.5 | 414832529 | |
| T38 | 40 | 500 | - | 4.5 | 414832530 | |
| Furukawa HD 300 | Thread | Diameter | Length | Flushing | Weight | Part Number |
| mm | mm | kg | ||||
| T38 | 45 | 654 | 16 | 6.0 | 414832531 | |
| T45 | 45 | 654 | 16 | 6.7 | 414832532 | |
| Furukawa HD 609 | Thread | Diameter | Length | Flushing | Weight | Part Number |
| mm | mm | kg | ||||
| T38 | 45 | 690 | - | 6.3 | 414832533 | |
| T45 | 45 | 690 | - | 6.4 | 414832534 | |
| Furukawa HD 612 RP | Thread | Diameter | Length | Flushing | Weight | Part Number |
| mm | mm | kg | ||||
| T45 | 51 | 884 | - | 11.2 | 414832535 | |
| Furukawa PD200 | Thread | Diameter | Length | Flushing | Weight | Part Number |
| mm | mm | kg | ||||
| T38 | 45 | 485 | 14.3 | 5.0 | 414832536 | |
| T45 | 45 | 485 | 14.3 | 5.4 | 414832537 | |
Hydraulic shanks generally have at least a 5 to 14-spline configuration. Pneumatic shanks tend to have internal or through-flushing. They can be identified by their lugs or 4-spline configuration.
Competitive Advantage
Applications
• Bolting, drifting
• Bench drilling
• Production drilling
We can design and manufacture personalized products to meet your special application, such as changing the length, diameter, etc.
Keywords
shank adapter | adaptador de la espiga | adaptador de cabo | Adaptateur à tige | Schaft -Adapter | sap adaptörü | per gambo | sovituskantaan | nackadapter | nakkeadapteren | adapter cholewka |

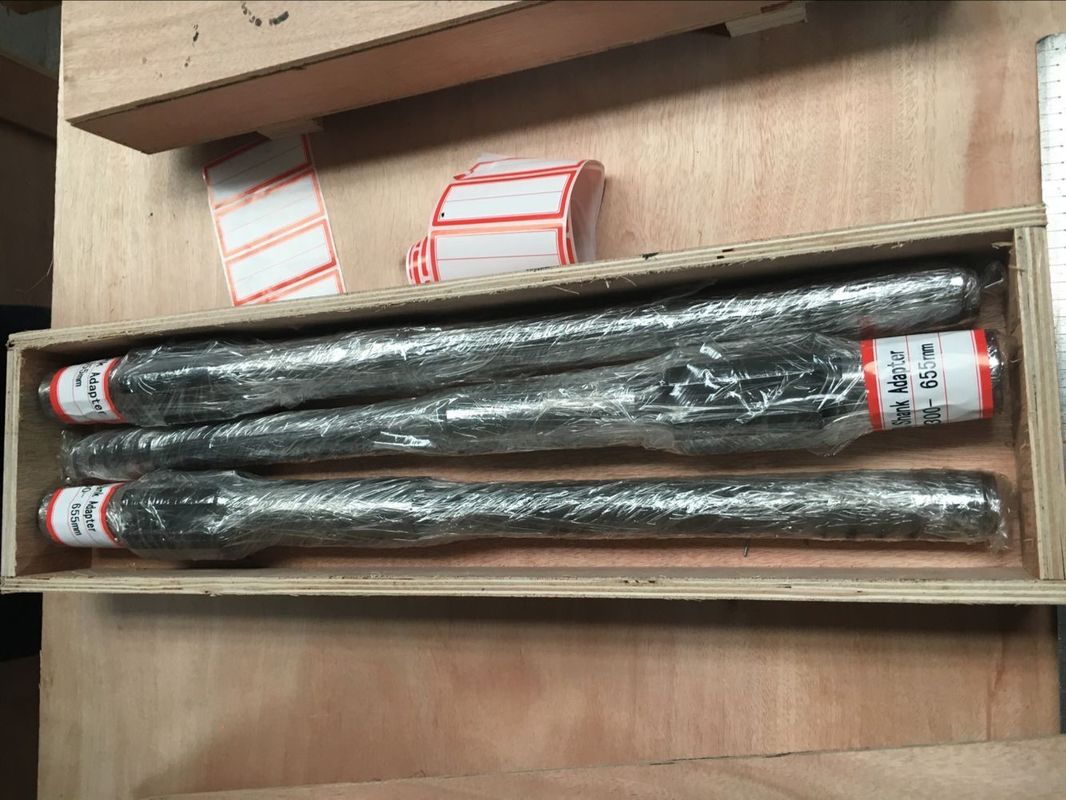

T38 Shank adapter for Furukawa HD 300 length 655mm
Shank Adapter Specification
