T45 Ballistic / Spherical Button 89mm For Hard Rock Drilling Threaded Button Bits
T45 89mm Flat face with Spherical Button Bit:
Product: T45 Button Bit
Diameter: 89mm / 3 1/2 Inch
Thread: T45
Face Design: Flat face
Button/Carbide Type: Spherical
Button Number and Diameter: Gauge 8x12mm, front 6x12mm
Flushing Holes: 2 front flushing holes and 2 side flushing holes
Prime Line: have two prime line
Weight: 4.6kg per piece
Color: Green
Part Number: P/N4148300814

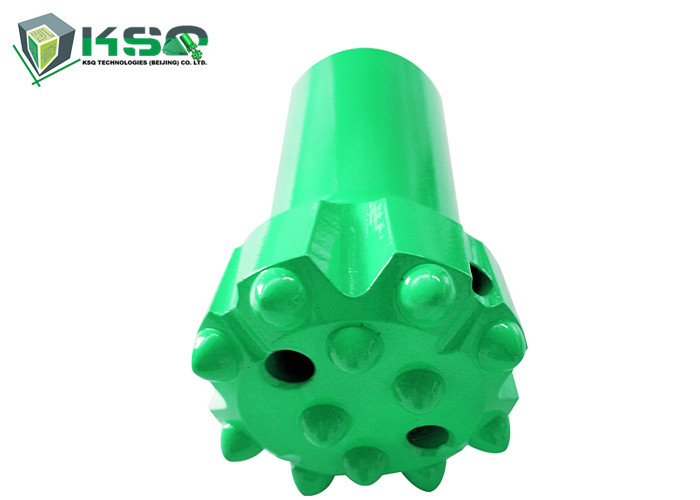

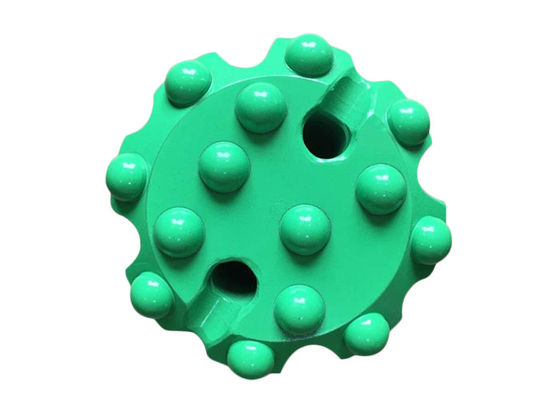

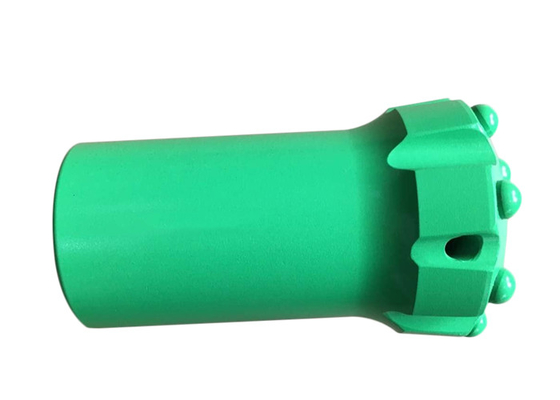

Photo:
Carbide Shape Photo
In addition to the choice of tunsten carbide button grade, how to choose the drill bit design is very important for the drilling work efficiency, also it will have a direct impact on the hole effect & vertical degree. Combined with our production and sales experience, we have summarized some of the following lessons for reference only:
How to choose the bit tooth type:
Spherical buttons: The height of exposed teeth is low, mainly used in the very hard rock formation above F14, to improve wear resistance, to prevent the situation of debris, it should take lower drilling speed.
Ballistic buttons: It can expose more height of buttons, mainly used in soft rock and ordinary rock below F12, with quicker drilling speed, but encountered hard rock, very easily to happen buttons debris phenomenon.
Processing
CNC milling and proprietary heat treatment process
Competitive Advantage
High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance
High-grade tungsten carbide inserts
T45 Thread Button Bit Specification
| T45 Button Bit |
| Thread |
Diameter |
Buttons and Size (mm) |
Flushing hole |
Weight |
Part Number |
| mm |
inch |
Front |
Gauge |
Angle |
Front |
Side |
kg |
| T45 |
76 |
3 |
4×11 |
8×11 |
40° |
2 |
- |
2.6 |
4148300807 |
| 76 |
3 |
5×11 |
8×12 |
35° |
2 |
1 |
2.6 |
4148300808 |
| 76 |
3 |
3×11,1×11 |
6×13 |
35° |
3 |
- |
2.4 |
4148300809 |
| 76 |
3 |
4×11,1×11 |
8×12 |
35° |
4 |
- |
2.6 |
4148300810 |
| 89 |
3 1/2 |
4×13 |
8×13 |
40° |
2 |
- |
4.6 |
4148300811 |
| 89 |
3 1/2 |
6×11 |
8×12 |
35° |
2 |
- |
4.6 |
4148300812 |
| 89 |
3 1/2 |
3×11,2×11 |
6×13 |
35° |
3 |
1 |
4.1 |
4148300813 |
| 89 |
3 1/2 |
4×11,1×11 |
8×12 |
35° |
4 |
- |
4.6 |
4148300814 |
| 89 |
3 1/2 |
4×13,1×13 |
8×13 |
35° |
4 |
- |
4.6 |
4148300815 |
| 102 |
4 |
5×14 |
8×14 |
40° |
2 |
- |
5 |
4148300816 |
| 102 |
4 |
6×13 |
8×16 |
40° |
2 |
1 |
5 |
4148300817 |
| 102 |
4 |
3×13, 2×13 |
6×14 |
35° |
3 |
1 |
4.5 |
4148300818 |
| 102 |
4 |
4×13, 1×13 |
8×14 |
35° |
4 |
- |
4.5 |
4148300819 |
| 102 |
4 |
4×13, 2×13 |
8×13 |
35° |
4 |
1 |
4.5 |
4148300820 |
More T45 Thread Button Bit Specification
T45 Thread button bit
Button type: Spherical button, Hemispherical button, Parabolic button, Ballistic button
Bit face design: flat face, drop center
Diameter: 64mm, 70mm 89mm 102mm
We offer a wide range of button bits.
We can design and manufacture the personalized products to meet your special application, such as changing the tungsten carbide insert profile (spherical, ballistic, etc.), face profile (flat face, drop center, etc.), and body type( Normal and retract, etc.).
Applications
Used in benching and long hole drilling.
