Product Details:
Place of Origin: China
Brand Name: KSQ
Certification: ISO
Model Number: Drilling and Tunneling Shank End Rod
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Carton Box or Wooden Box
Delivery Time: 10 - 20 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20000 PCS Per Month
Contact Now
Detailed Product Description
Material: Tungsten Carbide And High Strength Alloy Steel Colors: Green, Black, Yellow Or Based On Request
Application: Mining Operations, Tunneling, Quarrying, Construction Thread Model: R25
High Light:

rock drill tools

,

mining drilling tools

R25 Rock Drilling Tools High Strength Alloy Steel R25 Shank End Rod



Product Description :

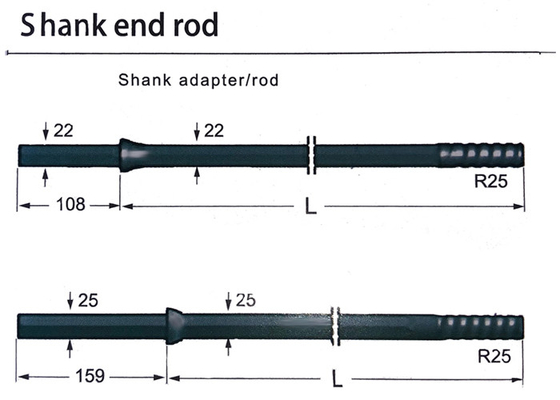

SHANK END ROD Length, mm Diameter, mm Weight approx., kg

Shank Adapter / Rod

22mm x 108mm

610 22 2.6
760 22 2.9
1000 22 3.7
1200 22 4.4
1830 22 6.3
2435 22 8.1
3200 22 10.6
3600 22 12.0

Shank Adapter / Rod

25mm x 159mm

2700 25 11.3
3200 25 13.7



Drill rod using R25 thread system. Suited for short hole drilling operations. For drills capable of receiving Hex 22 mm x 108 mm and Hex 25mm x 159mm shank.

• R25 thread system
• Suitable for small hole range

R25 Rock Drilling Tools High Strength Alloy Steel R25 Shank End Rod 0R25 Rock Drilling Tools High Strength Alloy Steel R25 Shank End Rod 1



Features:



1. High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance;
2. Manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment.



Application:



1. Underground mining and surface mining
2. Drifting, bench and production drilling

3. Granite, basalt, limestone rock etc.
