| Place of Origin: | China |
| Brand Name: | MIROC Top Hammer Rock Drilling Tools |
| Certification: | SGS |
| Model Number: | Speed Rod |
| Minimum Order Quantity: | 10 Pieces Speed Rod |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Carton Box or Wooden Box |
| Delivery Time: | 25 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20000 pieces per month Thread MF- Rod |
| Name: | MF Rod | Type: | Male - Female Thread |
|---|---|---|---|
| Thread: | T45 | Diameter: | 46mm |
| Length: | 3660mm | Application: | Long Hole Drilling And Bench Production Mining |
| High Light: | Threaded Drill Rod,Drill Rod Threaded,drill extension rod |
||
Product introduction
Basic Information
| Product Name | Threaded Drill Rod |
| Thread | R25 R28 R32 R38 T38 T45 T51 |
| Diameter | 22mm, 25mm, 32mm, 35mm, 39mm, 46mm, 52mm |
| Length | 400mm - 5530mm |
| Drill Rod Type | Drifter Rod, Extension Rod, MF-Rod, Speed Rod, Hex Rod, |
| Material | High strength alloy steel bar |
| Color | Black or based on customer requirements. |
Drill rod using T45 thread system.
With wrench flats to aid in coupling/decoupling of rods for extension drilling.
Used in benching and long hole drilling.
Drilling precision can be further improved by using this as the first rod in a normal drill string. Furthermore, since this is a speed rod design it will produce straighter holes and at least 10% higher penetration rate in good rock conditions compared to rod and coupling sleeve combination system
MF Rod
T45 - Round 46 - T45
| Length(mm) | Length(Inch) | Diameter(mm) | Diameter(inch) | Weight(kg) | Part Number | Product Code |
| 1525 | 5 | 46 | 1 4/ 5 | 21.2 | 4148300874 | MF46-T45-1525 |
| 1830 | 6 | 46 | 1 4/ 5 | 24.6 | 4148300875 | MF46-T45-1830 |
| 3050 | 10 | 46 | 1 4/ 5 | 38.2 | 4148300876 | MF46-T45-3050 |
| 3660 | 12 | 46 | 1 4/ 5 | 45 | 4148300877 | MF46-T45-3660 |
| 4270 | 14 | 46 | 1 4/ 5 | 51.9 | 4148300878 | MF46-T45-4270 |
| 5530 | 18 1/7 | 46 | 1 4/ 5 | 66 | 4148300879 | MF46-T45-5530 |
| 6095 | 20 | 46 | 1 4/ 5 | 72.3 | 4148300880 | MF46-T45-6095 |
Application
• Underground mining
• Tunneling, quarrying
• Granite, Basalt, Limestone rock, etc.
Competitive Advantage
• High-grade raw material
• Manufactured from high-grade steel and processed using state-of-the-art CNC machinery
and heat treatment
• High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance.

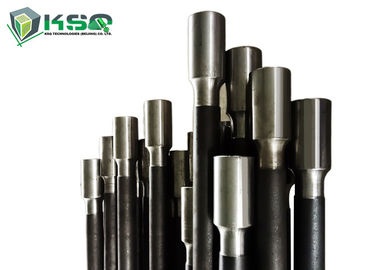

Product pictures
